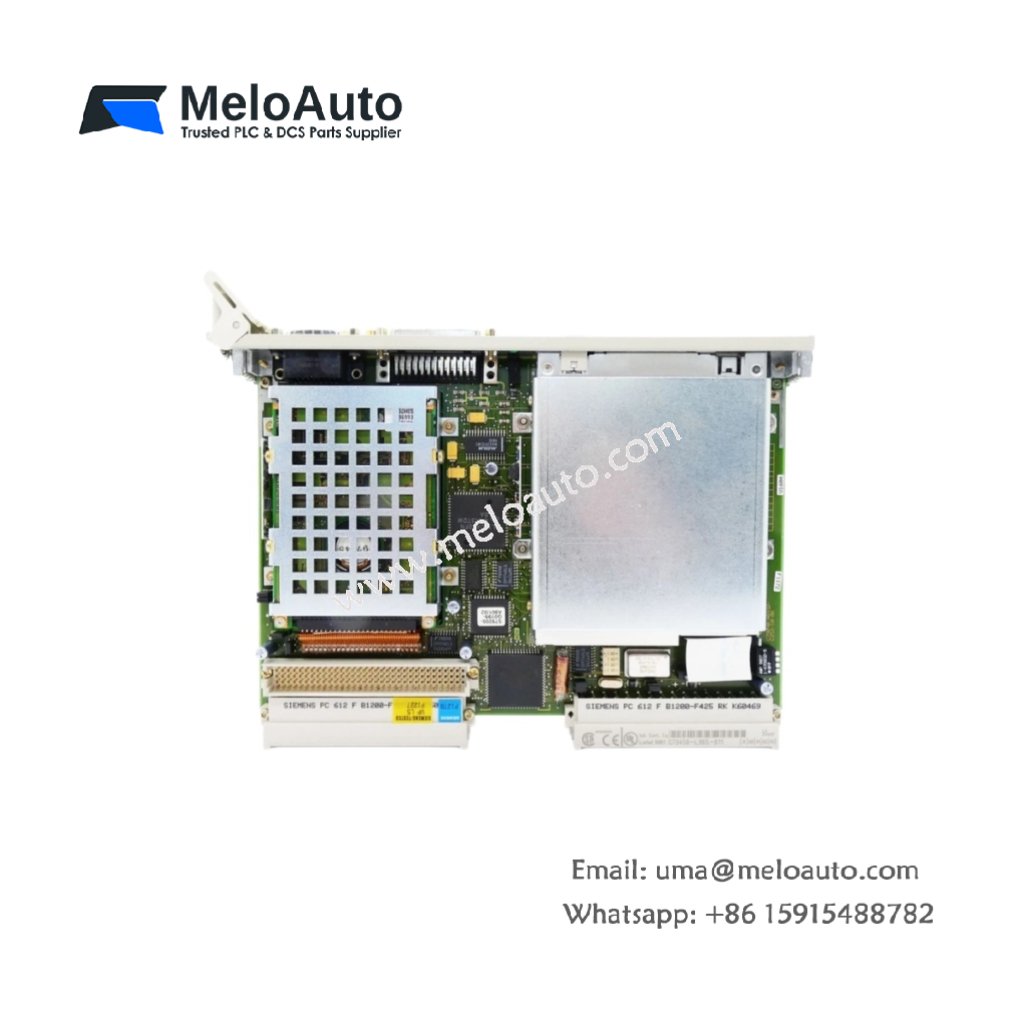

Siemens 6ES5581-1LA11 Mass Storage Module

Large-Capacity Data Archiving for S5 Systems

The Siemens 6ES5581-1LA11 mass storage module provides high-capacity data archiving for S5-135U and S5-155U controllers. This module stores large program files, recipe databases, and historical process logs. Industrial facilities require extensive data retention, and this unit fulfills that requirement effectively.

Storage Capacity and Media Technology

This mass storage module employs flash memory technology with a total capacity of 512 kilobytes. The module organizes storage into four 128-kilobyte partitions for flexible data management. An integrated controller handles wear leveling and bad block management automatically. Furthermore, the flash memory retains stored data for over 10 years without any battery backup.

Parameter	Specification
Model	Siemens 6ES5581-1LA11
Memory Type	Flash (NAND-based)
Total Capacity	512 KB
Partition Size	4 × 128 KB
Data Retention	> 10 years (no battery)
Write Cycles	> 100,000 per block
Access Time (read)	< 150 ns
Access Time (write)	< 10 µs
Interface	S5 backplane bus
Dimensions (W x H x D)	50 mm x 125 mm x 118 mm
Weight	0.40 kg
Power Consumption	5 V DC at 200 mA
Compatible CPUs	S5-135U, S5-155U

Data Management and File Organization

This module supports hierarchical file structures with up to 64 directories and 256 files. Users can store multiple program versions, machine configurations, and diagnostic logs simultaneously. An integrated file allocation table manages all read and write operations efficiently. Moreover, the module includes a built-in defragmentation utility that optimizes storage performance.

Operational Modes and Functionality

The Siemens 6ES5581-1LA11 operates in three distinct modes: archive, restore, and direct access. The archive mode copies complete CPU memory contents to the flash storage. Restore mode transfers stored data back to the CPU after maintenance or replacement. Direct access mode allows individual file retrieval without affecting the system memory.

Diagnostic Features and Status Indication

Three front-panel LEDs indicate power, activity, and error conditions for immediate status assessment. The module logs all read and write operations in an internal 256-entry history buffer. A built-in self-test routine verifies storage integrity during each system startup. The module also reports remaining free capacity and estimated wear status through the programming software.

Installation and Compatibility Guidelines

You can install this mass storage module in any S5-135U or S5-155U rack slot. The module requires no special drivers or configuration parameters for basic operation. Use the STEP 5 programming software to access all storage and retrieval functions. Always ensure adequate backplane power availability before installing this module. The unit operates reliably from 0°C to 60°C with standard cabinet ventilation.
