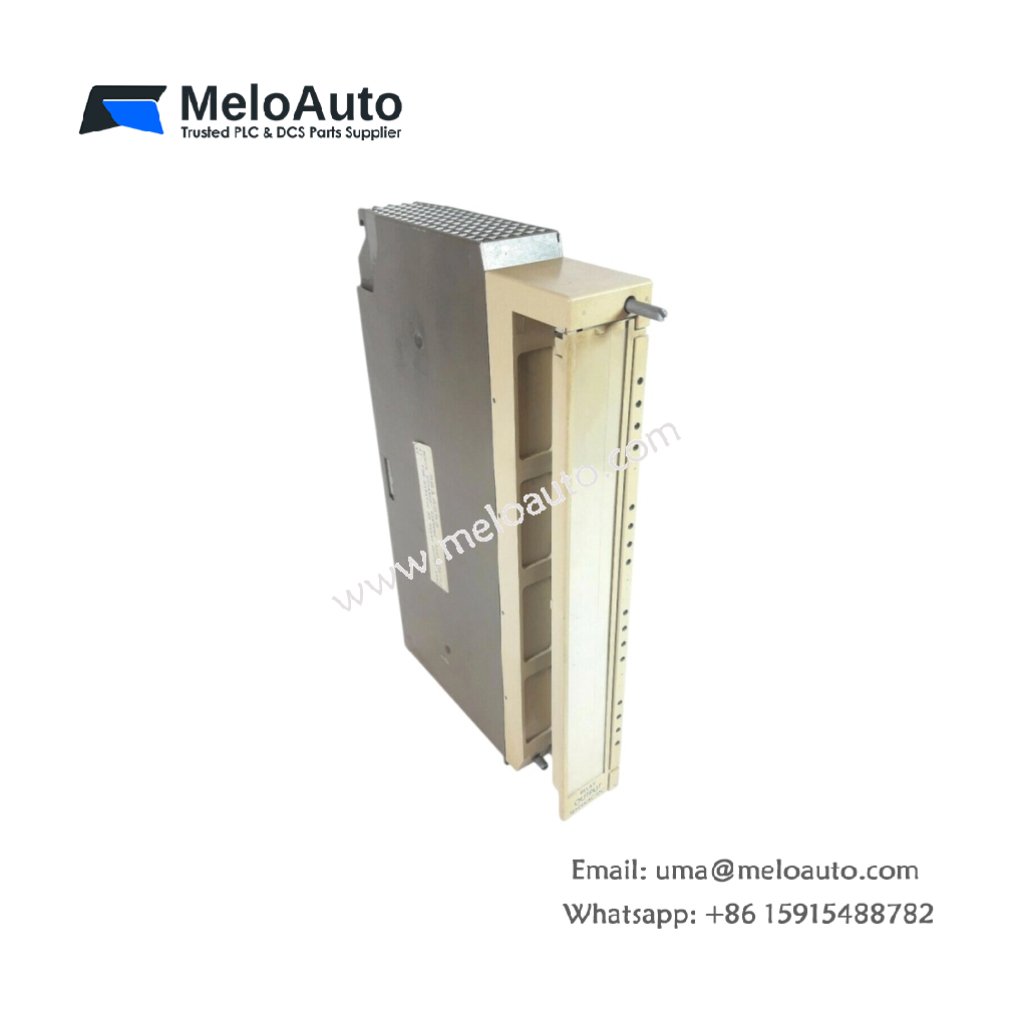

Siemens 6ES5581-0EE15 Basic Module

Flexible Logic and Communication Core for SIMATIC S5

The Siemens 6ES5581-0EE15 serves as a versatile basic module within the SIMATIC S5 programmable controller platform. This module combines logic processing capabilities with integrated communication interfaces for distributed control applications. Its compact housing measures 250 mm in height, 25 mm in width, and 160 mm in depth, fitting standard S5 rack slots. The total weight reaches approximately 0.6 kg, offering easy integration into existing control cabinets.

The module incorporates 4 KB of user memory and supports both analog and digital signal processing. The following table details the complete technical specifications for this basic module:

Parameter	Specification
Product Brand	Siemens
Product Model	6ES5581-0EE15
Product Category	Basic Module
Platform Compatibility	SIMATIC S5
User Memory	4 KB (RAM)
Programming Language	STEP 5 (Ladder, Statement List, CSF)
Digital Inputs	16 (24 V DC)
Digital Outputs	16 (24 V DC, 0.5 A)
Communication Interface	RS-485 (TTY compatible)
Dimensions (H x W x D)	250 mm x 25 mm x 160 mm
Weight	0.6 kg
Supply Voltage	5 V DC (from backplane), 24 V DC (field)
Power Consumption	4.5 W typical
Programming Port	15-pin D-sub
Operating Temperature	0°C to +60°C
Storage Temperature	-40°C to +85°C
Isolation Voltage	1500 V AC (logic-to-I/O)

Integrated I/O and Logic Processing

The 6ES5581-0EE15 offers 16 digital input channels and 16 digital output channels for direct device connection. Each output channel handles continuous currents up to 0.5 A for driving relays and indicators. The module executes STEP 5 programs, supporting Ladder, Statement List, and CSF formats. This flexibility lets engineers program the module using their preferred language for efficient development.

Communication and Networking Capabilities

An integrated RS-485 interface supports TTY-compatible communication with programming devices and HMIs. This port enables program uploads, downloads, and real-time monitoring during system commissioning. The module also networks with other S5 modules through the backplane bus. Such connectivity facilitates distributed control architectures across multiple racks and stations.

Memory Architecture and Data Retention

4 KB of user memory stores logic programs, timers, counters, and system parameters. The module relies on capacitor-based backup to retain data during brief power interruptions. This retention protects ongoing processes from losing critical operational values. Engineers can therefore deploy the module in applications requiring moderate program complexity with reliable memory preservation.
