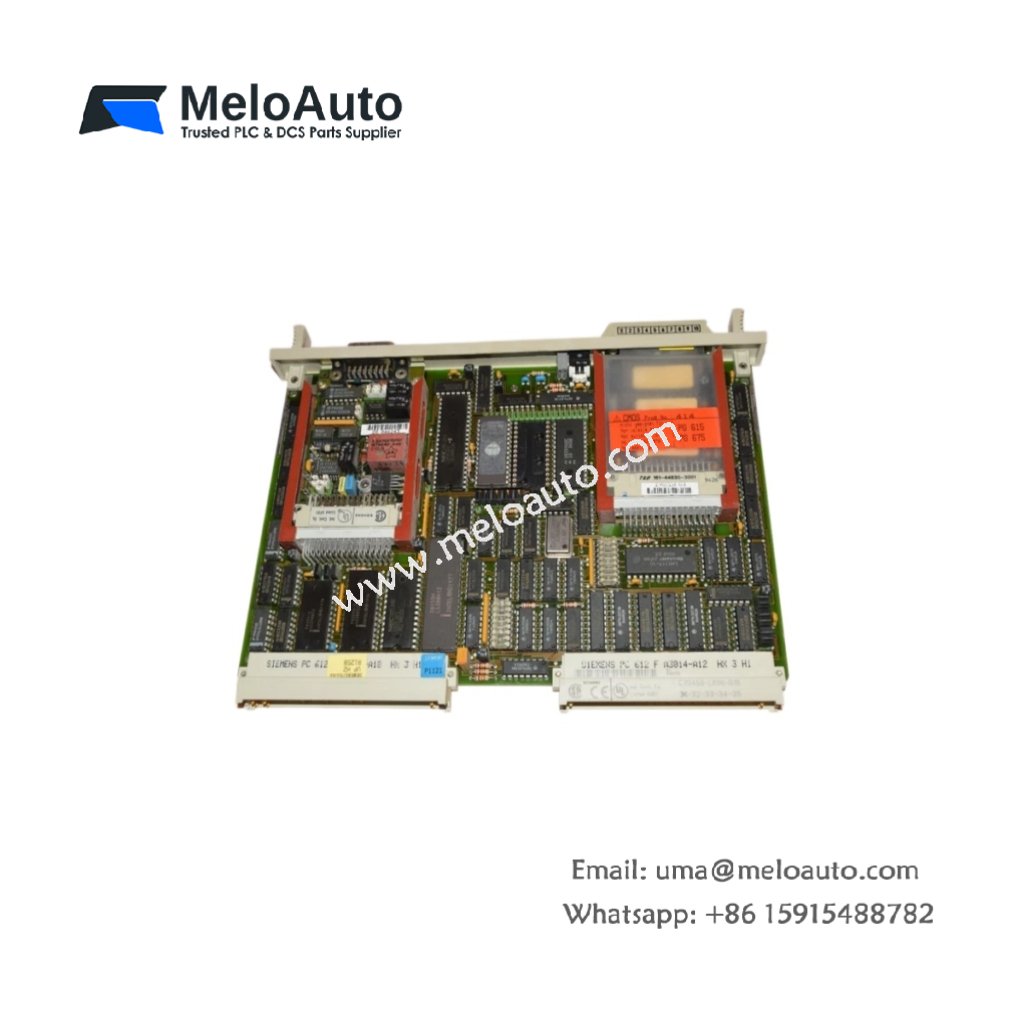

Siemens 6ES5524-3UA13 Communications Processor

High-Performance Network Interface for SIMATIC S5 Systems

The Siemens 6ES5524-3UA13 communications processor enables seamless data exchange between SIMATIC S5 controllers and industrial networks. This module supports the SINEC H1 (Ethernet) protocol for high-speed communication in distributed automation architectures. It functions as a powerful gateway for connecting S5 systems to higher-level host computers and supervisory control platforms.

Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model	6ES5524-3UA13
Series	SIMATIC S5
Product Type	Communications Processor (CP 524)
Protocol	SINEC H1 (Ethernet)
Network Role	Active station
Interface	Ethernet (AUI)
Data Transfer Rate	10 Mbps
Number of Connections	Up to 8 simultaneous
Transport Protocol	ISO/OSI Layer 4
Application Support	Fetch/Write, Data Exchange, Remote Programming
Power Supply	5V DC via backplane bus
Current Consumption	5V DC / 800mA (max)
Weight	0.6 kg
Dimensions (W x H x D)	25 x 120 x 116.4 mm
Operating Temperature	0°C to 60°C
Protection Rating	IP20

High-Speed Network Connectivity

The Siemens 6ES5524-3UA13 connects S5 controllers to SINEC H1 Ethernet networks at 10 Mbps for fast data exchange. This speed supports real-time data transfer with host computers and SCADA systems. The AUI interface provides standard Ethernet connectivity using compatible transceivers.

Multi-Connection and Application Support

This module manages up to eight simultaneous connections for communication with multiple remote devices. It supports Fetch/Write commands, data exchange, and remote programming applications. These functions enable comprehensive system integration, from supervisory monitoring to remote program maintenance.

Enhanced Data Management

The communications processor manages protocol overhead and data buffering, reducing CPU processing load. It handles large data blocks efficiently for applications requiring bulk data transfer. This offloading allows the S5 CPU to focus on core control tasks.

Application Scenarios

This module suits applications requiring integration with enterprise-level systems, including MES and SCADA. It enables data collection, centralized monitoring, and remote diagnostics in factory automation. The robust design ensures reliable operation in demanding industrial network environments.
