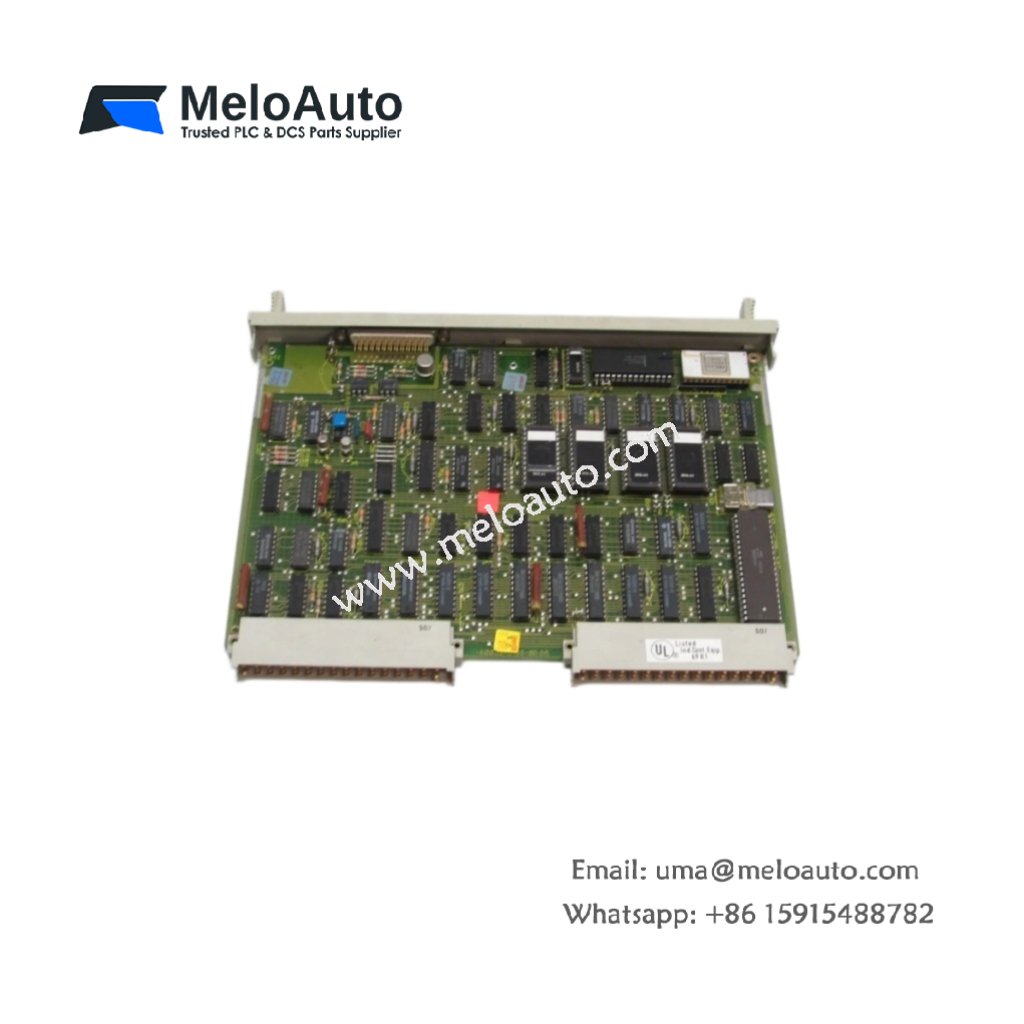

Siemens 6ES5511-5AA12 Interface Module

Product Overview

The Siemens 6ES5511-5AA12 interface module establishes a communication link between SIMATIC S5 controllers and external programming devices. This unit manages data exchange during program uploads, downloads, and system diagnostics. It fits directly into standard S5 rack slots. The module features a 15-pin D-sub connector for straightforward cable connections.

Technical Specifications

Parameter	Specification
Model Number	6ES5511-5AA12
Product Type	Interface Module
Brand	Siemens
Category	PLC Interface Modules
Compatibility	SIMATIC S5 Series
Connection Type	15-pin D-sub connector
Data Transfer	Programming and diagnostics
Weight	Approximately 0.25 kg
Dimensions	233 mm x 25 mm x 158 mm (H x W x D)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Protection Class	IP20

Key Features and Benefits

Reliable Programming Access
The 6ES5511-5AA12 provides a stable connection for programming devices and operator interfaces. This module supports essential communication for system configuration. Engineers can easily perform program modifications and troubleshooting tasks.

Efficient Data Exchange
The interface facilitates rapid data transfer between the CPU and external devices. This efficiency minimizes waiting times during program uploads and downloads. Users benefit from shorter commissioning and maintenance periods.

Robust Industrial Design
This interface module features rugged construction for factory-floor reliability. It operates consistently across a temperature range from 0°C to 60°C. This durability ensures dependable performance in demanding environments.

Application and Use Cases

The Siemens 6ES5511-5AA12 serves as a connection point for programming terminals and HMIs. It also enables remote diagnostics through external communication adapters. Maintenance engineers will find this module essential for S5 system support and upkeep.
