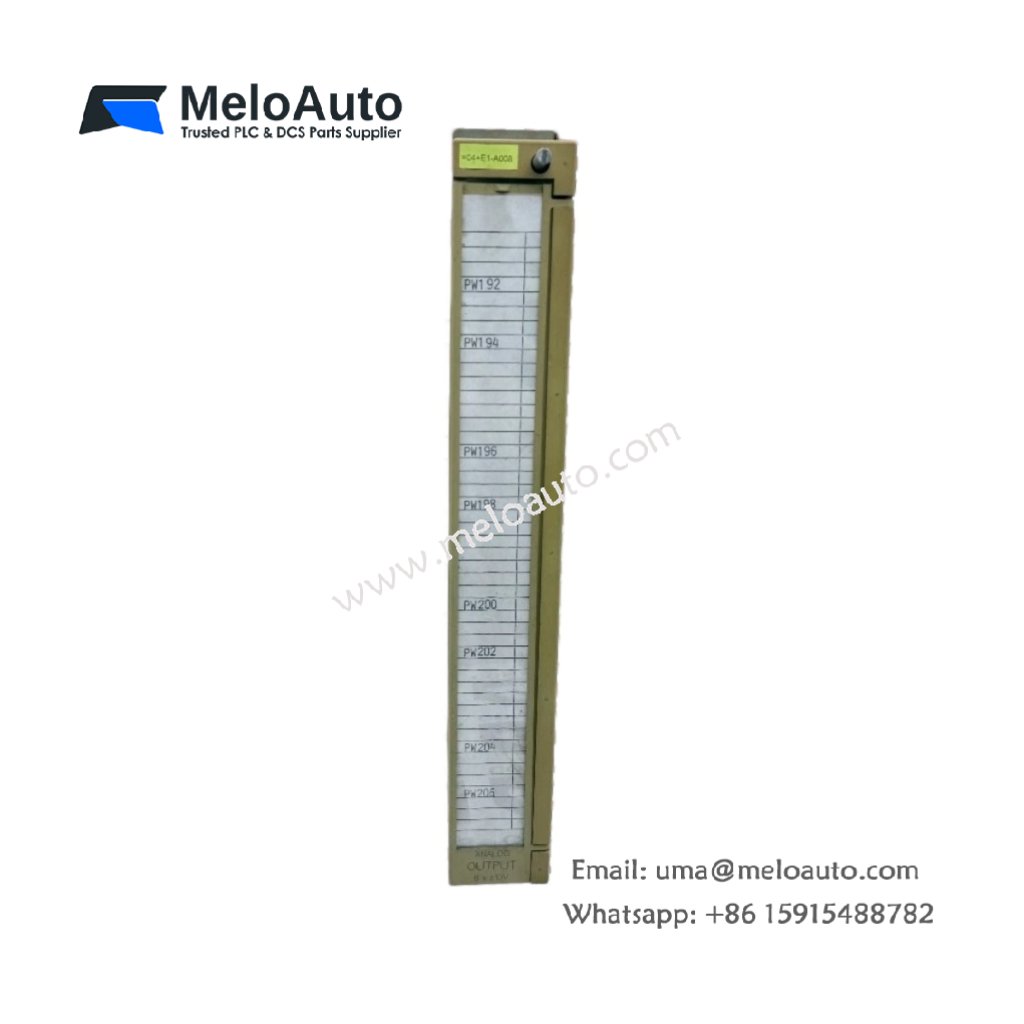

Siemens 6ES5470-7LC13 Analog Output Module

Core Analog Signal Generation for S5 Systems

The Siemens 6ES5470-7LC13 is an analog output module for the SIMATIC S5-115U/F programmable logic controller family . This module converts digital control signals into precise analog voltage or current outputs for field devices. It provides eight independent output channels for controlling actuators, valves, and other analog equipment . Consequently, it is essential for continuous process control in legacy S5-based automation systems.

Output Range and Application Flexibility

This module supports configurable output signals of ±10V or 4-20mA, enabling versatile connections to various industrial field devices . Its output accuracy reaches 0.1% for reliable process control . The 6ES5470-7LC13 operates on a 24V DC power supply and functions in temperatures from -25°C to +70°C . Furthermore, its IP20 protection rating suits standard industrial cabinet installations .

Technical Specifications and System Compatibility

Engineers designed this module for the S5-115U/F medium-performance PLC systems . Its compact form factor and approximately 0.5kg weight facilitate straightforward installation in S5 racks . The following table details its key functional and electrical parameters.

Parameter	Specification
Manufacturer / Series	Siemens / SIMATIC S5-115U/F
Product Model	6ES5470-7LC13
Module Type	Analog Output Module
Number of Channels	8
Output Range	±10V or 4-20mA
Output Accuracy	0.1%
Operating Voltage	24V DC
Operating Temperature	-25°C to +70°C
Protection Rating	IP20
Weight	approx. 0.5 kg

Application in Legacy S5 System Support

Plant engineers rely on this module to maintain critical analog control loops in older production systems. Its robust design is tailored for harsh industrial conditions . The Siemens 6ES5470-7LC13 enables continued operation of reliable legacy S5 infrastructure. Therefore, sourcing tested units from specialized suppliers is crucial for lifecycle management of classic Siemens automation platforms.
