Core Analog Signal Generation for S5 Systems

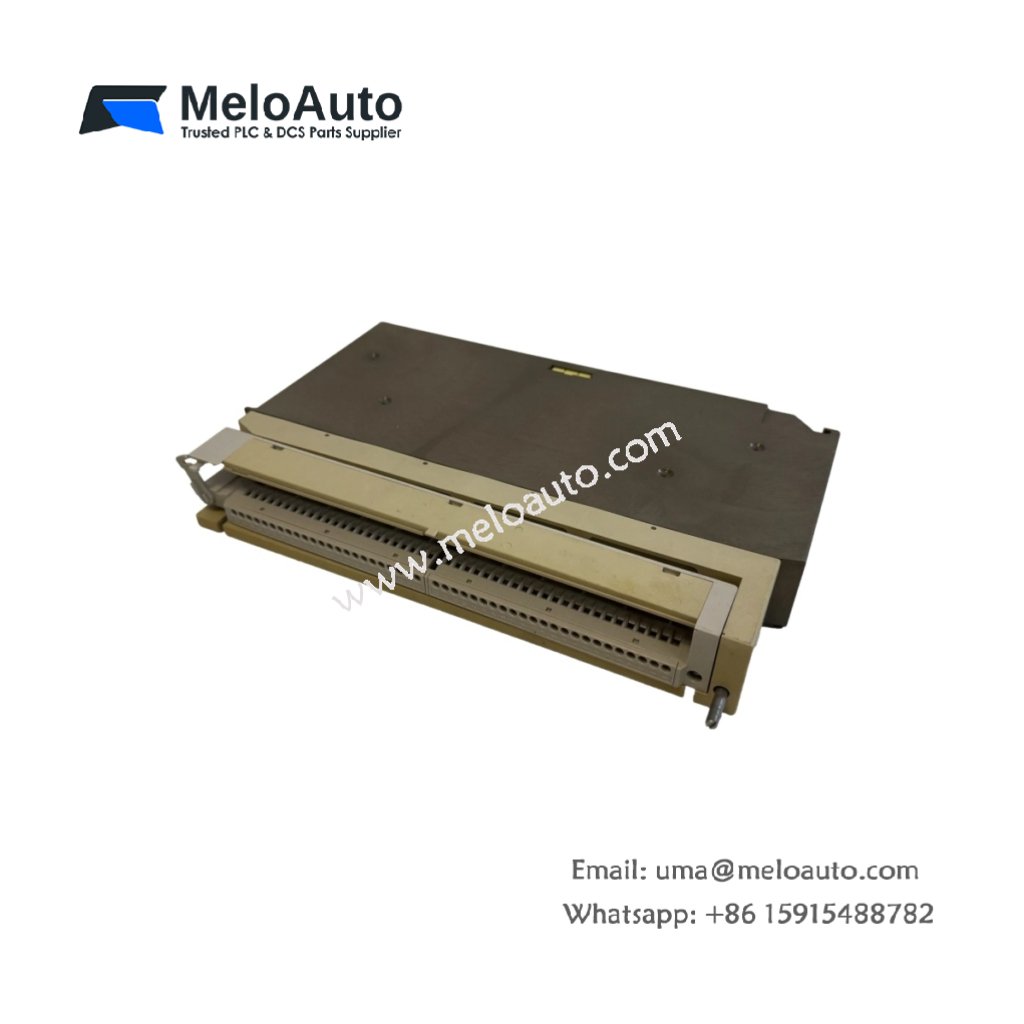

The Siemens 6ES5470-7LC12 is an analog output module for the SIMATIC S5-115U/F programmable logic controller family . This module converts digital control signals from the CPU into precise analog voltage or current outputs for field devices. It features eight independent output channels, making it suitable for applications requiring multiple control signals . Consequently, it is essential for continuous process control in legacy S5-based automation systems.
Output Ranges and System Compatibility
This module supports various output signal ranges, including ±10V, 1-5V, and 4-20mA, enabling versatile connections to actuators, valves, and other analog equipment . It operates on a 24V DC power supply and functions reliably in temperatures from -25°C to +60°C . Furthermore, its IP20 protection rating suits standard industrial cabinet installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer / Series | Siemens / SIMATIC S5-115U/F |
| Product Model | 6ES5470-7LC12 |
| Module Type | Analog Output Module |
| Number of Channels | 8 |
| Output Ranges | ±10V, 1-5V, 4-20mA |
| Operating Voltage | 24V DC |
| Operating Temperature | -25°C to +60°C |
| Protection Rating | IP20 |
| Weight | approx. 0.5 kg |
Application in Legacy S5 System Support
Plant engineers rely on this module to maintain critical analog control loops in older production systems. It is particularly valuable in industries like automotive, food processing, and manufacturing where S5 controllers remain in daily use . The Siemens 6ES5470-7LC12 enables continued operation of reliable legacy S5 infrastructure without requiring costly full-system upgrades. Therefore, sourcing tested units from specialized suppliers is crucial for lifecycle management of classic Siemens automation platforms.
