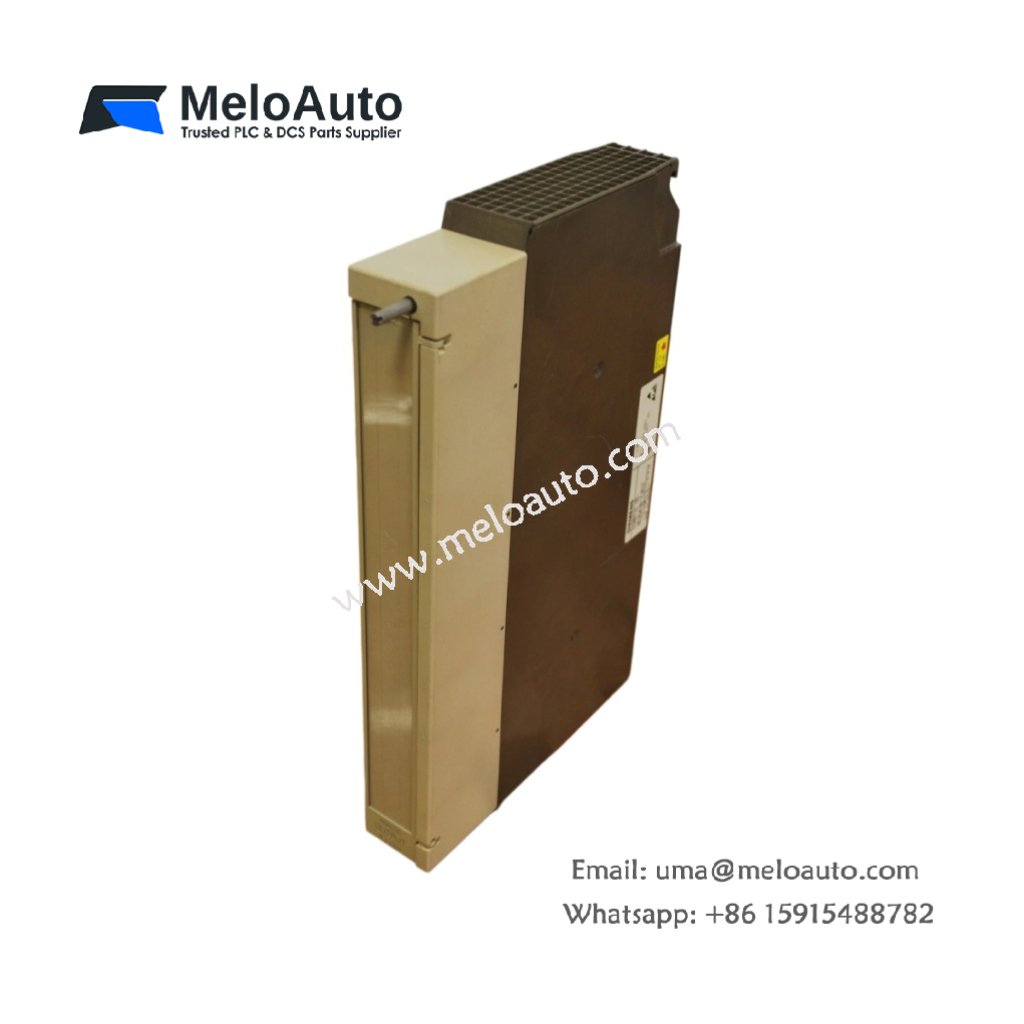

Siemens 6ES5470-7LB12: High-Density Analog Output Module for S5 Systems

Meet the Siemens 6ES5470-7LB12, a versatile analog output module from the SIMATIC S5 family. This unit provides multiple channels to generate precise command signals for actuators in process control. Moreover, its design ensures reliable conversion of digital controller values into stable analog outputs. Consequently, it is essential for controlling devices like control valves, variable-speed drives, and analog displays.

Detailed Technical Specifications

The 6ES5470-7LB12 module delivers accurate analog signal generation with industrial robustness. Below are its key technical parameters for system integration and application planning.

Core Functionality and Application

This module converts digital setpoints from the S5 CPU into precise analog voltage or current signals. Therefore, it enables proportional control of final elements in loops for pressure, flow, temperature, or level. Additionally, its multi-channel capability allows control of several actuators from a single module slot.

The module typically offers configurable output ranges and may include channel isolation. Furthermore, for a complete and protected control loop, ensure proper safeguarding of all components. For instance, a RMS-TSG-TZ-C Static Trip device can protect the power supply lines for both the module and its connected actuators.

Engineered for Precise and Stable Process Control

Choosing the Siemens 6ES5470-7LB12 ensures reliable analog output performance for your S5 automation system. Its industrial-grade construction guarantees stable operation in environments with electrical noise and vibration. Ultimately, this module is a key component for implementing accurate and responsive continuous control strategies in your process.
