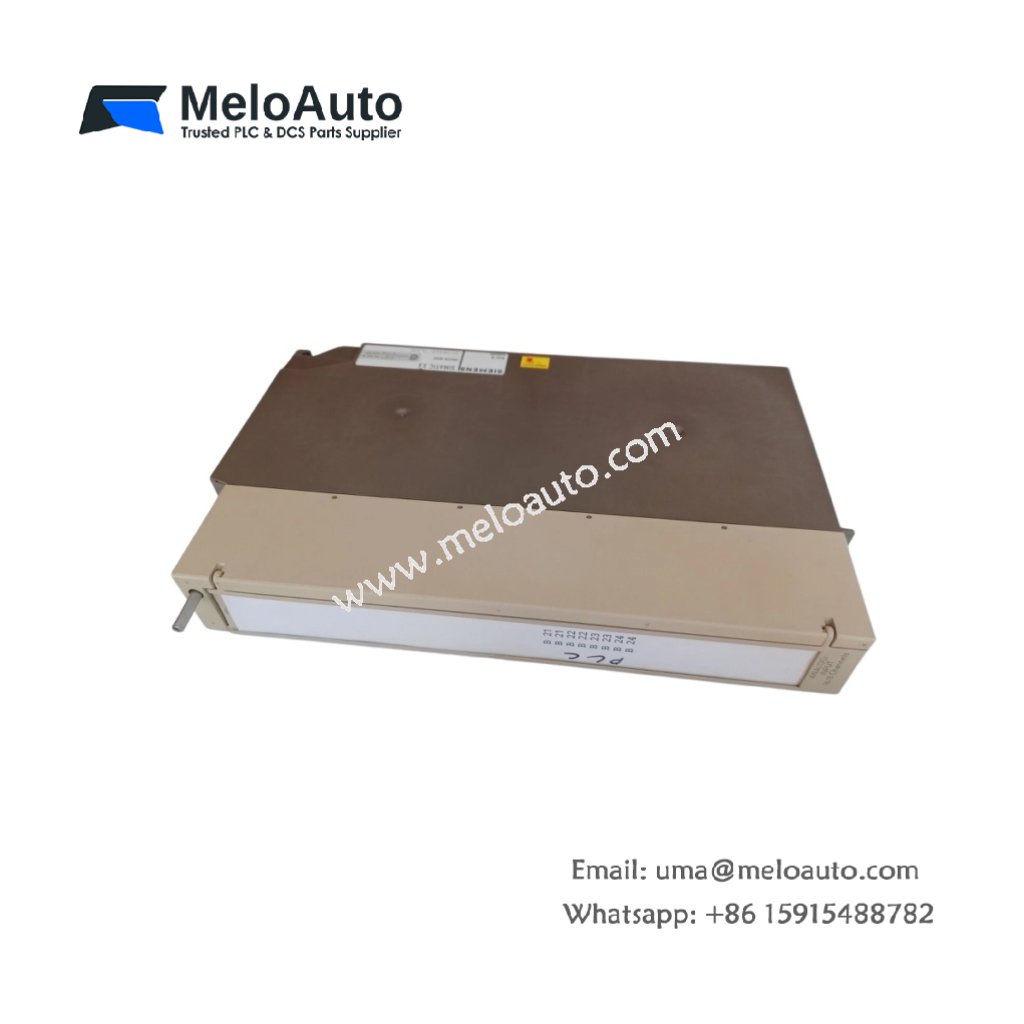

Siemens 6ES5465-7LA12 Analog Input Module

This analog input module captures analog signals for SIMATIC S5 automation systems. The Siemens 6ES5465-7LA12 belongs to the 465 series with sixteen non-floating input channels. Its robust design ensures accurate signal acquisition in demanding industrial environments.

Key Technical Specifications

High-Density Analog Acquisition

The Siemens 6ES5465-7LA12 provides sixteen analog input channels for connecting field sensors. Each channel accepts standard voltage and current signals for process monitoring. Furthermore, the module delivers accurate conversion for precise measurement applications. Engineers can configure the unit to match specific signal ranges and scaling requirements.

The internal circuitry includes filtering to reject electrical noise from industrial environments. This filtering ensures stable readings without compromising response time. Additionally, the Siemens 6ES5465-7LA12 features non-floating design for specific system configurations. The module integrates directly with the system reference potential for consistent performance.

Robust Physical Construction

This analog input module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.72 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, status indicators provide visual confirmation of power presence and channel activity. Operators can verify proper operation without using diagnostic tools.

System Integration and Application

The Siemens 6ES5465-7LA12 integrates seamlessly with SIMATIC S5 programmable controllers. This module mounts into standard S5 racks alongside CPU, digital, and other analog modules. Its sixteen-channel configuration suits applications requiring high-density analog monitoring. Industries such as chemical processing, power generation, water treatment, and manufacturing frequently deploy this analog input module for reliable signal acquisition.
