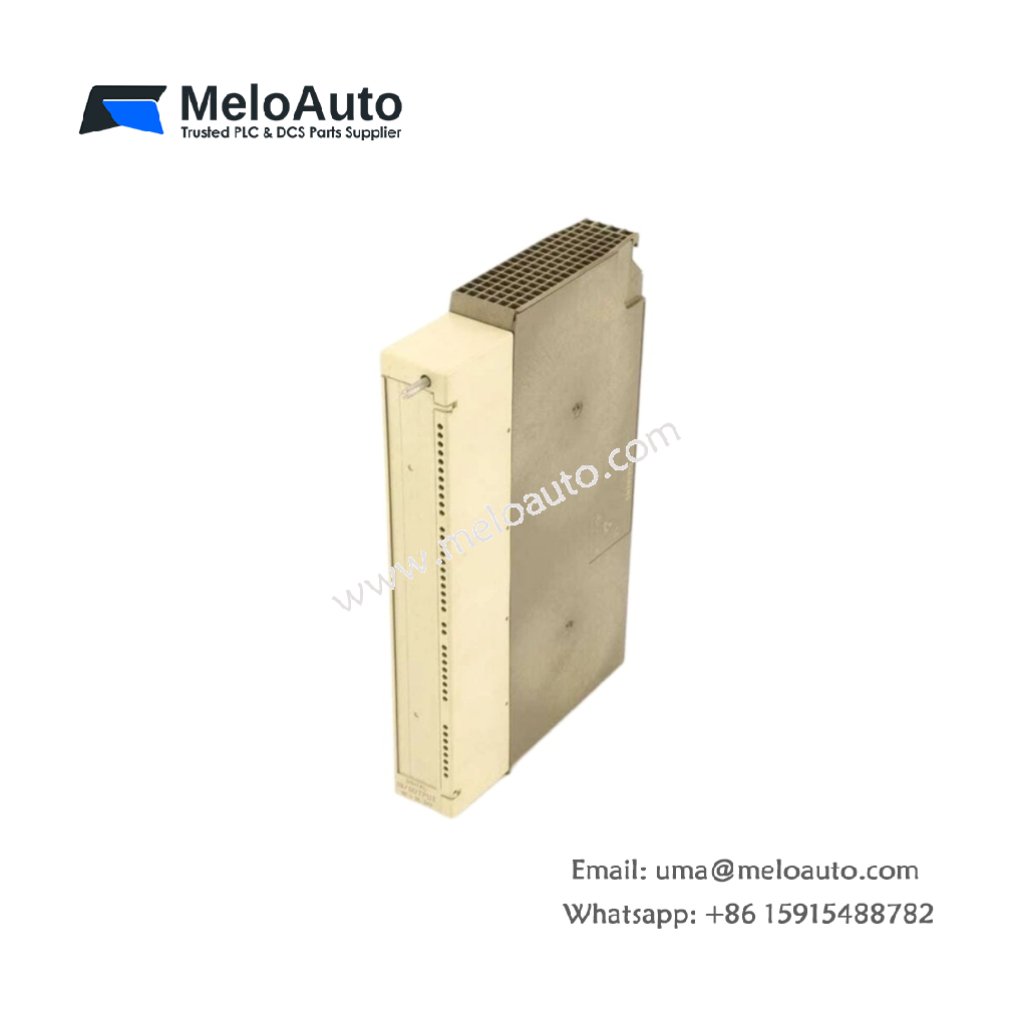

Siemens 6ES5451-7LA21 Digital Output Module

This digital output module provides reliable switching for SIMATIC S5 automation systems. The Siemens 6ES5451-7LA21 delivers multiple discrete output channels with robust isolation. Its compact design ensures efficient integration into standard S5 racks.

Key Technical Specifications

Reliable Digital Output Control

The Siemens 6ES5451-7LA21 provides sixteen output channels for controlling field devices. Each channel delivers 24V DC transistor switching for solenoids, relays, and indicator lamps. Furthermore, the module features optical isolation between the logic side and output circuits. This isolation protects the controller from electrical noise and transient surges.

Engineers will find the terminal layout intuitive for wiring and maintenance tasks. The module uses screw-type terminals that accept standard gauge wires securely. Additionally, the internal design minimizes power dissipation across the output transistors. This efficiency extends operational life and reduces cabinet cooling requirements.

Robust Physical Construction

This digital output module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.62 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, status indicators provide visual confirmation of power presence and channel activity. Operators can verify output states without using diagnostic tools.

System Integration and Application

The Siemens 6ES5451-7LA21 integrates seamlessly with SIMATIC S5 programmable controllers. This module mounts into standard S5 racks alongside CPU, input, and other output modules. Its sixteen-channel configuration suits applications requiring moderate output density. Industries such as automotive manufacturing, packaging machinery, and material handling frequently deploy this digital output module for reliable field device control.
