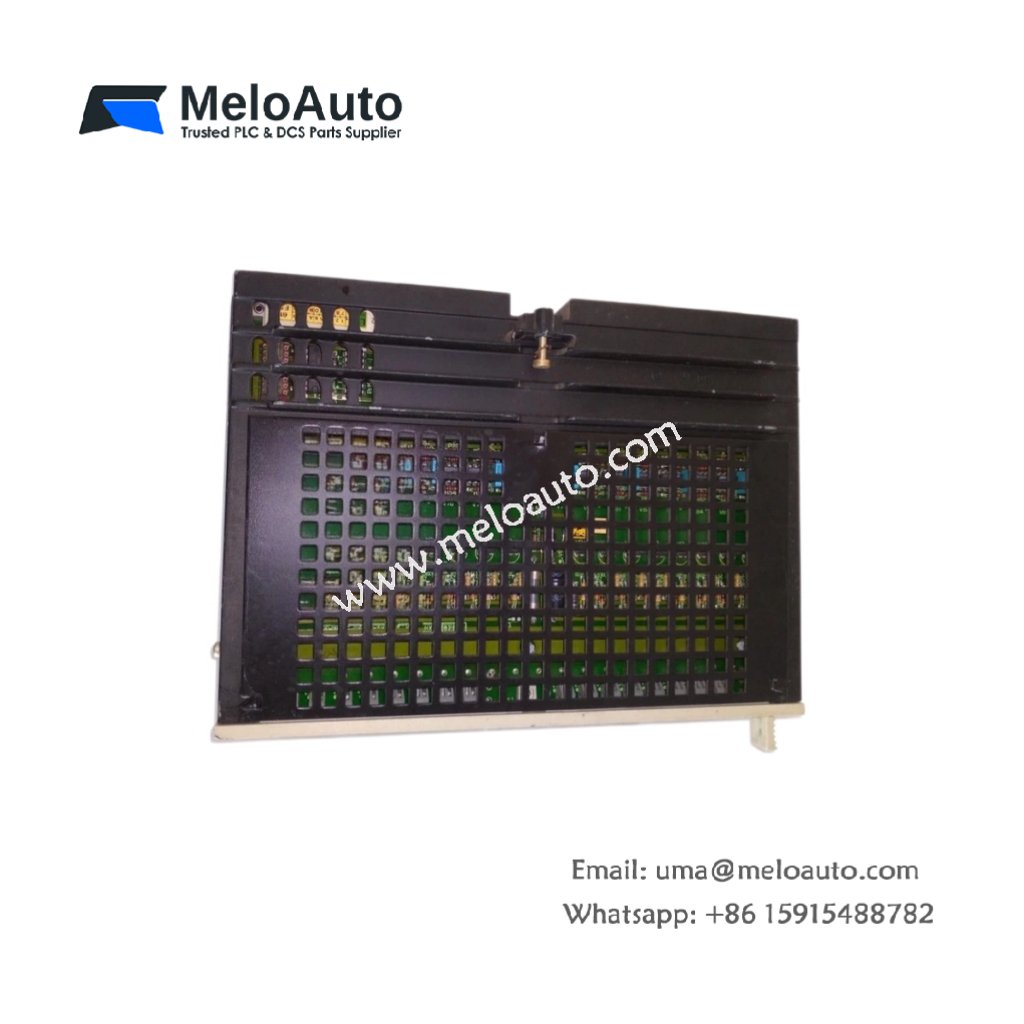

Siemens 6ES5451-5AA13 Digital Output Module

Industrial control systems require reliable output modules for actuator and indicator control. The Siemens 6ES5451-5AA13 digital output module delivers this essential functionality for SIMATIC S5 systems. This module provides discrete output signals to field devices such as contactors and solenoids. It interfaces directly with the system backplane for seamless integration.

Technical Architecture and Specifications

This output module features a standard SIMATIC S5 form factor for rack mounting. Its dimensions measure 25.3 cm in width and 22.5 cm in height. The Siemens 6ES5451-5AA13 weighs approximately 1.0 kilograms for secure installation. It interfaces with the system backplane via a 48-pin card-edge connector. This connector provides power and communication to the output circuits.

The internal assembly contains a single integrated circuit board with all output channels. Engineers will note the grouping of outputs for simplified field wiring. The module draws 5 V DC power from the backplane for its logic circuits. It also requires 24 V DC external power for output switching operation.

Output Characteristics

The Siemens 6ES5451-5AA13 provides 16 discrete output channels for field device control. Each channel delivers 24 V DC at 0.5 amperes continuous output current. For field connections, it utilizes screw terminal blocks that accept AWG 14 to 22 gauge conductors. Status indicators display the on-off state for each output channel clearly. The module also includes short-circuit protection for each individual output. You can explore similar industrial output solutions here for reference.

Specification	Detail
Model	6ES5451-5AA13
Manufacturer	Siemens
Product Line	SIMATIC S5
Dimensions (W x H)	25.3 cm x 22.5 cm
Weight	1.0 kg
Output Channels	16 Discrete Outputs
Output Voltage	24 V DC
Output Current	0.5 A per Channel
Protection	Short-Circuit per Channel
Backplane Power	5 V DC
External Power	24 V DC
Terminal Type	Screw Clamp (AWG 14-22)

System Integration and Reliability

The Siemens 6ES5451-5AA13 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 60°C. Short-circuit protection safeguards both the module and connected devices from damage. These protection circuits automatically reset after fault conditions clear. Maintenance personnel can diagnose output status through front-panel LED indicators. The module supports simple replacement for reduced system downtime.
