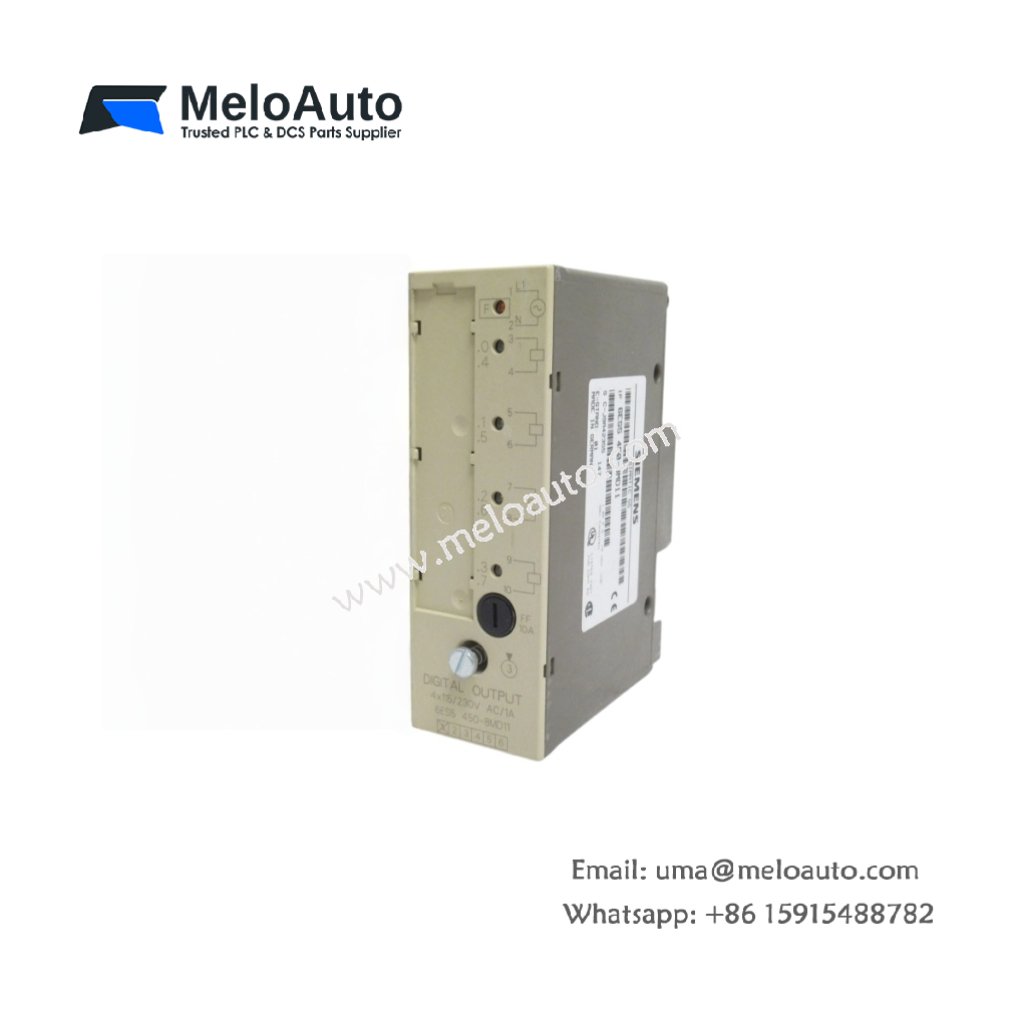

Siemens 6ES5450-8MD11 Digital Output Module

The Siemens 6ES5450-8MD11 Digital Output Module is designed for robust performance in industrial automation systems. It offers versatile output options, galvanic isolation, and precise signal control. This module efficiently manages a wide range of loads, ensuring stable operation even under challenging conditions. With features like short-circuit protection, high switching frequency, and wide voltage ranges, the 6ES5450-8MD11 meets the demanding requirements of modern control systems.

Key Features of the Siemens 6ES5450-8MD11 Digital Output Module

Galvanic Isolation: The module provides galvanic isolation in groups, ensuring that the digital output signals are electrically separated for enhanced safety and signal integrity.
Wide Voltage Range: The 6ES5450-8MD11 operates with input voltages ranging from 115 to 230 VAC, ensuring compatibility with various systems.
High Switching Frequency: The module supports a maximum switching frequency of 10 Hz, allowing for quick and efficient control of connected devices.
Short-Circuit Protection: The module includes built-in short-circuit protection, safeguarding your system from damage during fault conditions.
Signal Status Display: Green LEDs indicate the status of the output signals, providing real-time monitoring for operators.

Technical Specifications

Specification	Details
Model	6ES5450-8MD11
Type	Digital Output Module
Number of Outputs	8
Galvanic Isolation	Yes, in groups
Load Voltage (L1-rated value)	115 to 230 VAC
Frequency (permissible range)	47 to 63 Hz
Output Current for “1” Signal	0.5 A (rated value)
Output Current Permissible Range	50 mA to 0.5 A
Lamp Load (max.)	25/50 W
Contact Current Closing Rating	Determined by fuse size
Residual Current at “0” Signal	3/5 mA
Output Voltage at “1” Signal	L1 (-7V), only with load connected
Signal Status Display	Green LEDs
Short-Circuit Protection	Yes
Switching Frequency (max.)	10 Hz
Permissible Current of All Outputs	4 A
Driving of Digital Input	Yes (optocoupler)
Paralleling of Outputs	Not possible
Fuse Type	10 A extra fast fuse (Wickmann No. 19231 or 6ES5 980-3BC41)

Advantages of the Siemens 6ES5450-8MD11 Digital Output Module

Flexible Voltage Range: The 6ES5450-8MD11 supports a wide input voltage range, making it compatible with various industrial systems that require reliable output control.
Efficient Signal Management: With galvanic isolation and optocoupler support, this module ensures precise and secure signal transmission for your automation systems.
Built-in Protection: The short-circuit protection and fuse support prevent system damage, ensuring the safety and longevity of your control system.
High Switching Frequency: The module’s ability to switch at up to 10 Hz allows for fast response times in controlling connected devices, ideal for high-speed industrial applications.

Conclusion

The Siemens 6ES5450-8MD11 Digital Output Module offers exceptional flexibility, reliability, and performance. With its wide voltage range, galvanic isolation, and efficient control of output signals, it is a critical component for automation systems in demanding industrial environments. Designed for easy integration, high switching frequencies, and long-term durability, this module enhances your system’s operational efficiency and safety.
