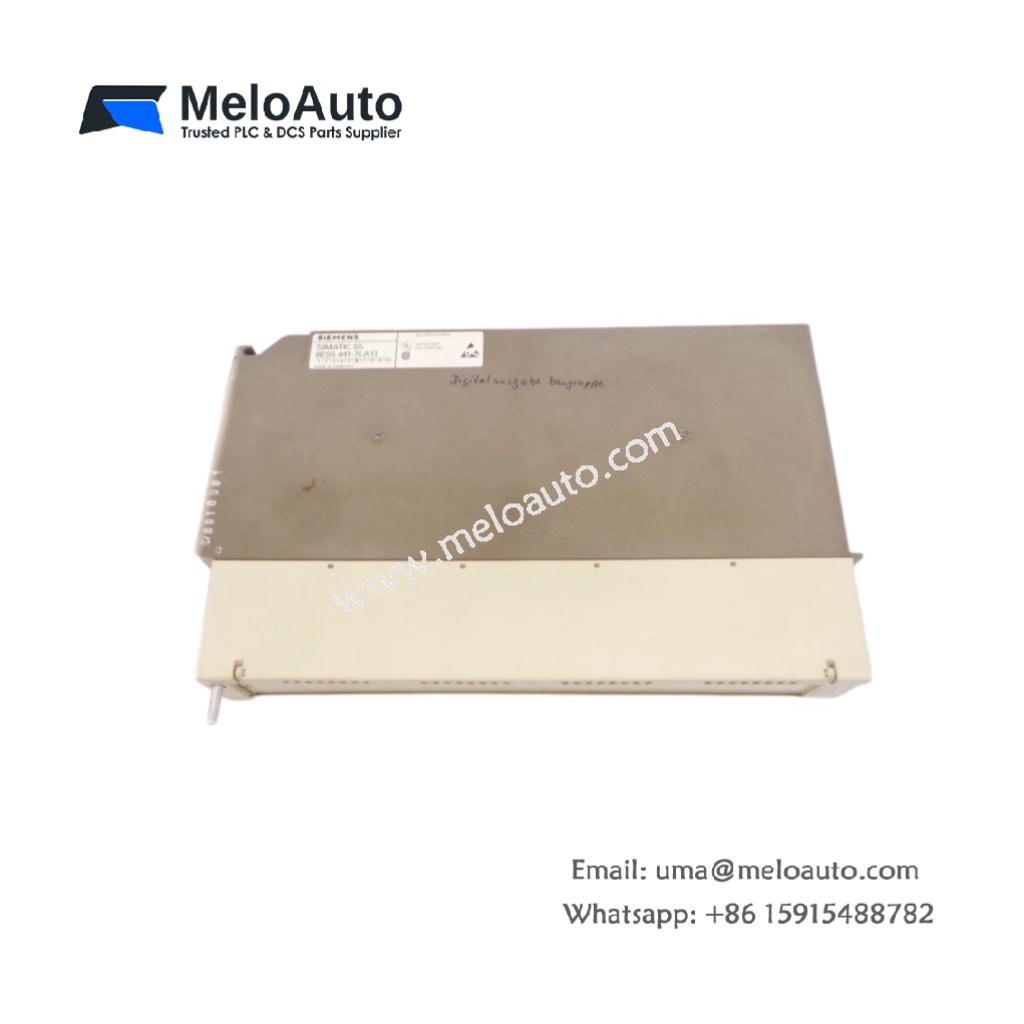

Siemens 6ES5441-7LA11 – Digital Output Module for High-Voltage Loads

The Siemens 6ES5441-7LA11 switches AC loads like contactors, valves, and heaters in automation systems. This output module measures 250 mm in depth and 25 mm in width. It fits standard SIMATIC S5 rack slots without any modifications. The unit weighs 0.52 kg, making installation quick and straightforward.

Channel Configuration and Output Specifications

This digital output module provides 8 independent output channels on its front panel. The Siemens 6ES5441-7LA11 switches loads from 24V AC up to 230V AC. Each channel handles 2 amps of continuous current without external cooling. The total current across all channels must not exceed 8 amps. Each output uses a triac switching element for AC load control.

Switching Technology and Response Time

The module uses optically isolated triacs for each output channel. The Siemens 6ES5441-7LA11 turns outputs on within 1 millisecond of receiving a command. It turns outputs off at the next zero crossing of the AC waveform. This zero-crossing switching reduces electrical noise and extends load life. Each channel includes snubber circuits for inductive load protection.

Internal Architecture and Component Layout

The module contains two separate circuit boards inside its plastic housing. One board handles logic interfacing, while the other manages output switching. The Siemens 6ES5441-7LA11 includes 8 LED indicators for individual channel status. A 48-pin edge connector interfaces with the S5 backplane for power and data. The module stores 47 µF of capacitance for power supply filtering only.

Power Requirements and Environmental Tolerance

The Siemens 6ES5441-7LA11 draws 100 mA at 5V DC from the backplane supply. It requires no external 24V DC power for its output circuits. The module operates reliably from 0°C to 60°C ambient temperature. It tolerates humidity levels up to 95 percent without any condensation issues. The unit withstands vibration up to 2g from 10 to 500 Hz.

Below is a complete summary of its technical specifications.

The Siemens 6ES5441-7LA11 replaces older AC output modules in SIMATIC S5 systems. You do not need any rewiring or configuration changes during replacement. This module also supports hot-swapping in compatible rack configurations. Consequently, it controls AC actuators reliably in HVAC and pump control applications.
