Siemens 6ES5380-8MA11 Timer Module | SIMATIC S5 2-Channel

Technical Specifications and Functional Overview

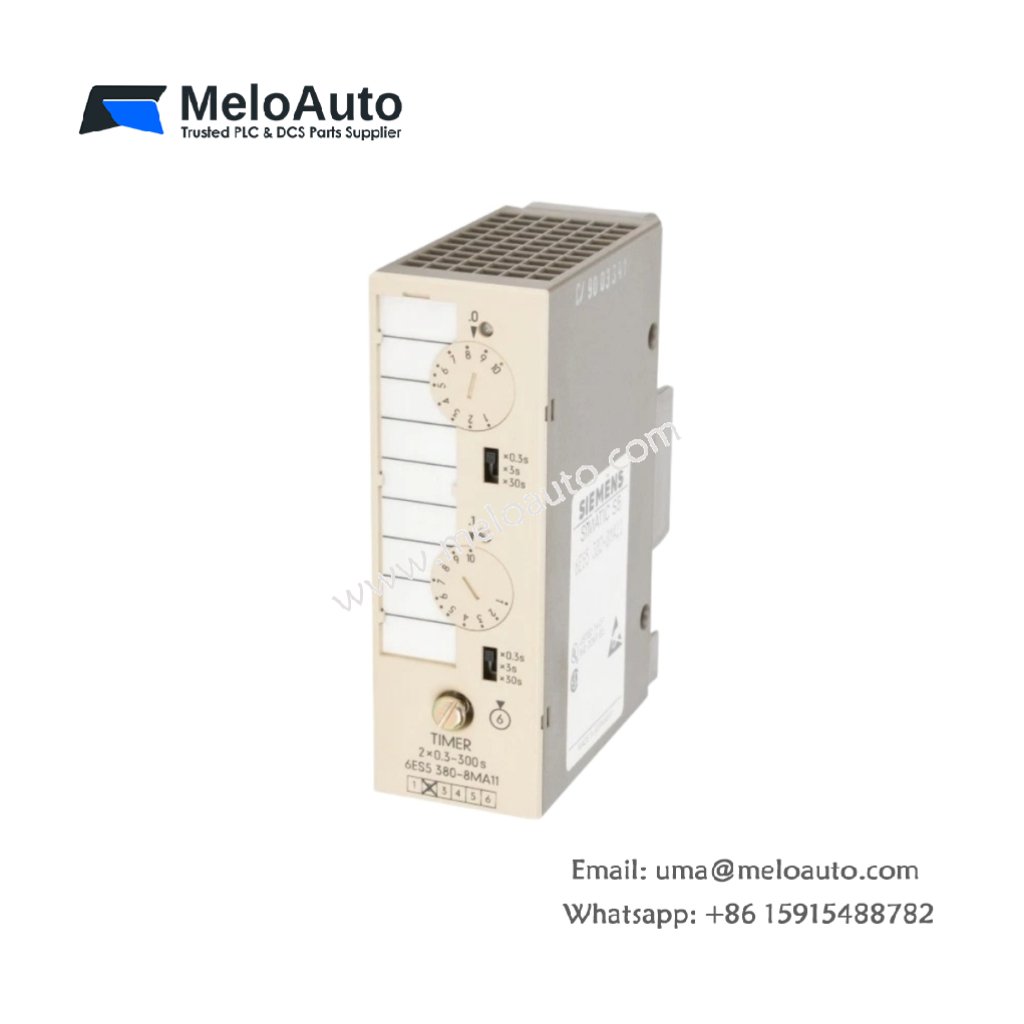

The Siemens 6ES5380-8MA11 timer module belongs to the SIMATIC S5 product family. This module provides two independent timing channels for precise time management in automation systems . Each channel offers an adjustable timing range from 0.3 to 300 seconds using front-panel potentiometers . The module measures approximately 14.2 cm x 11.4 cm x 5.2 cm and weighs about 0.23 kg . It connects to the system via a terminal block interface.

Parameter	Specification
Manufacturer	Siemens
Model Number	6ES5380-8MA11
Product Family	SIMATIC S5
Compatible PLCs	S5-90U, S5-95U, S5-100U, ET 100U, ET 200U
Timing Elements	2 independent channels
Timing Range	0.3 to 300 seconds per channel
Adjustment Method	Front-panel potentiometers
Output Type	Transistor output, floating
Output Voltage Range	10 to 30V DC
Max Output Current	100 mA per output
Input Signal	13 to 30V DC (“1” signal)
Power Consumption	Approximately 0.5 W
Weight	0.23 kg
Dimensions	14.2 x 11.4 x 5.2 cm
Cable Length	Up to 100 m (unshielded), 200 m (shielded)
Product Status	Discontinued (as of October 2004)

Functional Capabilities

The 6ES5380-8MA11 operates independently of the PLC’s internal timers. It provides hardware-based timing that is essential for certain control tasks . When a control signal reaches the input, the timing sequence begins immediately. After the preset time elapses, the module activates the corresponding output. The output remains active until the control signal stops . This module features a setting error of ±5% and reproducibility of ±2% . Its response time is approximately 20 ms .

Application Scenarios

This module implements time delays and intervals in automation processes without altering the PLC program . Its outputs connect directly to PLC digital inputs for monitoring purposes. The compact design suits space-constrained control cabinets. Additionally, galvanic isolation between inputs and outputs ensures reliable operation in noisy environments . Users can rely on this legacy module to maintain existing S5-based automation systems.
