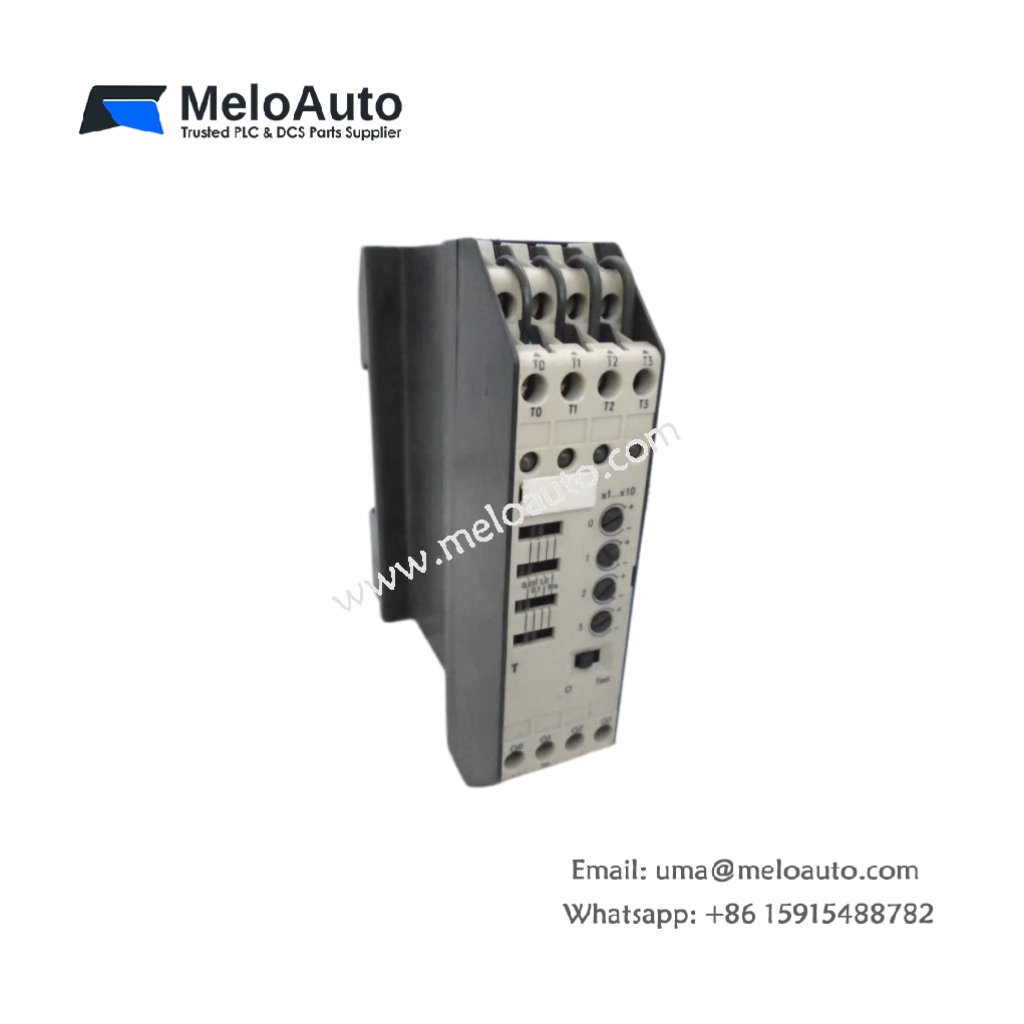

Siemens 6ES5380-7AA12 Timer Module for SIMATIC S5-110

Core Timing Control for S5-110 PLC Systems

The Siemens 6ES5380-7AA12 is a dedicated timer module for the SIMATIC S5-110 Programmable Logic Controller. This module provides four independent timing elements for precise time-based control in industrial automation. Each timing element is configurable within a range from 10 milliseconds to 100 seconds. Consequently, it enables accurate control of sequential operations, delay functions, and periodic processes without consuming CPU resources.

Hardware Configuration and Application

This module mounts directly into the S5-110 rack and connects via the backplane bus. Unlike software timers limited by the PLC scan cycle, hardware-based timers offer consistent accuracy regardless of program length or scan time variations. The 6ES5380-7AA12 simplifies programming by allowing time settings via front-panel potentiometers and range selectors rather than modifying the control logic. Furthermore, this feature allows operators to adjust timing values on the fly without using a programming device.

Technical Specifications and Physical Details

Engineers designed this timer module for reliable operation within the S5-110 system’s environmental specifications. It is part of the S5-110 subrange and is designated for installation in slot 5 of the base unit. The following table details its key physical and functional parameters.

Application in Legacy S5 Systems

Plant engineers rely on this timer module for applications requiring reliable hardware-based timing in legacy S5-110 automation setups. It is ideal for conveyor sequencing, pump control cycles, and machine protection delays. The Siemens 6ES5380-7AA12 simplifies maintenance by allowing technicians to adjust time settings without software tools. Therefore, sourcing tested and functional units is crucial for lifecycle management of aging S5 systems in manufacturing, packaging, and material handling industries.
