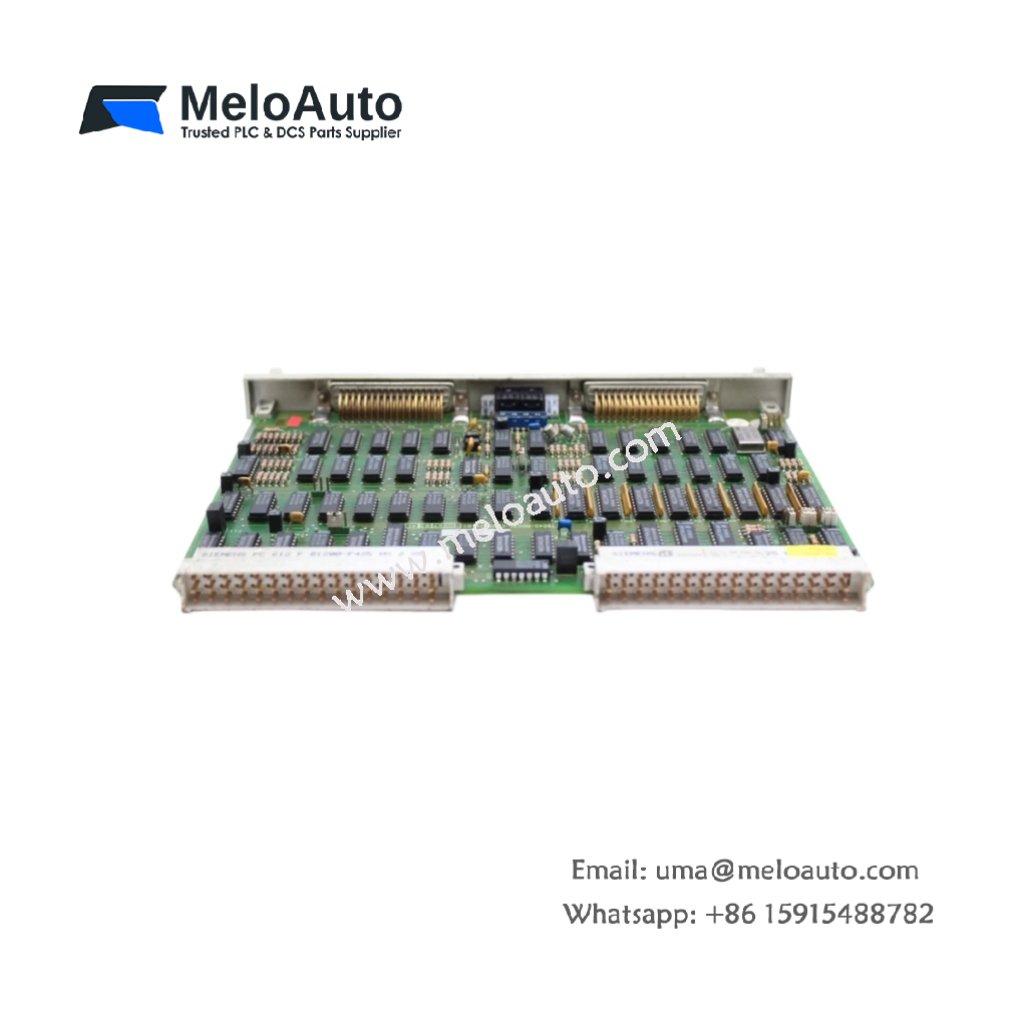

Siemens 6ES5324-3UA11 – Interface Module for SIMATIC S5

This interface module connects the central controller to remote I/O stations. It handles data exchange between the S5 CPU and distributed field devices. You can use this unit to expand I/O capacity without adding more racks.

Key Technical Specifications

Physical Layout and Rack Mounting

This interface module measures 125 mm in width and 90 mm in height. Its depth reaches 55 mm for standard S5 racks. The unit weighs 290 grams, allowing straightforward insertion into any slot. Two ejector tabs secure the module firmly to the backplane.

Internal Circuitry and Energy Storage

One hundred four components populate this communication adapter board. Two 470 µF capacitors form a 940 µF total energy storage bank. This bank filters incoming power and maintains signal integrity during bus activity. Consequently, the module transmits data reliably across long cable runs. A galvanic isolation barrier separates the backplane from the field interface.

Communication Protocol and Distance Limits

The module uses a 2-wire RS-485 serial link at 187.5 kbps. You can run standard shielded twisted-pair cable up to 500 meters. This distance lets you place I/O stations near machinery while keeping the CPU safe. The interface automatically retransmits messages to all connected remote stations. Therefore, you can expand a single S5 controller across a large production hall.

Status Indication and Field Wiring

Three front-panel LEDs show power, transmit, and receive activity clearly. A green RUN light confirms proper backplane communication with the CPU. The TX LED flashes when the module sends data to remote I/O. The RX LED illuminates when the module receives valid responses. A 6-pin removable terminal block accepts wires from 0.2 mm² to 1.5 mm² cross-section.
