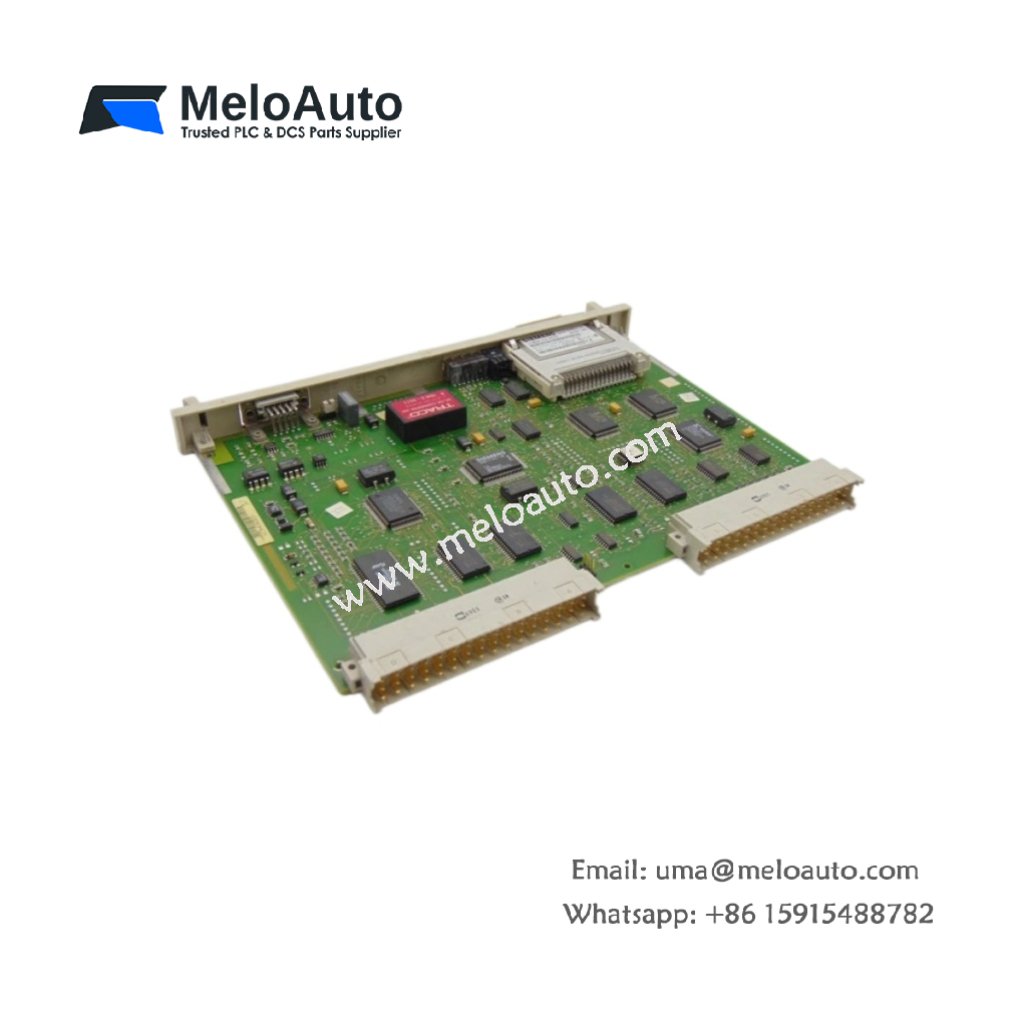

Siemens 6ES5308-3UC11 Interface Module

This interface module connects SIMATIC S5 controllers to external programming devices. It handles data exchange between the CPU and operator panels. Therefore, this component enables remote monitoring and control of automation systems.

Physical Dimensions and Weight Specifications

The Siemens 6ES5308-3UC11 occupies one standard slot in the S5 rack. Its housing measures 233 mm in depth for backplane connectivity. The module weighs approximately 0.43 kg for straightforward handling. Consequently, technicians can install this unit without additional rack reinforcement.

Interface Types and Connection Layout

The Siemens 6ES5308-3UC11 provides one RS-232 port for programming access. A second 20-pin backplane connector links directly to the CPU bus. The front panel carries three LED indicators for communication status monitoring. Hence, operators can diagnose connection errors at a quick glance.

Component Count and Communication Protocol

This interface module contains one main board with a dedicated UART controller. The board holds 8 KB of buffer memory for message queuing. You will also find galvanic isolation circuits for the RS-232 port. An onboard oscillator generates the baud rate clock signal.

Energy Storage and Power Consumption

The Siemens 6ES5308-3UC11 draws 90 mA from the 5V backplane supply. A small electrolytic capacitor maintains buffer memory for 10 milliseconds. This short storage protects message data during brief power dips. The module does not require a backup battery for normal operation.

Communication Performance and Diagnostics

The interface handles full-duplex communication at all supported baud rates. It includes built-in loopback testing for diagnostic verification. Users can read diagnostic data via the S5 programming software. This feature reduces troubleshooting time for communication faults.
