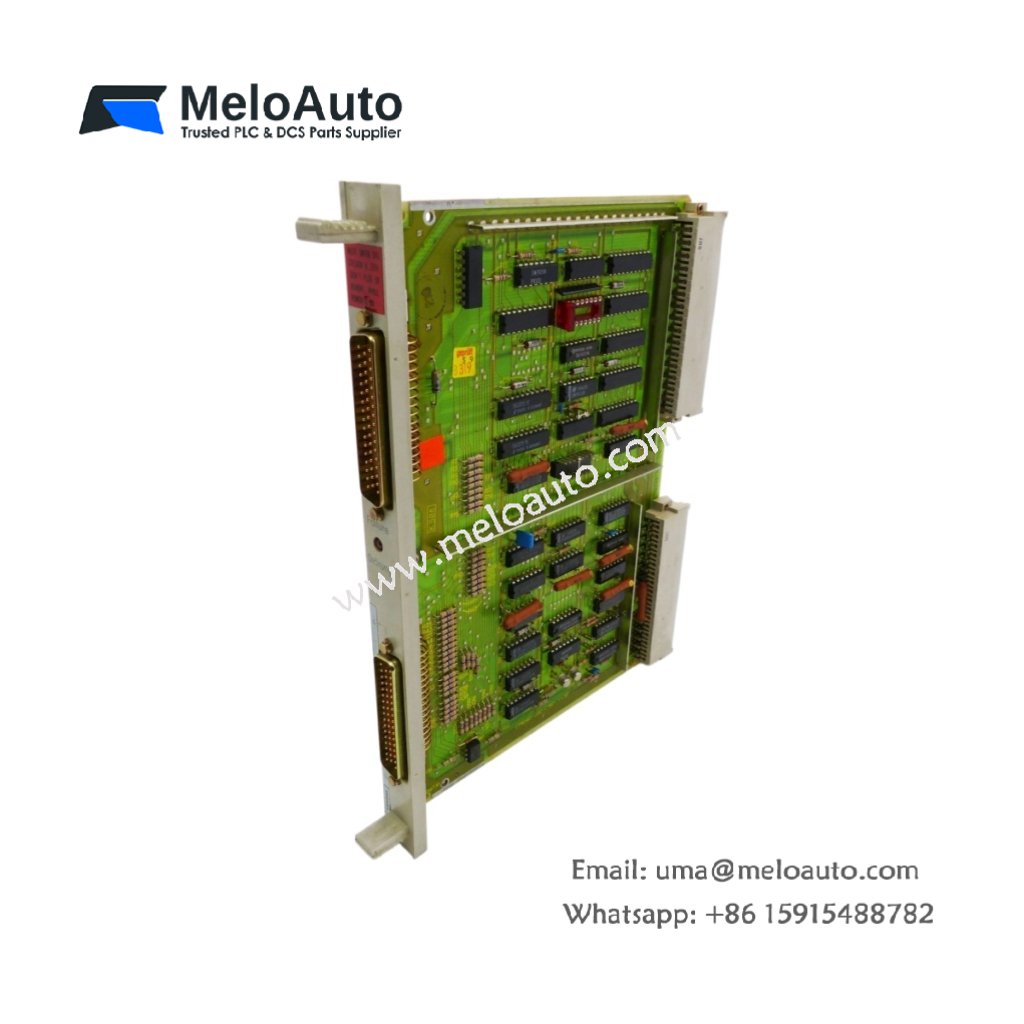

Siemens 6ES5301-5CA12 EU Interface Module for SIMATIC S5

The 6ES5301-5CA12 connects expansion units to the central SIMATIC S5 controller. This interface module manages data exchange between the main rack and remote I/O racks. You can rely on it for distributed system configurations.

Key Technical Parameters

The table below lists all essential technical specifications for this EU interface module.

Physical Characteristics and Installation

This EU interface module weighs approximately 0.50 kg for standard rack mounting. Its dimensions measure 250 mm x 25 mm x 210 mm for S5 single-width slots. First, slide the 6ES5301-5CA12 into the dedicated interface slot. Then, connect the coaxial cable to the 15-pin D-sub port. Finally, secure the module using the top and bottom locking screws. LED indicators show communication status and expansion rack activity.

Communication Specifications

The 6ES5301-5CA12 uses the S5 backplane bus extension protocol for data exchange. This module supports up to 4 expansion racks from a single interface. The maximum cable length reaches 100 meters for remote placement. Data transfers occur at 1.5 Mbps for responsive I/O updates. The typical scan time measures 5 ms for reliable performance.

System Integration and Power Requirements

This interface module draws 300 mA from the 5V DC backplane supply. The 6ES5301-5CA12 works with both central and expansion racks. You must install one interface in the central rack and another in each expansion rack. The RS-485 differential signaling rejects electrical noise in industrial environments. Use this module for large distributed automation systems.
