Technical Overview

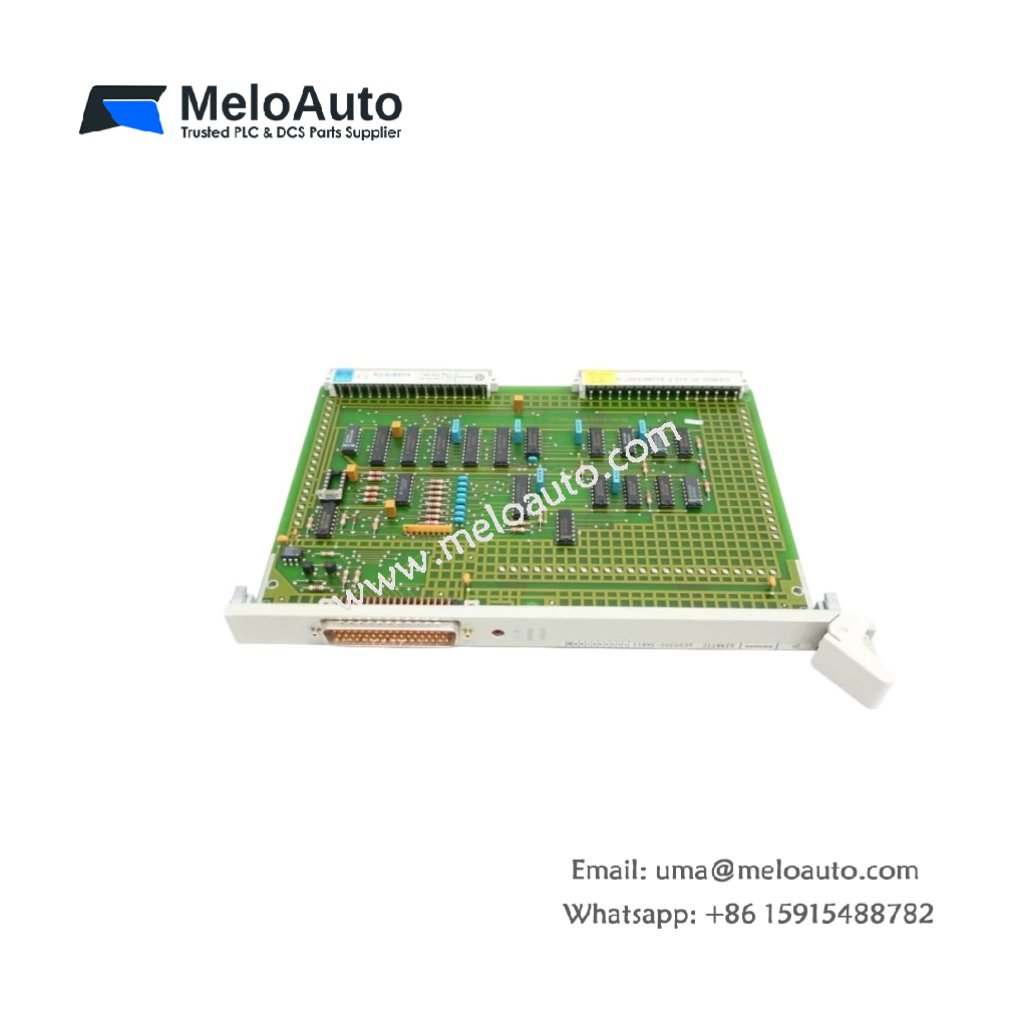

The Siemens 6ES5300-3AB11 is an IM 300 connection module designed for the SIMATIC S5-135U and S5-155U programmable controller systems . This module establishes a physical and electrical link between the central controller (CC) and expansion units (EU), extending the system bus to additional racks . It mounts in the dedicated interface slot at the rightmost position of the central controller rack .
The module facilitates system expansion by enabling the connection of up to three expansion units, thereby increasing overall I/O capacity . It transmits system bus signals and supplies operating power to the connected expansion racks, simplifying the overall system power architecture . The Siemens 6ES5300-3AB11 uses a flat ribbon cable with a maximum length of 2.5 to 3 meters to connect to the expansion unit .
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6ES5300-3AB11 |
| Product Type | IM 300 Connection/Interface Module |
| System Compatibility | SIMATIC S5-135U, S5-155U |
| Function | Central rack to expansion unit bus coupling and power supply |
| Mounting | Dedicated IM slot, right side of central rack |
| Bus Interface | S5 system bus (flat ribbon cable) |
| Power Supply | From central controller backplane |
| EU Power | Built-in supply for connected expansion units |
| Max Expansion Units | 1-3 (depending on CPU/model) |
| Max Cable Length | 2.5-3 meters |
| Dimensions | 21.3 x 26.1 x 3.4 cm |
| Weight | 0.34 – 0.36 kg |
| Operating Temperature | 0°C to +60°C |
| Protection Rating | IP20 |
| Product Status | Obsolete (EOL) |
Key Features
System Bus Extension – The Siemens 6ES5300-3AB11 extends the CPU’s system bus to additional expansion racks, enabling the creation of large-scale, distributed automation systems . It passes data, address, and control signals seamlessly between racks.
Integrated Expansion Unit Power – The module supplies the necessary operating power to the connected expansion unit via the interface cable, eliminating the need for a separate power supply module in the expansion rack . This design reduces cabinet space requirements and simplifies system wiring.
Central Configuration Compatibility – The module is specifically intended for use in central configurations, serving as the primary link between the main controller and its expansion units. It operates as an IM 300 in the main unit, with a counterpart IM 300 in the expansion unit .
Legacy System Integration – As the SIMATIC S5 series is now obsolete , the Siemens 6ES5300-3AB11 is a critical component for maintaining existing S5-135U and S5-155U installations. It enables continued operation of legacy automation systems without a complete system upgrade.
Industrial-Grade Construction – The module features a robust design suitable for control cabinet installation, with IP20 protection against solid objects. It operates reliably in temperatures from 0°C to 60°C .
Simplified Cabling – The use of a single flat ribbon cable for both signal transmission and power delivery simplifies the physical connection between the central and expansion racks .
Applications
The Siemens 6ES5300-3AB11 is essential for expanding SIMATIC S5-135U and S5-155U systems in manufacturing automation, process control, and material handling applications. It is used in automotive, chemical, and steel production facilities where additional I/O capacity is required. The module is a key component for maintaining and upgrading legacy SIMATIC S5 installations.
