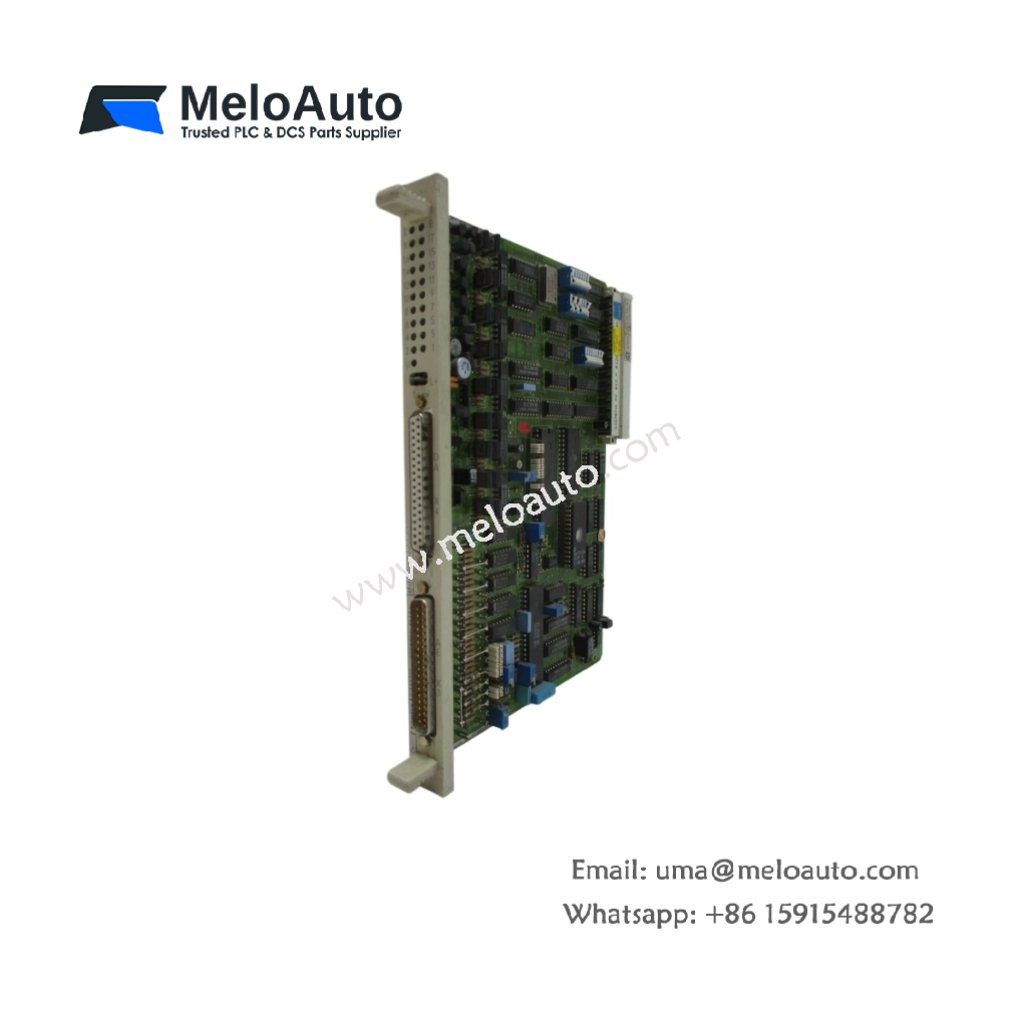

Siemens 6ES5244-3AA13 Temperature Control Module

Module Overview

This temperature control module provides PID regulation for heating and cooling processes. You can install Siemens 6ES5244-3AA13 directly into any SIMATIC S5 rack slot. The unit accepts thermocouple or RTD input signals directly. It generates analog output signals for controlling heaters or cooling valves.

Technical Specifications

Parameter	Value
Dimensions (W x H x D)	250 mm x 25 mm x 130 mm
Weight	0.52 kg
Number of control loops	2 independent PID loops
Input type	Thermocouple (J, K, S) or Pt100 RTD
Input range	-200°C to +1300°C (type dependent)
Input resolution	14-bit (0.1°C typical)
Output type	0 to 10V DC or 4 to 20 mA
Output resolution	12-bit
PID algorithm	Digital with auto-tuning capability
Sampling rate	500 ms per loop
Control outputs	2 analog + 2 digital (heating/cooling)
Interface to backplane	S5 backplane connector
Total onboard components	182 discrete parts
Energy storage type	Tantalum and ceramic capacitors
Energy storage rating	350 µF at 25V DC
Operating temperature	0°C to +60°C

Board Layout and Components

The PCB separates input conditioning circuits from output driver sections. Two independent PID processors handle each control loop separately. Additionally, 182 discrete components include precision amplifiers and isolation barriers. Tantalum capacitors provide stable power for analog-to-digital conversions. Consequently, temperature readings maintain accuracy within 0.1°C.

Installation Process

You can mount Siemens 6ES5244-3AA13 into any standard SIMATIC S5 rack slot. The backplane connector supplies power and exchanges data with the CPU. Furthermore, front panel screw terminals accept sensor and actuator wiring. DIP switches allow configuration of input type and output range easily.

Performance Advantages

This module includes an auto-tuning feature for PID parameter calculation. The 500 ms sampling rate suits most thermal processes adequately. Therefore, plastic extruders, ovens, and heat treat furnaces achieve stable temperature control. The dual analog outputs also drive both heater and cooling devices simultaneously.

Safety and Compliance

Siemens 6ES5244-3AA13 meets CE and RoHS industrial standards. The board discharges stored energy below 3V within six seconds. Hence, technicians face minimal electrical risk during installation or replacement.
