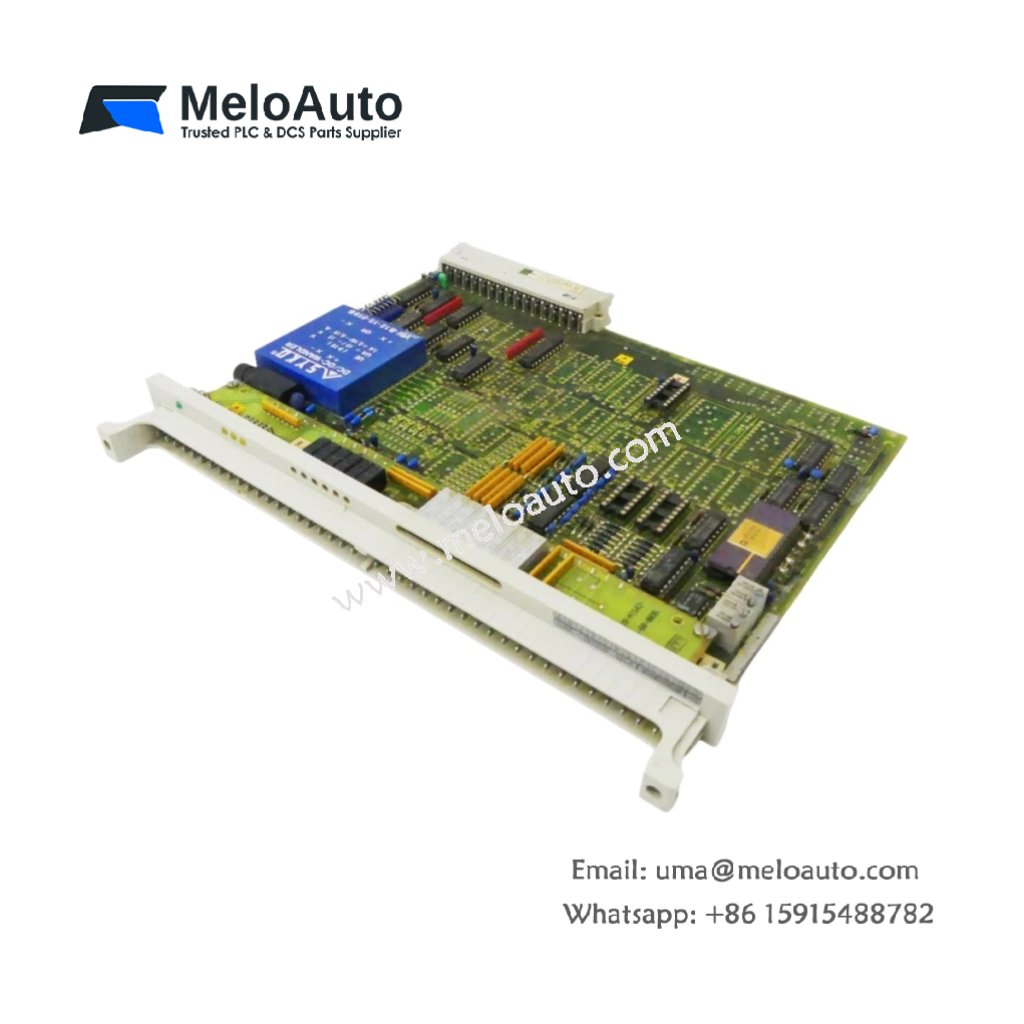

Siemens 6ES5243-1AB11 Analog Module

This analog module provides precise signal conversion for SIMATIC S5 automation systems. The Siemens 6ES5243-1AB11 handles analog input and output functions for process control applications. Its robust design ensures accurate data acquisition in demanding industrial environments.

Key Technical Specifications

Precision Analog Signal Processing

The Siemens 6ES5243-1AB11 provides reliable conversion between analog field signals and digital values. This module supports multiple input and output channels for flexible system configuration. Furthermore, it delivers high-resolution measurements for accurate process monitoring. Engineers can configure the unit for various voltage and current ranges to match specific sensor requirements.

The internal circuitry includes filtering to reject electrical noise from industrial environments. This filtering ensures stable readings without compromising response time. Additionally, the Siemens 6ES5243-1AB11 features isolation between field circuits and the system bus. This isolation protects the controller from ground loops and transient surges.

Robust Physical Construction

This analog module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.68 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, status indicators provide visual confirmation of power presence and channel activity. Operators can verify proper operation without using diagnostic tools.

System Integration and Application

The Siemens 6ES5243-1AB11 integrates seamlessly with SIMATIC S5 programmable controllers. This module mounts into standard S5 racks alongside CPU, input, and output modules. Its analog capabilities suit applications requiring precise measurement and control. Industries such as chemical processing, water treatment, and manufacturing frequently deploy this analog module for reliable process signal acquisition.
