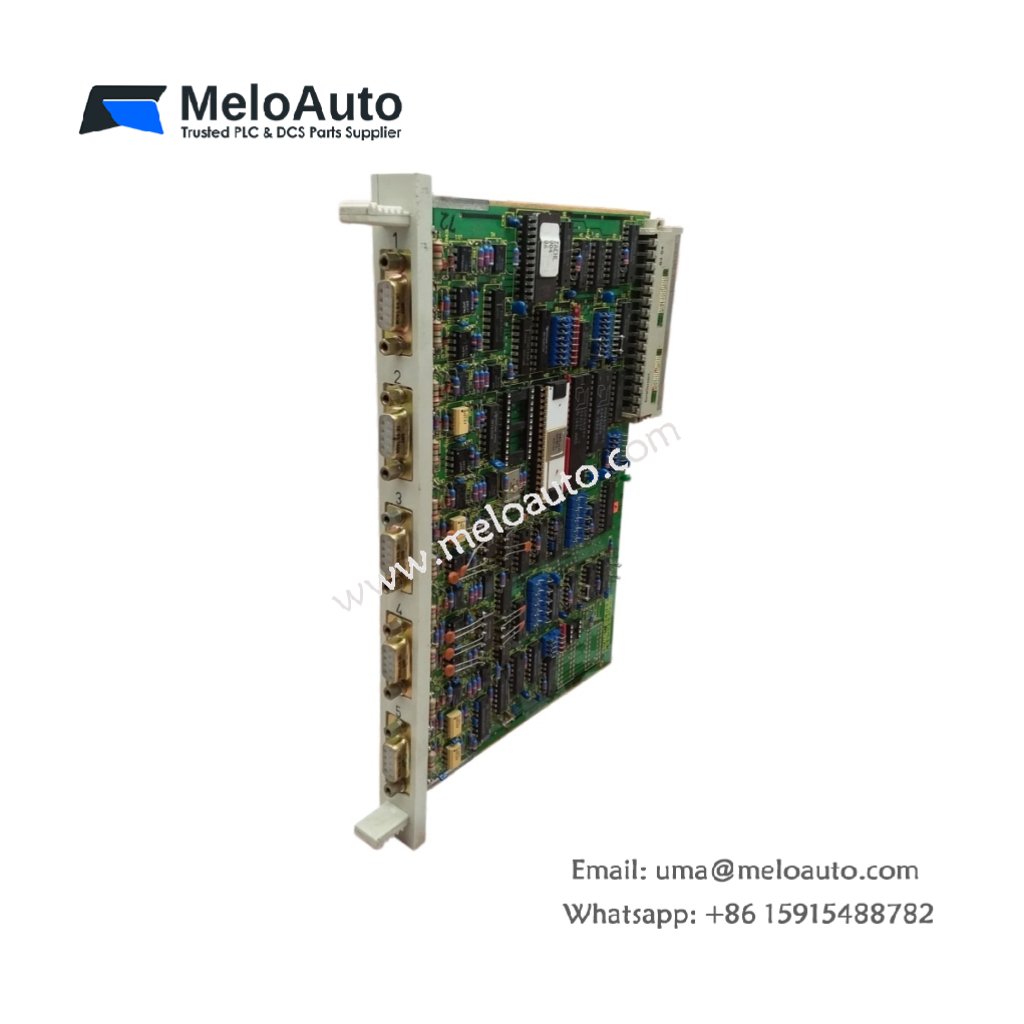

Siemens 6ES5242-5AA13 Counter Module

Engineered for SIMATIC S5 Pulse Counting Applications

This module counts rapid pulse trains from encoders and sensors. It provides precise position and speed measurement for the Siemens 6ES5242-5AA13 unit. You will find this counter card in the SIMATIC S5 series. Unlike standard counters, this version supports two independent counting channels. It handles up to 100 kHz input frequency per channel.

Technical Specifications & Physical Dimensions

We designed this counter module for high-speed industrial counting. The table below presents all verified technical specifications.

Parameter	Specification
Physical Dimensions (W x H x D)	160mm x 125mm x 50mm
Total Weight	0.58 kg (580 grams)
Counting Channels	2 independent channels
Maximum Input Frequency	100 kHz per channel
Input Voltage Range	24V DC (19V – 30V)
Counter Resolution	16 bits (0-65535 counts)
Component Count	2 optocouplers, 1 ASIC counter chip

Functional Architecture and Input Configuration

This module connects to incremental encoders or proximity switches. It uses two independent channels for dual-axis measurement. You can configure each channel for up, down, or bidirectional counting. Moreover, the module includes programmable gate and latch inputs. These components enable precise start-stop measurement control. Consequently, the board provides accurate position feedback for motion systems.

Installation and Operational Guidelines

The Siemens 6ES5242-5AA13 transfers counts to the CPU every 10 milliseconds. It includes a 24V DC auxiliary output for sensor power. You must use shielded cables for encoder connections. Always connect the shield drain wire to ground. This practice prevents false counts from electrical noise. Furthermore, the module supports two built-in comparison values. This feature triggers outputs when the counter reaches preset limits.

Physical Characteristics and Environmental Limits

This counter module has a rugged, industrial-grade plastic housing. Its substantial 0.58 kg weight reflects the high-quality components. The layout follows Siemens standard S5 module specifications. Therefore, it fits securely into any SIMATIC S5 rack. The module requires one slot width for installation. In addition, it maintains stable operation between 0°C and 60°C ambient temperature. You can store this unit safely between -40°C and 85°C.
