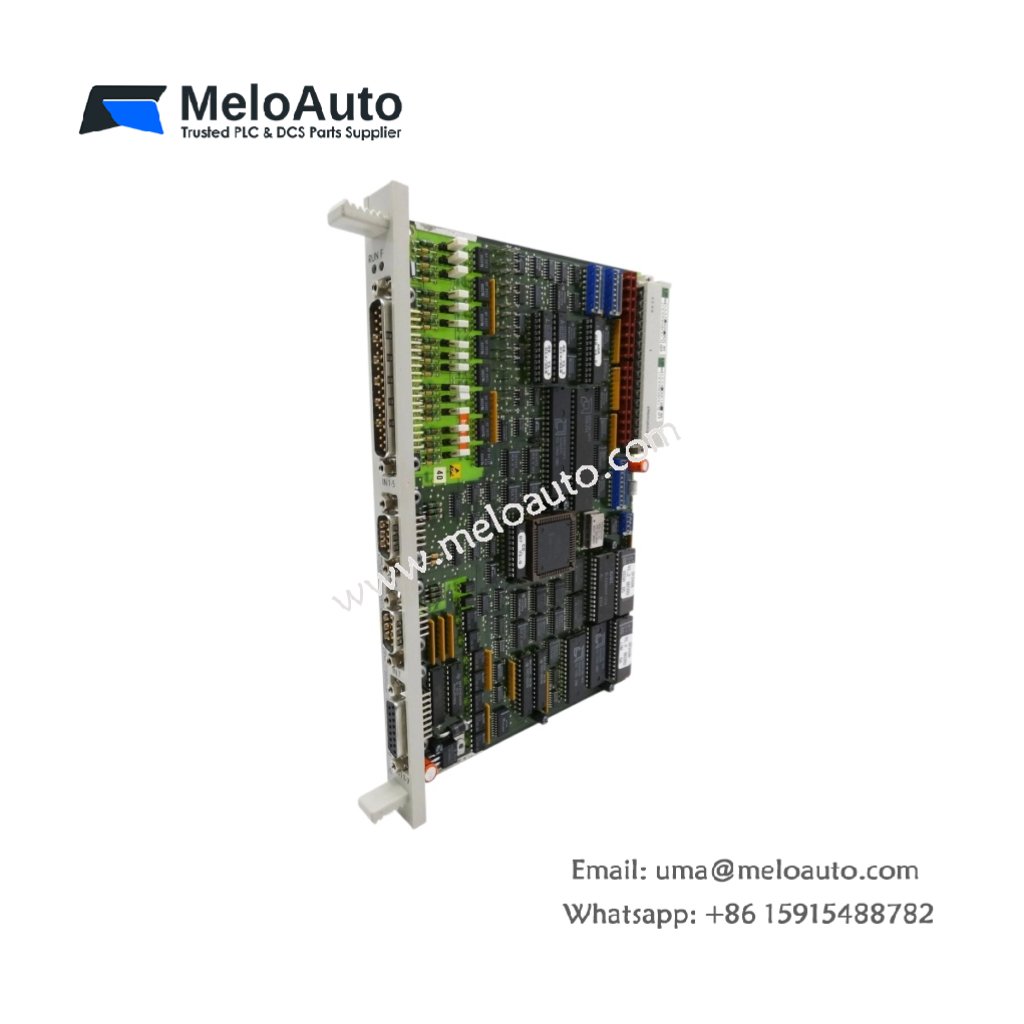

Siemens 6ES5242-1AA31 IP242A Counter Module

Precision Counting Solution for SIMATIC S5-115U Systems

The 6ES5242-1AA31 counter module functions as an intelligent IP242A peripheral device for the SIMATIC S5-115U programmable controller. This module provides seven independent counter channels for high-speed position detection and event counting tasks. It suits applications such as conveyor tracking, length measurement, and rotational speed monitoring. Consequently, this module enhances the counting capabilities of the S5-115U system.

Technical Specifications

Counter Architecture and Input Configuration

The 6ES5242-1AA31 offers a flexible counter architecture with two distinct channel groups. The first five counter channels provide 16-bit counting capability. The remaining two channels function as 24/32-bit up/down counters for extended range applications. The module accepts both 24 V DC and 5 V DC input signals, with hardware-level conditioning options available. Users can apply a frequency conditioning circuit for each input to match the specific encoder or pulse source characteristics.

Comparator and Gate Control Functions

This counter module includes a built-in comparator function for each counter channel. The comparator triggers output actions when the counter value reaches a preset threshold. The module also features gate control logic that enables or disables counting based on external signals. Furthermore, the 6ES5242-1AA31 supports interrupt generation upon reaching comparator values. This functionality enables real-time response in high-speed automation tasks.

System Integration and Programming

The 6ES5242-1AA31 connects to the S5-115U via the backplane bus and requires hardware address settings on the module itself. Users configure the module through STEP 5 software using designated control words and registers. The module provides LED indicators on the front panel for operational status and diagnostics. Additionally, it supports process interrupt generation for time-critical applications.

Physical Characteristics and Installation

This compact counter module weighs approximately 0.37 kg and fits standard S5-115U rack slots. It features a front connector for straightforward field wiring connections. The module’s dimensions make it suitable for dense rack configurations.
