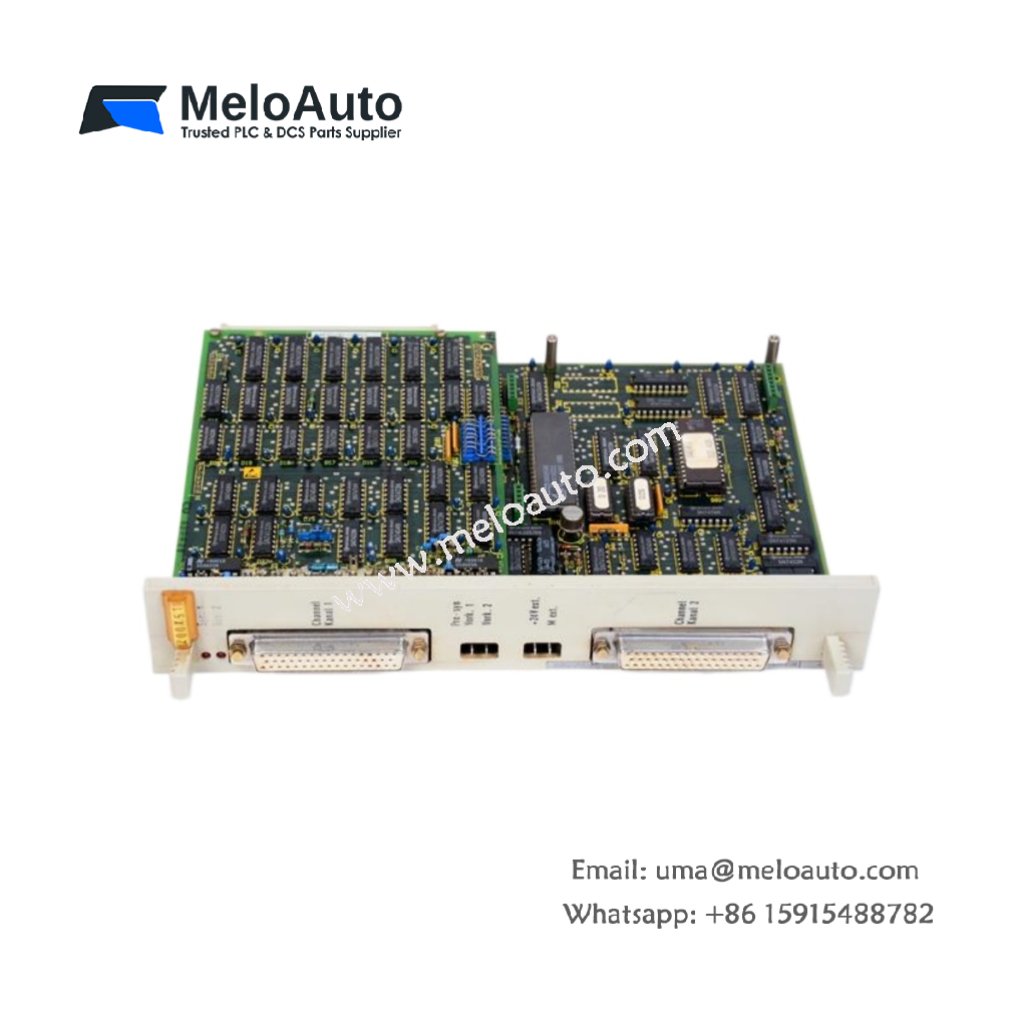

Siemens 6ES5241-1AF11 IP241 Module

This IP241 module provides position control capabilities for SIMATIC S5 automation systems. The Siemens 6ES5241-1AF11 handles positioning tasks with precision and reliability. Its robust design ensures accurate motion control in demanding industrial environments.

Key Technical Specifications

Parameter	Specification
Manufacturer	Siemens
Model	6ES5241-1AF11
Type	IP241 Position Control Module
Product Line	SIMATIC S5
Function	Positioning and closed-loop control
Power Supply	5 VDC from backplane
Dimensions	235 mm × 160 mm × 45 mm
Weight	Approximately 0.59 kg
Mounting	S5 rack compatible

Precision Position Control

The Siemens 6ES5241-1AF11 executes positioning tasks with high accuracy for motion applications. This module handles incremental encoder signals for precise axis positioning. Furthermore, it supports closed-loop control for maintaining target positions reliably. Engineers can configure the unit for various positioning profiles and motion sequences.

The internal architecture includes dedicated processing for real-time position monitoring. This processing ensures consistent performance without burdening the main CPU. Additionally, the Siemens 6ES5241-1AF11 features integrated inputs and outputs for connecting limit switches and actuators. These connections simplify wiring for complete positioning systems.

Robust Physical Construction

This IP241 module measures 235 millimeters in height with a compact depth profile. Its weight of approximately 0.59 kilograms reflects the robust internal components and construction quality. The housing utilizes durable materials that resist vibration and temperature variations. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly labeled terminal connections on the front panel. These terminals accept standard gauge wires for secure and reliable field wiring. Furthermore, status indicators provide visual confirmation of operation and error conditions. Operators can monitor positioning status without using diagnostic tools.

System Integration and Application

The Siemens 6ES5241-1AF11 integrates seamlessly with SIMATIC S5 programmable controllers. This module mounts into standard S5 racks alongside CPU and other I/O modules. Its positioning capabilities suit applications such as pick-and-place, cutting, and indexing systems. Industries including automotive manufacturing, packaging machinery, and machine tools frequently deploy this IP241 module for reliable position control.
