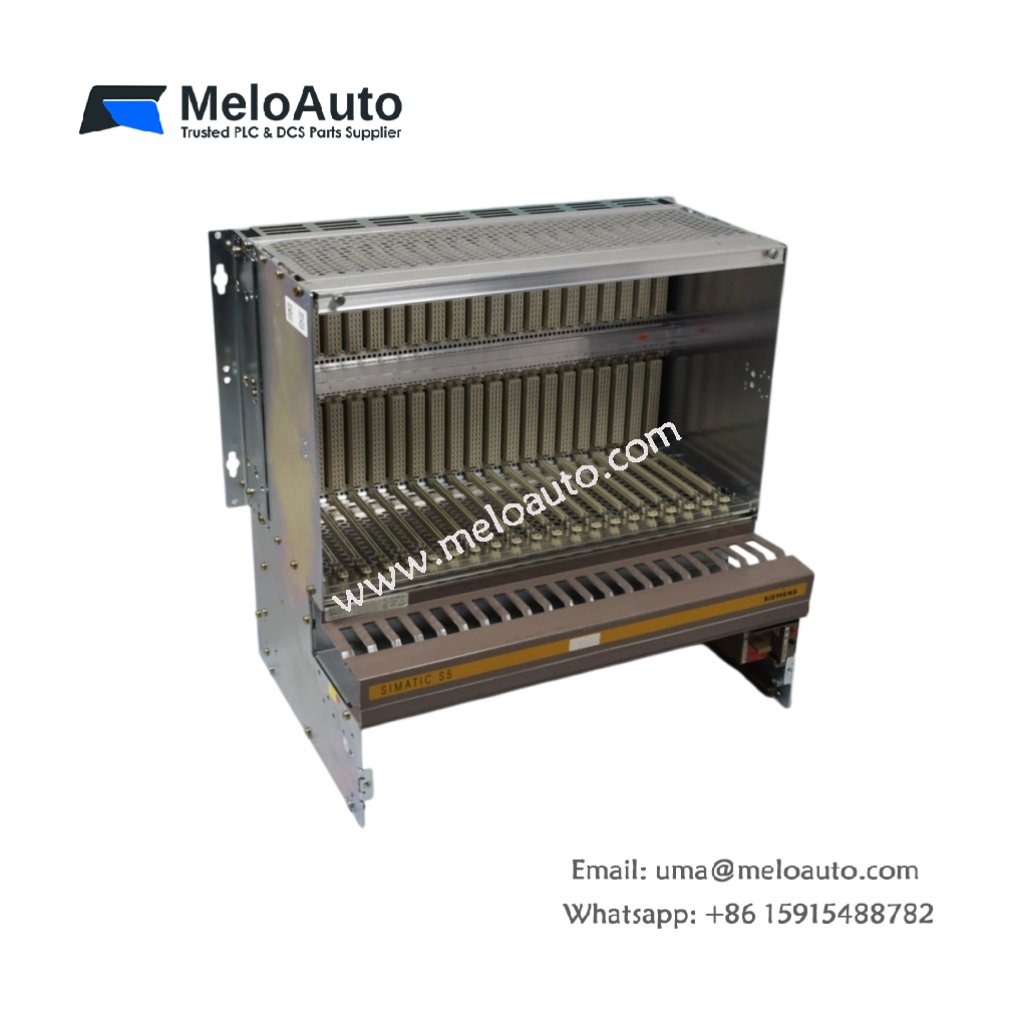

Siemens 6ES5185-3UA12 Expansion Unit

The 6ES5185-3UA12 expands I/O capacity for SIMATIC S5 systems. This unit houses up to 8 additional I/O modules. It connects to the main CPU via a dedicated expansion cable.

Key Technical Specifications

Physical Dimensions and Construction

This unit measures 48.0 cm in length and 25.0 cm in width. Its total height reaches 15.0 cm including the mounting feet. 6ES5185-3UA12 weighs 4.2 kg for stable floor or rack mounting. The steel enclosure provides robust protection for internal components.

Moreover, the unit includes a passive backplane with 8 module connectors. This backplane carries power and signal traces to all slots. You will find 24 discrete components for termination and filtering.

Slot Configuration and Module Support

Each of the 8 slots accepts any standard S5 I/O module. You can mix digital, analog, and function modules freely. The unit supports S5-115U, 135U, and 155U module families. A built-in power supply connector feeds 24V DC to all modules.

Interface and Communication

A 50-pin interface connector links to the CPU’s IM360 card. An IM361 module in this unit handles the communication protocol. The expansion cable can run up to 10 meters from the main rack. LED indicators show power status and communication activity.

Typical Application Scenarios

You can deploy 6ES5185-3UA12 in SIMATIC S5 systems requiring more than 8 I/O modules. It also works well for distributing I/O near field devices. This unit places I/O close to sensors and actuators on large machines. Its 8-slot capacity supports systems with up to 512 additional I/O points.
