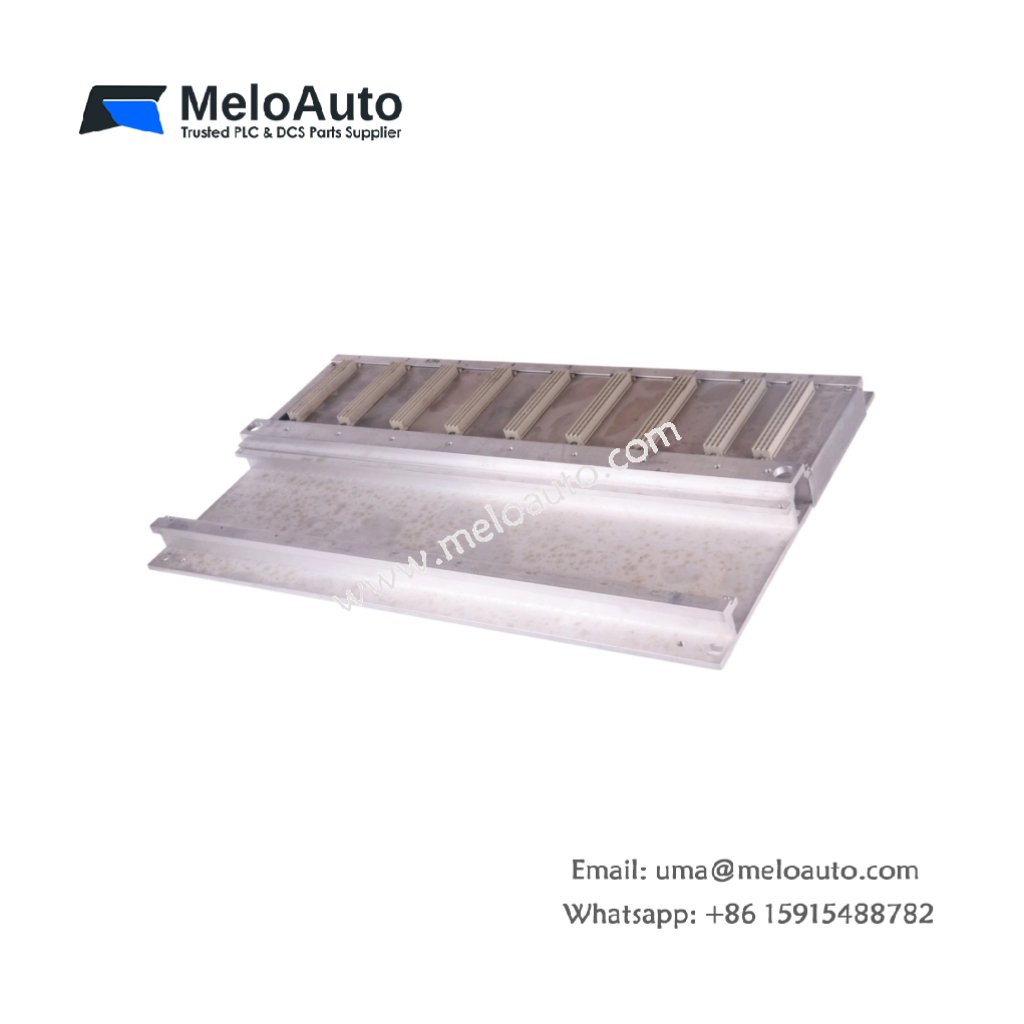

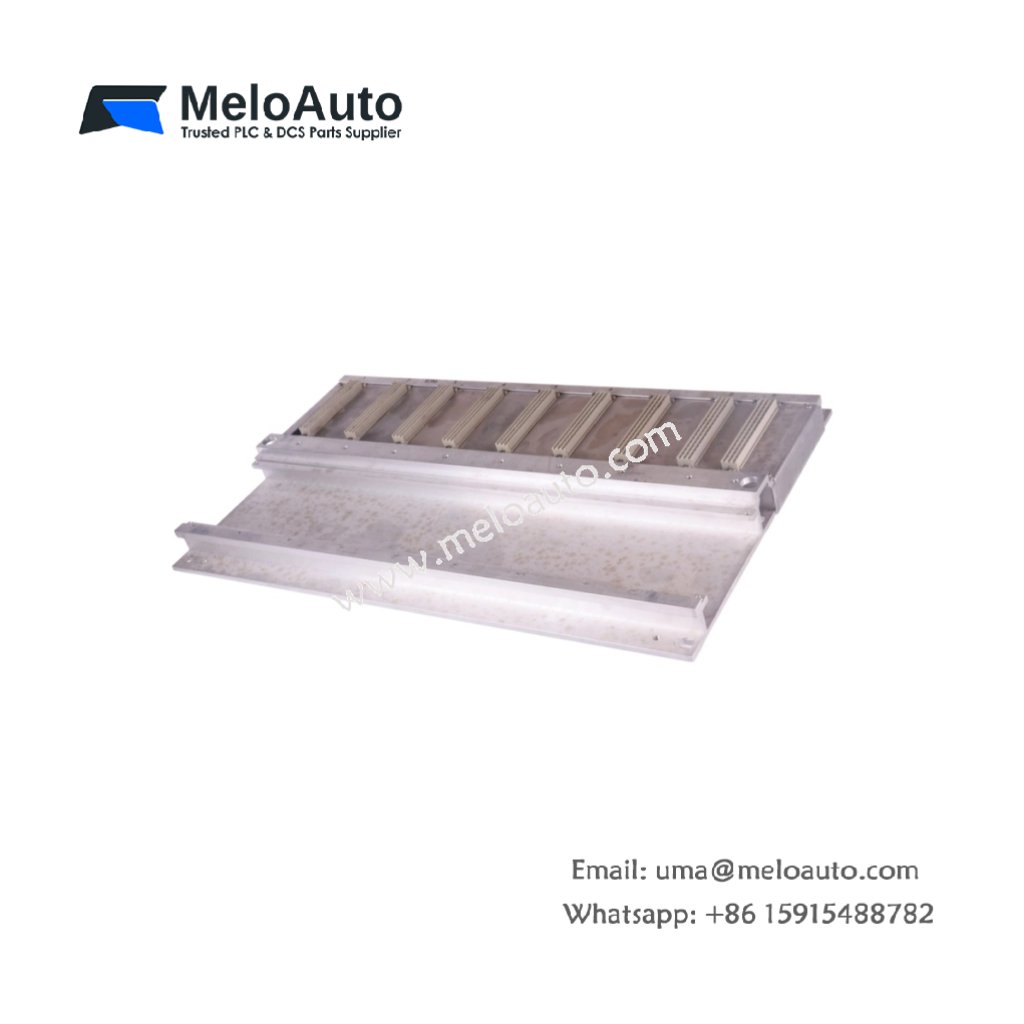

Siemens 6ES5180-3AA11 Extension Unit

This extension unit expands I/O capacity for SIMATIC S5 automation systems. The Siemens 6ES5180-3AA11 connects to a central controller for distributed configuration. Its robust construction ensures reliable operation in demanding industrial environments.

Key Technical Specifications

System Expansion Capabilities

The Siemens 6ES5180-3AA11 increases I/O capacity for SIMATIC S5 controller systems. This extension unit connects to the central controller via dedicated interface cabling. Furthermore, it provides multiple module slots for input, output, and communication modules. Engineers can expand system capacity without replacing existing components.

The integrated backplane provides power and data connections for all installed modules. This passive design ensures reliable signal distribution without active components. Additionally, the Siemens 6ES5180-3AA11 includes a power supply connection for module operation. The unit maintains consistent power delivery across all installed modules.

Robust Physical Construction

This extension unit measures 400 millimeters in width with a substantial depth profile. Its weight of approximately 2.5 kilograms reflects the durable steel construction. The housing utilizes heavy-gauge materials that resist vibration and mechanical stress. Siemens designed this unit for continuous operation in demanding industrial environments.

Technicians will appreciate the clearly marked slot numbering for module placement. The unit includes mounting provisions for secure attachment to panels or enclosures. Furthermore, the integrated cable management features simplify wiring organization. Operators can install and remove modules without special tools or complex procedures.

System Integration and Application

The Siemens 6ES5180-3AA11 integrates with SIMATIC S5 central controllers via extension interfaces. This unit mounts alongside the main rack for coordinated system operation. Its expansion capability suits applications requiring extensive I/O capacity. Industries such as automotive manufacturing, process control, and material handling frequently deploy this extension unit for system growth and distributed I/O configurations.
