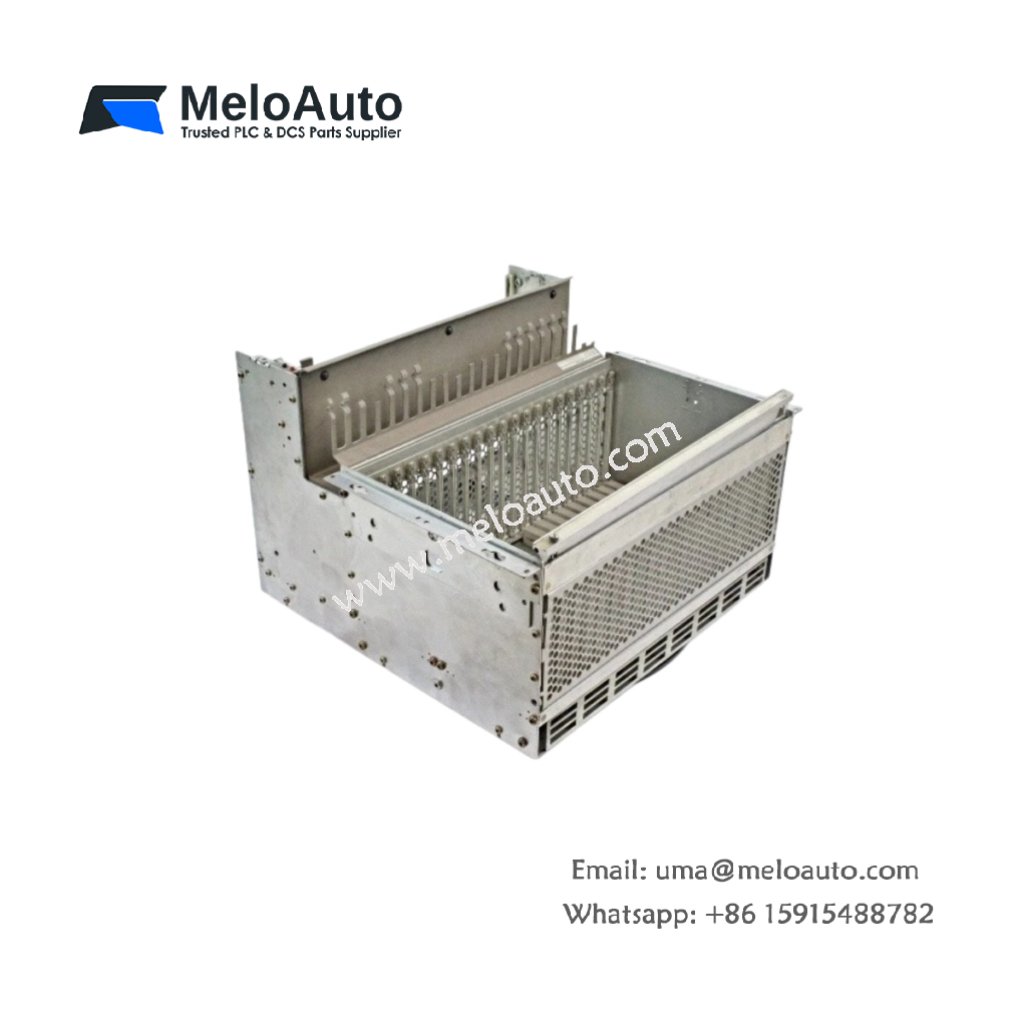

Siemens 6ES5135-3KA31: 21-Slot Rack for S5-135U Central Controller

The Siemens 6ES5135-3KA31 is a reliable 21-slot rack designed for the S5-135U Central Controller. It offers essential slots for housing system components, ensuring efficient operation and stability in your automation setup. Supporting both 24V DC and 5V power inputs, this module is versatile and capable of meeting different power requirements. Additionally, it can handle a maximum current of 18A, making it suitable for demanding industrial environments.

Key Features of the Siemens 6ES5135-3KA31

• Model: Siemens 6ES5135-3KA31
• Type: 21-Slot Rack
• Product Line: SIMATIC S5
• Manufacturer: Siemens
• Application: Industrial Automation, S5-135U System Integration
• Compatibility: Designed for S5-135U Central Controller
• Power Supply: 24V DC, 5V
• Current Rating: 18A

Technical Specifications

Why Choose Siemens 6ES5135-3KA31?

The Siemens 6ES5135-3KA31 offers several advantages that make it an excellent choice for your industrial automation system:

• Flexible Power Supply Options: This rack supports both 24V DC and 5V inputs, providing flexibility to meet your system’s power requirements.
• Ample Slot Capacity: With 21 slots, the rack accommodates a wide variety of components, ensuring a well-organized setup.
• High Current Capacity: Capable of handling up to 18A, it ensures safe and stable power distribution across the system.
• Reliable Protection: The IP20 protection class guarantees reliable operation, even in environments exposed to dust and other particles.
• Easy Mounting: The rack-mount design ensures simple and secure installation, saving time during setup.

Product Overview

The Siemens 6ES5135-3KA31 rack is engineered for the S5-135U Central Controller system. This module provides 21 slots for essential components, ensuring efficient operation and easy system integration. Whether you need to house the central processing unit or additional I/O modules, this rack can accommodate them seamlessly. It is compatible with both 24V DC and 5V power supplies, giving you the flexibility to select the appropriate power source for your system.

Furthermore, the Siemens 6ES5135-3KA31 can handle a maximum current of 18A, making it ideal for systems that require significant power. This current rating ensures that your components receive the necessary power for uninterrupted operation. The IP20 protection class ensures durability, preventing dust and foreign objects from compromising the system’s performance.

How to Install the Siemens 6ES5135-3KA31

To install the Siemens 6ES5135-3KA31, mount it in a secure location within your system. Once mounted, connect the required system components to the 21 available slots. Note that this rack does not include a power supply, so you will need to provide one that matches the 24V DC or 5V input requirements. After installation, the rack will support your S5-135U Central Controller and allow for efficient power distribution across all components.

The installation process is straightforward. With a simple rack-mount design, the Siemens 6ES5135-3KA31 ensures that your system integration is quick and hassle-free.

Conclusion

In conclusion, the Siemens 6ES5135-3KA31 21-slot rack is an essential component for any S5-135U Central Controller system. It provides flexible power options, ample slots for system components, and high current capacity to support demanding industrial environments. The rack’s reliable IP20 protection and easy installation process make it a practical and efficient solution for industrial automation. Choose the Siemens 6ES5135-3KA31 to optimize your S5-135U system for superior performance and reliability.
