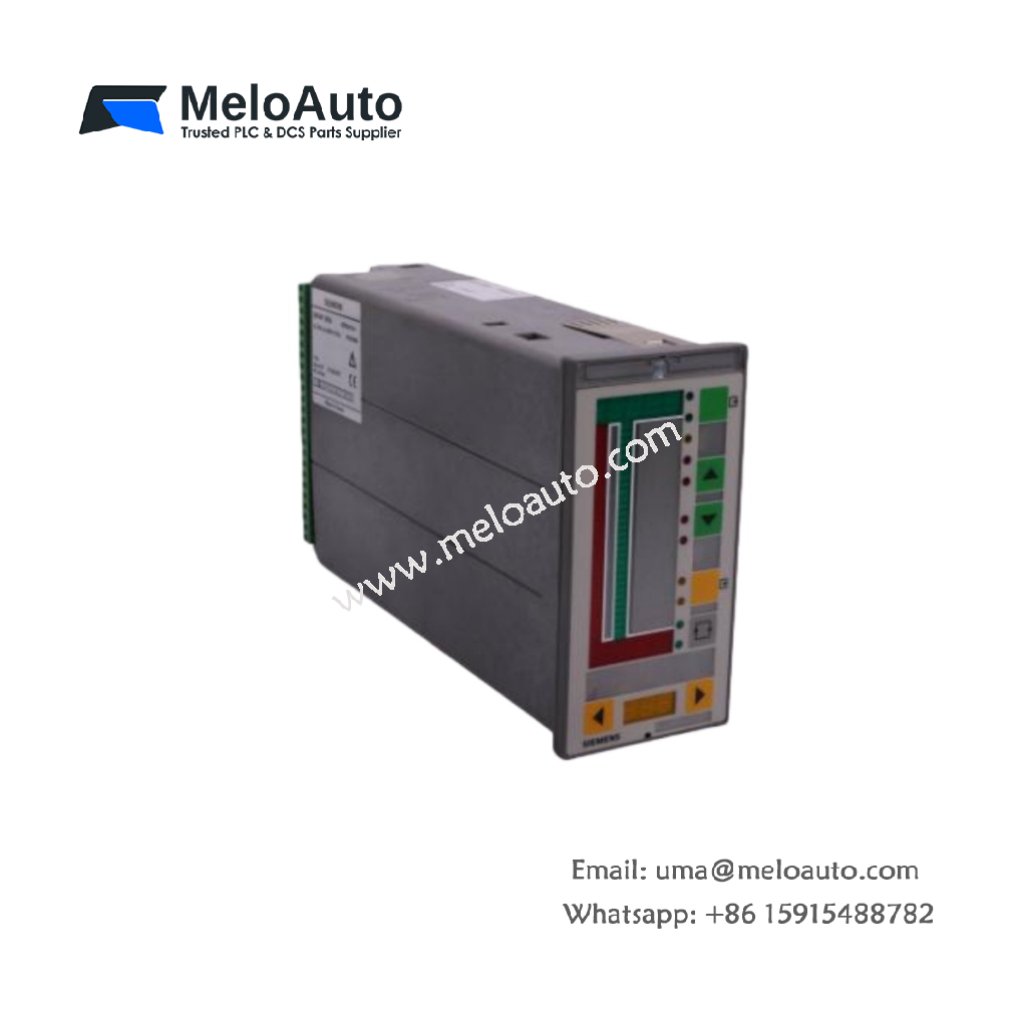

Siemens 6DR2410-4 Multi-Function Unit

Overview

The Siemens 6DR2410-4 is a versatile multi-function unit designed for efficient process control in industrial automation. As part of the SIPART DR24 series, this unit offers high performance for a wide range of applications, particularly those requiring precise analog and digital signal management. With a 24 VAC/DC power supply, this basic device supports various input and output configurations, making it ideal for demanding control systems in industries such as manufacturing, power generation, and chemical processing.

Key Features

Flexible I/O Options: The Siemens 6DR2410-4 provides 3 analog inputs (0/4-20 mA or 0/2-10 V) and 3 analog outputs (0/4-20 mA), ensuring versatility in signal handling.
Digital I/O Support: With 4 digital inputs and 8 digital outputs, this unit enhances control capabilities and device connectivity.
Power Supply Compatibility: It operates with a 24 VAC/DC power supply, making it suitable for various installations.
Compact Design: The unit’s compact form factor facilitates easy integration into existing systems.
High Accuracy: With precise analog inputs and outputs, the 6DR2410-4 ensures reliable and accurate performance in process control.

Applications

Industrial Automation: The unit effectively manages both analog and digital signals for precise control in automated systems.
Process Control: Perfect for use in industries like chemical, oil and gas, and power generation, where accurate signal processing is essential.
Factory Automation: It helps in controlling motors, valves, and actuators, improving efficiency and precision on the production floor.
Measurement and Monitoring: The Siemens 6DR2410-4 is ideal for monitoring and controlling processes where both analog and digital signal processing is required.

Technical Specifications

Parameter	Specification
Model	6DR2410-4
Product Type	Multi-Function Unit (SIPART DR24)
Power Supply	24 VAC/DC
Analog Inputs	3 x 0/4-20 mA or 0/2-10 V
Analog Outputs	3 x 0/4-20 mA
Digital Inputs	4 Digital Inputs
Digital Outputs	8 Digital Outputs
I/O Configuration	3 Analog Inputs, 3 Analog Outputs, 4 Digital Inputs, 8 Digital Outputs
Operating Temperature	-20°C to +60°C
Dimensions (L x W x H)	120 x 100 x 50 mm
Weight	0.6 kg
Certifications	CE, UL, RoHS

Conclusion

The Siemens 6DR2410-4 SIPART DR24 multi-function unit provides a reliable solution for applications requiring precise control and signal processing. It supports a wide variety of inputs and outputs, ensuring flexibility in industrial automation, process control, and factory automation. With its compact design, accurate performance, and easy installation, the 6DR2410-4 is the ideal choice for companies seeking reliable and efficient control solutions.
