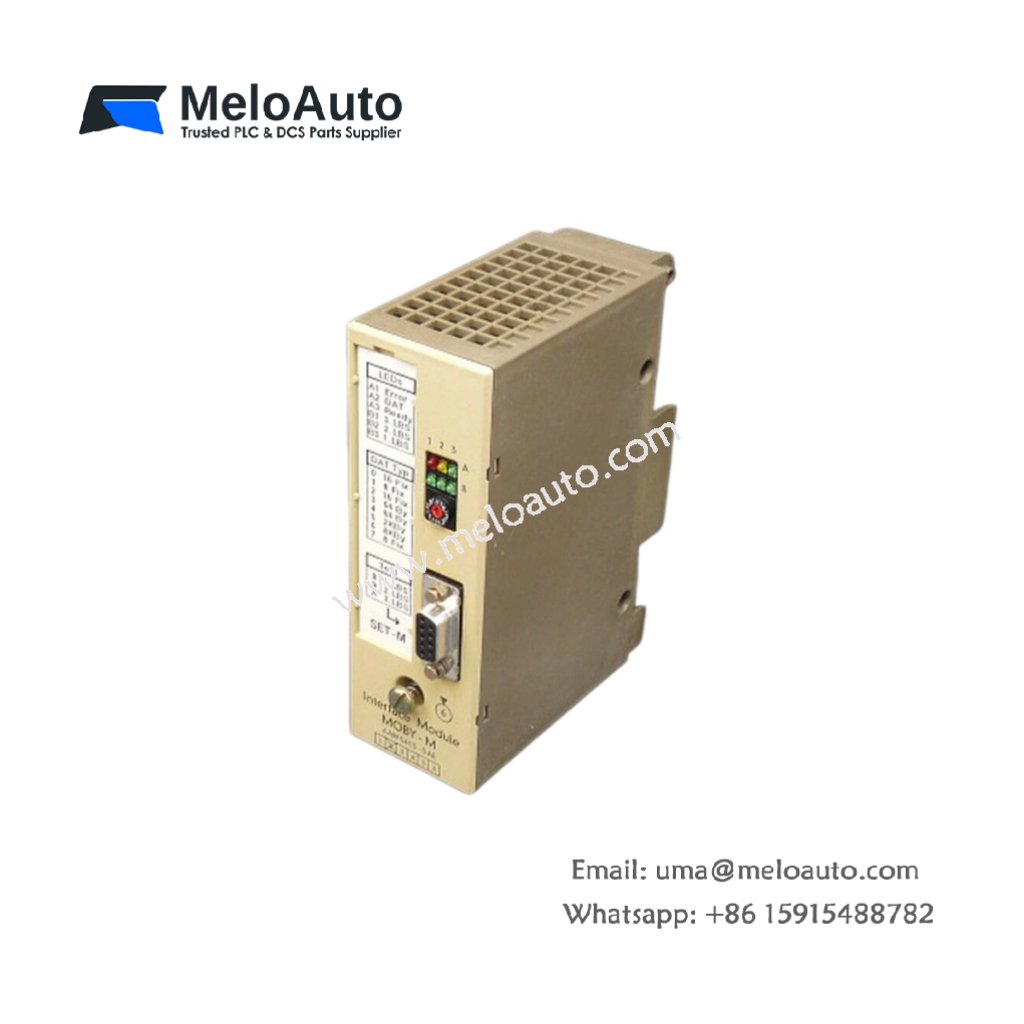

The Siemens 6AW5455-0AE MOBY-M interface module connects S5 controllers to the MOBY-M RFID identification system. This module handles all communication between the CPU and RFID read/write heads. Modern logistics and assembly operations rely on this interface for reliable identification and tracking.
Communication Performance and RFID Protocol Support
This interface module supports the MOBY-M protocol, enabling communication with read/write heads and data carriers. The module transmits data at a rate of 187.5 kbps over an RS-485 interface. An integrated 4 KB buffer stores read data and write commands for efficient processing. Furthermore, the module supports both single and multi-tag operations for flexible application design.
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AW5455-0AE |
| Product Type | RFID Interface Module / MOBY-M Coupler |
| System Compatibility | MOBY-M Identification System |
| Communication Protocol | MOBY-M (proprietary) |
| Transmission Rate | 187.5 kbps |
| Interface Type | RS-485 (9-pin D-sub) |
| Buffer Memory | 4 KB |
| Supported Features | Single/Multi-tag operation, read/write |
| Compatible CPUs | S5-115U, S5-135U, S5-155U |
| Operating Temperature | 0°C to 60°C |
| Power Consumption | 5 V DC at 300 mA |
System Integration and Configuration
You can install the Siemens 6AW5455-0AE in any standard S5 rack slot, similar to other I/O modules. The module automatically maps to the CPU’s I/O address space for straightforward data access. Users configure the module parameters using the STEP 5 programming software. Furthermore, the module supports multiple operating modes, including cyclic and event-driven communication.
Diagnostic Features and Status Monitoring
Front-panel LEDs indicate power, communication activity, and error conditions for quick assessment. The module stores diagnostic information about read/write operations and communication errors. A built-in self-test routine verifies hardware integrity during system startup. These diagnostic features simplify troubleshooting and reduce system downtime.
Applications and Usage Scenarios
The Siemens 6AW5455-0AE is used in production control, warehouse logistics, and assembly line tracking. The module reads data from RFID tags attached to workpieces, pallets, or containers. This capability enables real‑time production tracking and quality assurance. The system also supports data‑carrier programming directly from the S5 controller.
Installation and Connectivity
You can install this interface module in any S5‑115U, S5‑135U, or S5‑155U rack. Connect the module to MOBY‑M read/write heads using the 9‑pin D‑sub connector and suitable cabling. Always observe correct polarity and shielding for the RS‑485 connection. Ensure that the module’s firmware matches the MOBY‑M system version for full compatibility.
