Siemens 6AV6643-0BA01-1AX0: Compact HMI Panel for Machine Interface

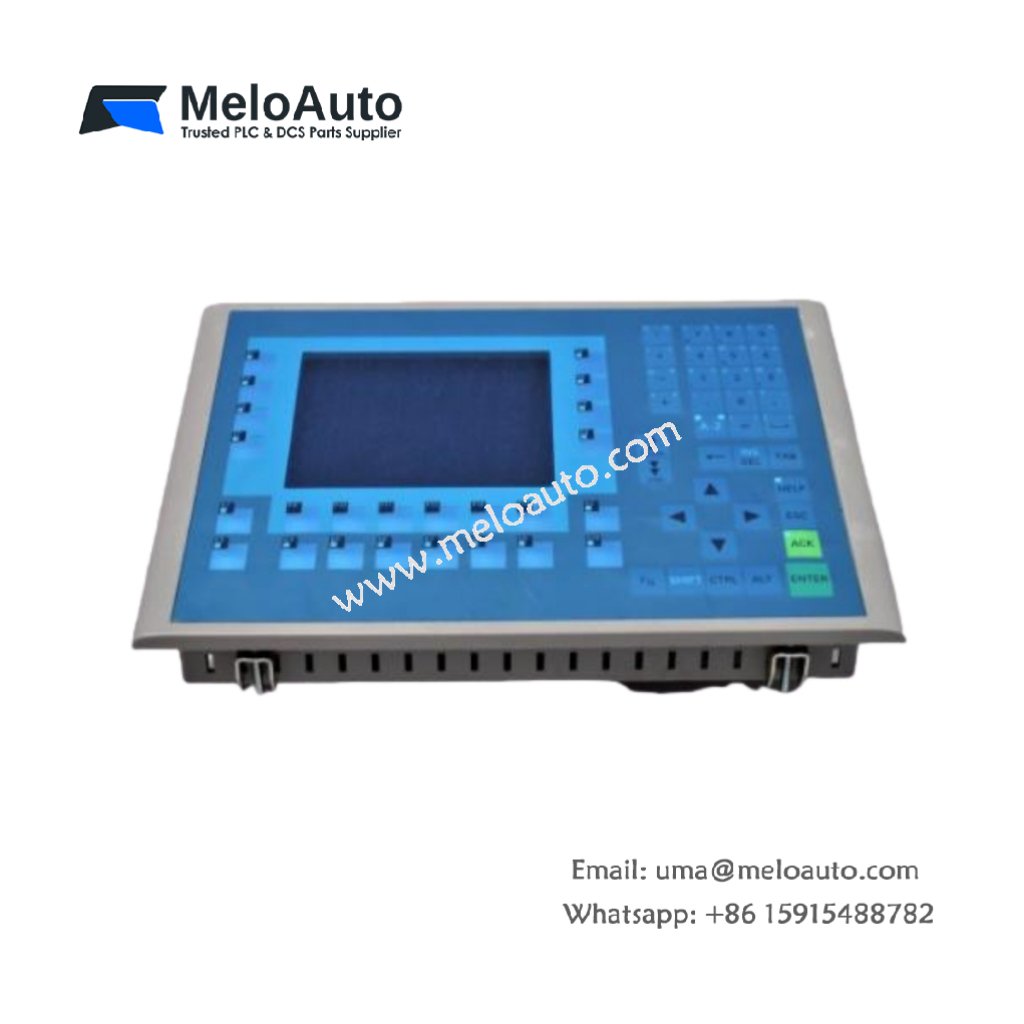

Meet the Siemens 6AV6643-0BA01-1AX0, a versatile and compact HMI panel from the SIMATIC family. This operator interface features a 5.7-inch STN color display with a resolution of 320 x 240 pixels. Moreover, it offers intuitive control through 24 physical function keys and an on-screen alphanumeric keyboard. Consequently, it provides an ideal solution for stand-alone machine operation, diagnostics, and basic process visualization.

Detailed Technical Specifications

The 6AV6643-0BA01-1AX0 panel combines a clear display with robust industrial connectivity. Below are its precise technical parameters for power and integration planning.

Core Functionality and Application

This panel displays process data, alarms, and operator screens for connected PLCs. Therefore, it allows operators to monitor machine status and input commands directly. Additionally, its 24 programmable function keys offer fast, one-touch access to critical functions or screen navigation.

The standard 24VDC power supply integrates easily into typical control cabinet layouts. Furthermore, for a complete and safe control system, ensure proper electrical protection. For example, integrating a RMS-TSG-TZ-C Static Trip device can safeguard the panel’s power circuit.

Engineered for Reliable Machine-Level Operation

Choosing the Siemens 6AV6643-0BA01-1AX0 means selecting a durable and user-friendly interface for demanding environments. Its combination of physical keys and a color display ensures reliable operation even with gloves. Ultimately, this HMI panel delivers essential visualization and control for a wide range of industrial automation tasks.
