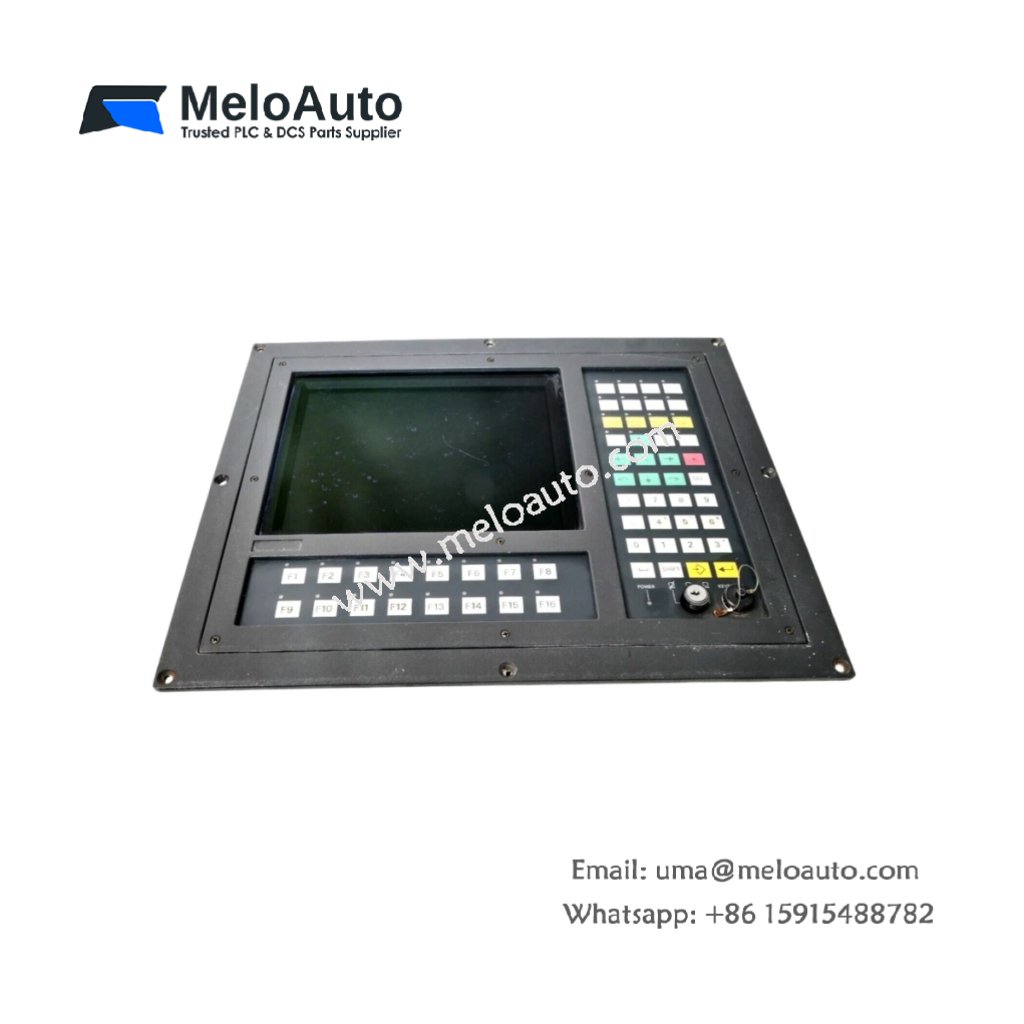

Siemens 6AV3530-1RS31 Operator Panel

The Siemens 6AV3530-1RS31 operator panel provides an intuitive and reliable interface for industrial automation systems. It allows operators to control and monitor machinery with ease, ensuring seamless communication between humans and machines. Designed for robust performance, this operator panel is ideal for use in demanding industrial environments.

Key Features of the Siemens 6AV3530-1RS31 Operator Panel

Model: 6AV3530-1RS31
Category: Operator Panel
Manufacturer: Siemens
Application: Industrial Automation, Human-Machine Interface (HMI)

Technical Specifications

Specification	Details
Display Type	TFT LCD, 256 Colors
Display Size	6.5 inches
Resolution	320 x 240 pixels
Touch Interface	Resistive Touch Screen
Communication Interfaces	RS232, RS485, Ethernet
Mounting Type	Panel Mount
Operating Temperature	-10°C to +50°C
Weight	1.5 kg
Dimensions (L x W x H)	180 mm x 120 mm x 40 mm
Power Supply	24 V DC
Protection Class	IP65 (front panel)

User-Friendly Display for Efficient Operation

The Siemens 6AV3530-1RS31 operator panel is equipped with a 6.5-inch TFT LCD screen, offering a bright and clear display. The screen supports 256 colors and a resolution of 320 x 240 pixels, making it easy for operators to read and interact with system data. The resistive touch interface provides accurate and responsive input, ensuring smooth operation even in challenging industrial settings.

Flexible Communication Options

This operator panel offers multiple communication interfaces, including RS232, RS485, and Ethernet. These connectivity options allow seamless integration with various industrial equipment and control systems. The 6AV3530-1RS31 ensures reliable data transmission between the operator and the system, improving overall operational efficiency and reducing the risk of miscommunication.

Durable Design for Harsh Environments

Built to withstand the rigors of industrial environments, the Siemens 6AV3530-1RS31 features a front panel with an IP65 protection class. This makes it resistant to dust and water ingress, ensuring safe and reliable performance in challenging conditions. The operator panel can be mounted easily on panels, making it a flexible solution for different machine configurations.

Compact and Lightweight

With compact dimensions of 180 mm x 120 mm x 40 mm and a weight of just 1.5 kg, the 6AV3530-1RS31 operator panel is lightweight yet durable. Its compact size ensures easy installation in limited spaces, while its robust build guarantees reliable operation over long periods.

Conclusion

The Siemens 6AV3530-1RS31 operator panel is an essential tool for operators in industrial automation systems. Its user-friendly display, flexible communication options, and durable design make it the perfect choice for a wide range of industrial applications. Whether you’re managing complex systems or simple processes, this operator panel ensures smooth and efficient operation.
