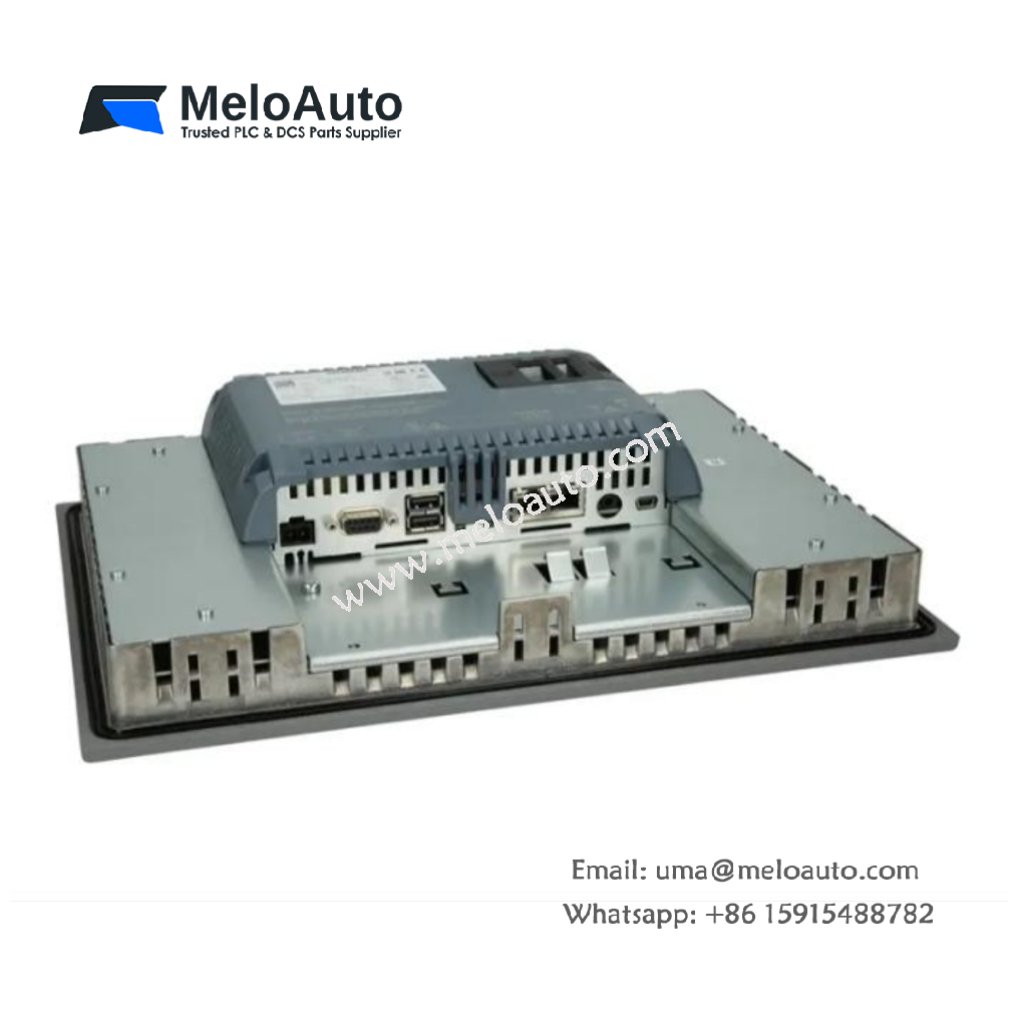

Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort HMI Panel

Siemens 6AV2124-0MC01-0AX0 TP1200 Comfort HMI Panel Overview

The Siemens TP1200 Comfort panel delivers high-performance human-machine interaction with a 12.1-inch widescreen TFT display. It supports 16 million colors and touch operation for intuitive control. The panel integrates PROFINET and MPI/PROFIBUS DP interfaces, ensuring seamless connectivity with industrial controllers. Configurable via WinCC Comfort V11, it provides flexible operation, recipe management, and robust diagnostics.

This HMI is ideal for vertical or landscape installation and operates reliably in temperatures from 0°C to 50°C. The aluminum front housing offers IP65 protection, making it suitable for demanding industrial environments.

Key Features

Display: 12.1″ TFT widescreen, 1280×800 pixels, 16 million colors
Touch Operation: Analog-resistive touchscreen with on-screen alphanumeric keyboard
Interfaces: PROFINET, MPI, PROFIBUS DP, Ethernet, 2 USB 2.0 ports
Memory: 12 MB user-configurable, Flash and RAM included
Operating System: Pre-installed Windows CE 6.0
Processor: X86 for fast and reliable HMI performance
Mounting: Vertical or portrait installation, max tilt 35° without external ventilation
Compliance: CE, cULus, RCM, ATEX Zone 2/22, Marine approvals (GL, ABS, BV, DNV, LRS, NK)
Backlighting: Dimmable 0–100%, MTBF 80,000 hours
Alarms & Recipe Management: 32 alarm classes, 300 recipes, 500 records per recipe
Archiving: Up to 50 archives, 20,000 entries per archive
Connectivity with Controllers: S7-1200, S7-1500, S7-200/300/400, LOGO!, SINUMERIK, SIMOTION, Allen Bradley, Mitsubishi, Modicon, OPC UA

Technical Specifications

Parameter	Specification
Model	6AV2124-0MC01-0AX0
Display	12.1″ TFT, 1280×800 pixels, 16M colors
Touch	Analog-resistive touchscreen, on-screen keyboard
Interfaces	PROFINET, MPI, PROFIBUS DP, Ethernet, 2×USB 2.0
Processor	X86
Memory	12 MB user data, Flash + RAM
Power Supply	24 V DC (19.2–28.8 V), 0.85 A typical, 20 W active
Mounting	Vertical/portrait, tilt max 35°
Protection	Front: IP65, Rear: IP20, NEMA 4/4X (front)
Operating Temp	0–50 °C (vertical), 0–40 °C (portrait, tilt)
Backlight MTBF	80,000 hours, dimmable 0–100%
Alarms	32 classes, 4,000 bit messages, 200 analog messages
Archiving	50 archives, 20,000 entries, USB/Ethernet/SD storage
Compliance	CE, cULus, RCM, ATEX Zone 2/22, GL/ABS/BV/DNV/LRS/NK approvals
