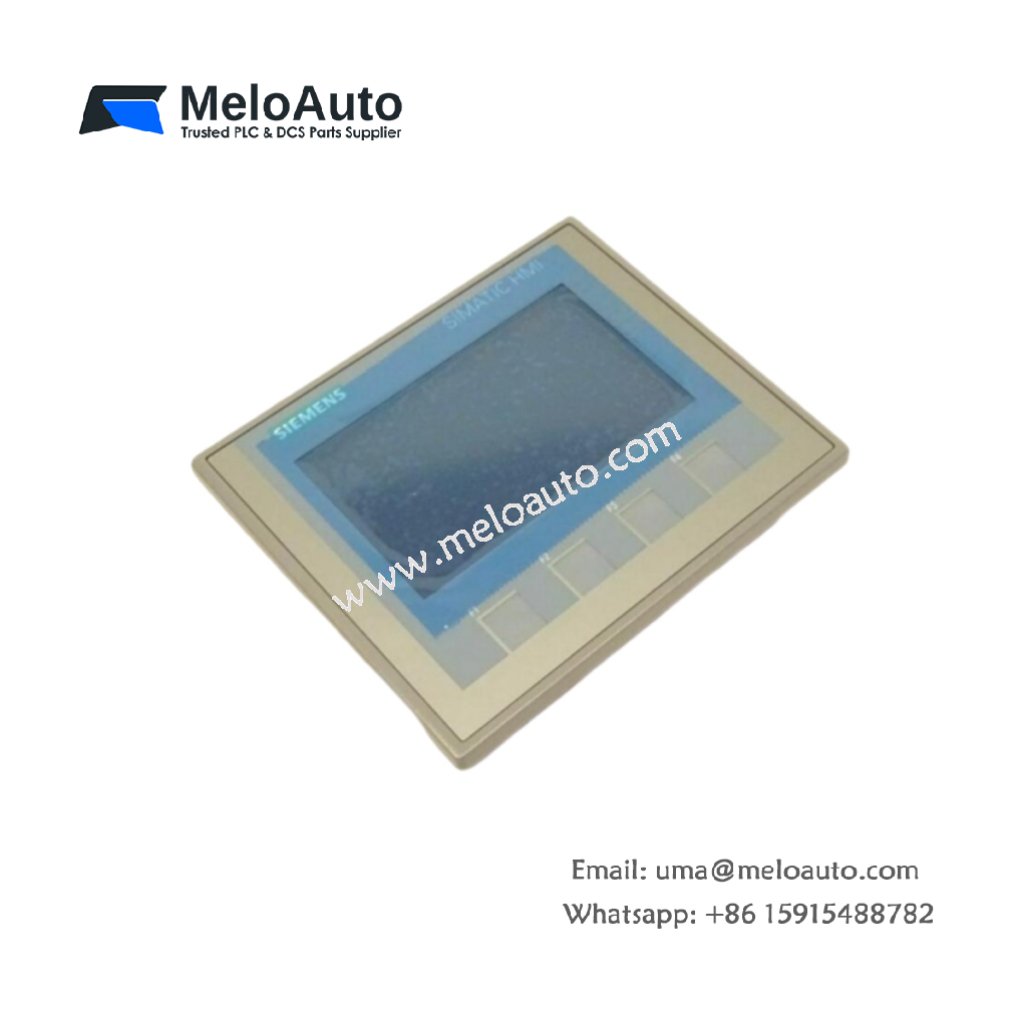

Siemens 6AV2123-2GA03-0AX0 SIMATIC HMI KTP700 Basic DP

The Siemens 6AV2123-2GA03-0AX0 is part of the SIMATIC HMI KTP700 Basic series. This Basic Panel integrates both key and touch operation with a high-quality 7″ TFT display. The panel offers exceptional performance with 65536 colors and PROFIBUS connectivity, making it a powerful solution for various industrial automation tasks.

Key Features and Specifications

Specification	Value
Manufacturer	Siemens
Model	6AV2123-2GA03-0AX0
Product Type	SIMATIC HMI, Basic Panel
Display Type	TFT, LED Backlighting
Display Size	7 inches (17.78 cm)
Display Resolution	800 x 480 pixels
Number of Colors	65536
Touchscreen Type	Analog-resistive
Mounting Type	Panel Mounting (Vertical/Horizontal)
Mounting Angle	Up to 35° without external ventilation
Supply Voltage	24V DC
Operating Voltage Range	19.2V to 28.8V DC
Backlight MTBF	20,000 hours
Configurable with Software	WinCC Basic V13, STEP 7 Basic V13
Free Software Included	Yes (via enclosed CD)
Interface	PROFIBUS

Detailed Overview

The Siemens 6AV2123-2GA03-0AX0 is designed to meet the demanding needs of industrial automation applications. With a 7-inch TFT widescreen display, it offers excellent visibility and clarity, ideal for environments requiring reliable human-machine interaction. The LED backlighting ensures a long operational life, rated at 20,000 hours under standard conditions.

Equipped with 65536 colors, the display guarantees sharp and accurate visuals for a variety of data-driven tasks. Additionally, the resolution of 800 x 480 pixels enhances the user experience by providing clear, detailed graphics for intuitive operation. The analog-resistive touchscreen allows for both key and touch operation, making it versatile and easy to use.

The panel is designed for panel mounting and can be installed in either portrait or landscape format. It can also be tilted up to 35° without needing external ventilation, which increases its flexibility in various industrial setups.

Operating on a 24V DC supply voltage, the Siemens 6AV2123-2GA03-0AX0 operates within a voltage range of 19.2V to 28.8V DC, ensuring stable performance across different power environments. The included PROFIBUS interface facilitates easy integration into existing automation systems, ensuring compatibility with other Siemens equipment.

Furthermore, this Basic Panel is configurable using WinCC Basic V13 and STEP 7 Basic V13, which are part of the Siemens software suite. These tools allow seamless customization of the panel’s interface and functions, enabling you to tailor the display to your specific application needs.

Why Choose the Siemens 6AV2123-2GA03-0AX0?

The Siemens 6AV2123-2GA03-0AX0 offers several distinct advantages for industrial applications. First, its 7-inch TFT display and 65536 colors ensure that operators can easily monitor and control machinery with clarity. Second, the PROFIBUS interface provides reliable communication with other devices, making integration straightforward. Third, the robust design and flexibility in mounting positions make it suitable for various environments.

This panel also offers a cost-effective solution for industrial automation needs. With included software and extensive configurability, it delivers exceptional value and flexibility, allowing you to optimize your processes.

Conclusion

The Siemens 6AV2123-2GA03-0AX0 SIMATIC HMI KTP700 Basic DP is an excellent choice for any industrial control system. With its high-performance display, easy integration, and flexible configuration options, it improves the user experience and system efficiency. Whether you are updating existing systems or building new ones, this Basic Panel ensures reliable, long-lasting performance.
