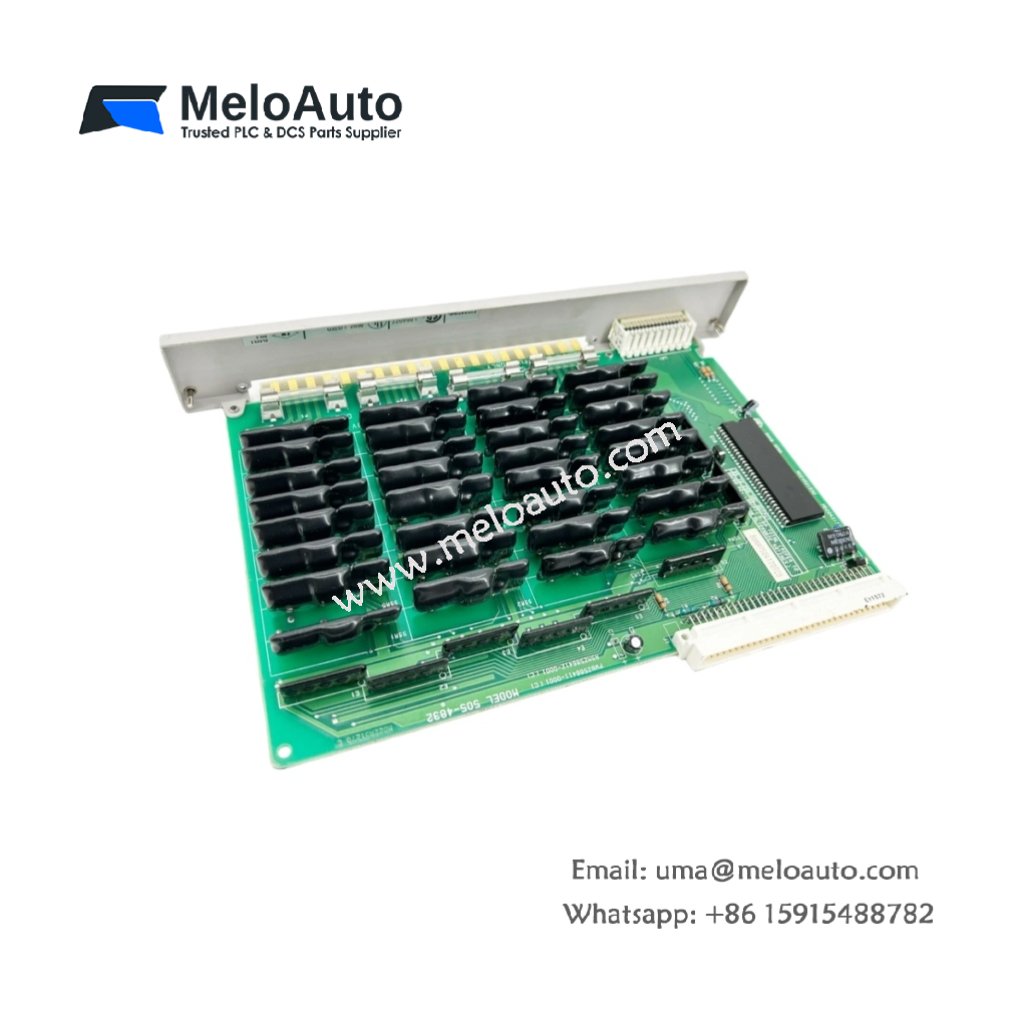

Siemens 505-4832 Digital Output Module

The Siemens 505-4832 is a high-performance digital output module that ensures efficient control in industrial automation systems. With 32 output channels, this module delivers reliable signal transmission and precise control for various applications. Supporting a wide voltage range from 85 to 256 VAC, it is highly versatile in different operational environments.

Key Features and Specifications

• Manufacturer: Siemens
• Model: 505-4832
• Product Type: Digital Output Module
• Input Voltage Range: 85-256 VAC
• Number of Outputs: 32
• Output Type: Digital
• Weight: 0.5 kg
• Dimensions: 120 mm (W) x 90 mm (H) x 40 mm (D)
• Mounting Type: DIN Rail
• Environmental Conditions:
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -20°C to +70°C
  • Humidity: 5% to 95% RH, non-condensing

Detailed Overview

The Siemens 505-4832 digital output module provides excellent flexibility and high performance. It supports an input voltage range of 85-256 VAC, making it suitable for a broad spectrum of industrial applications. Thanks to its 32 digital outputs, the module integrates easily into larger systems and ensures reliable signal output for various operations.

With a compact design, measuring 120 mm in width, 90 mm in height, and 40 mm in depth, the module fits efficiently into confined spaces. Additionally, it features DIN rail mounting, allowing for quick and straightforward installation or removal in control panels. This feature not only saves installation time but also simplifies ongoing maintenance.

The module operates reliably within an ambient temperature range of -10°C to +60°C, ensuring stable performance even in harsh environments. Furthermore, it can be stored in conditions ranging from -20°C to +70°C, offering flexibility in storage without risk of damage. Thanks to its ability to function in high-humidity environments (up to 95% RH, non-condensing), it proves ideal for use across a variety of sectors, such as manufacturing and automation.

This digital output module delivers robust, accurate outputs to control actuators, relays, and other devices. As a result, the Siemens 505-4832 is a dependable solution for automation control and industrial systems.

Conclusion

The Siemens 505-4832 digital output module excels in both flexibility and reliability. Its 32 outputs, wide voltage range, and compact size make it an ideal choice for various industrial environments. Additionally, its ability to perform reliably in diverse temperature and humidity conditions ensures smooth operation, regardless of the working environment.
