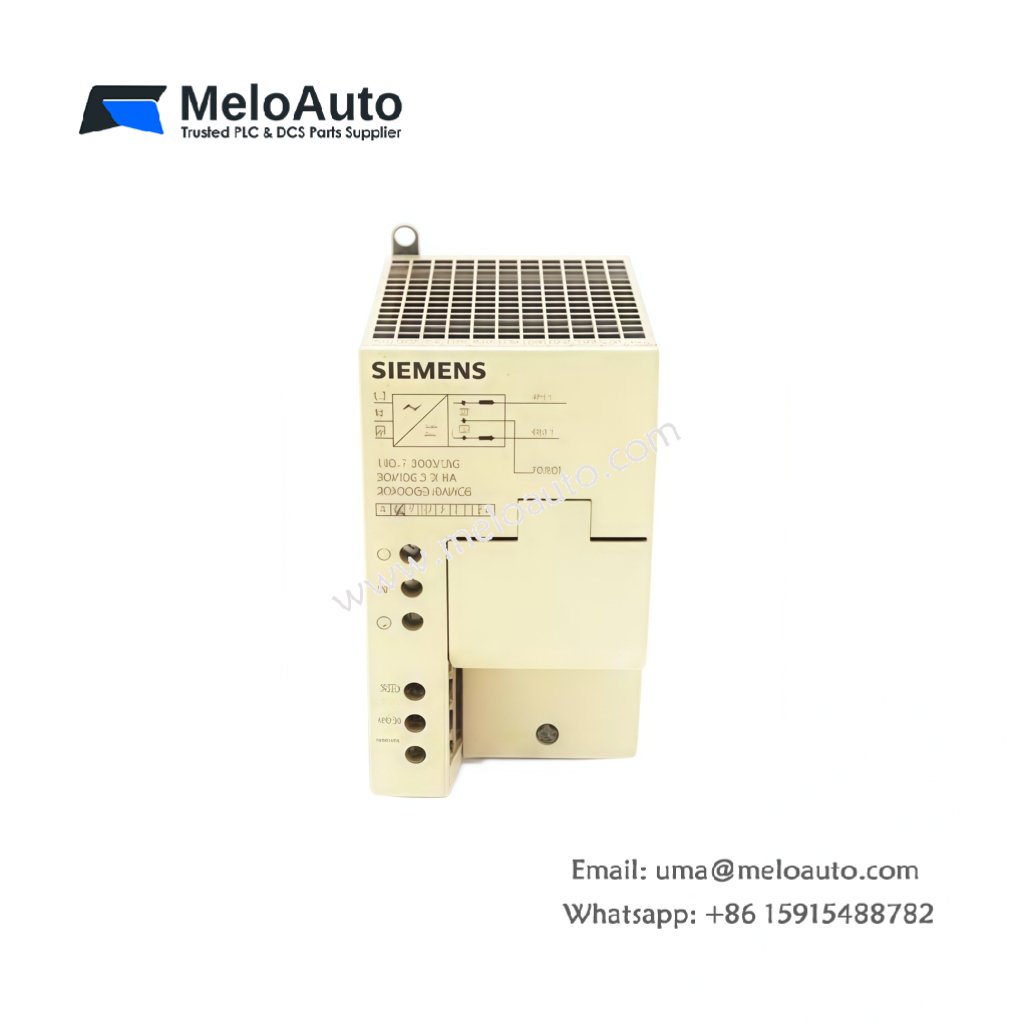

Siemens 3RX9300-0AA00 AS-Interface Power Supply

Industrial sensor networks require dedicated power supplies for reliable operation. The Siemens 3RX9300-0AA00 power supply unit delivers this essential function for AS-Interface systems. This unit provides regulated power to AS-Interface networks. It ensures stable communication between sensors, actuators, and the master controller.

Technical Architecture and Specifications

This power supply features a compact housing suitable for DIN rail mounting. Its dimensions measure 7.5 cm in width and 12.5 cm in height. The Siemens 3RX9300-0AA00 weighs approximately 0.6 kilograms for secure installation. It connects to the system via screw terminal blocks for input and output wiring. These terminals accept AWG 14 to 18 gauge conductors securely.

The internal assembly contains a single integrated circuit board with power conversion circuits. Engineers will note the switching power supply topology for efficient operation. This design minimizes heat generation and improves reliability. The unit accepts 120 V AC or 230 V AC input power automatically. It provides 30 V DC output specifically for AS-Interface network requirements.

Power and Protection Features

The Siemens 3RX9300-0AA00 delivers 30 V DC at 2.2 amperes continuous output. This output provides sufficient power for up to 62 standard AS-Interface slaves. For network protection, it includes integrated data decoupling for AS-Interface communication. The unit also features overload and short-circuit protection for safe operation. Status LEDs indicate input power, output voltage, and fault conditions clearly. You can explore similar industrial power solutions here for reference.

Specification	Detail
Model	3RX9300-0AA00
Manufacturer	Siemens
Product Line	AS-Interface
Dimensions (W x H)	7.5 cm x 12.5 cm
Weight	0.6 kg
Input Voltage	120/230 V AC (Auto-Ranging)
Output Voltage	30 V DC
Output Current	2.2 A
Network Type	AS-Interface
Protection	Overload, Short-Circuit
Mounting	DIN Rail
Enclosure Rating	IP20

System Integration and Reliability

The Siemens 3RX9300-0AA00 operates reliably across standard industrial environments. It functions within a temperature range of 0°C to 55°C. The integrated data decoupling eliminates the need for external components. This simplification reduces installation time and wiring complexity. Maintenance personnel can monitor power status through front-panel LEDs. The unit supports continuous operation for AS-Interface network power requirements.
