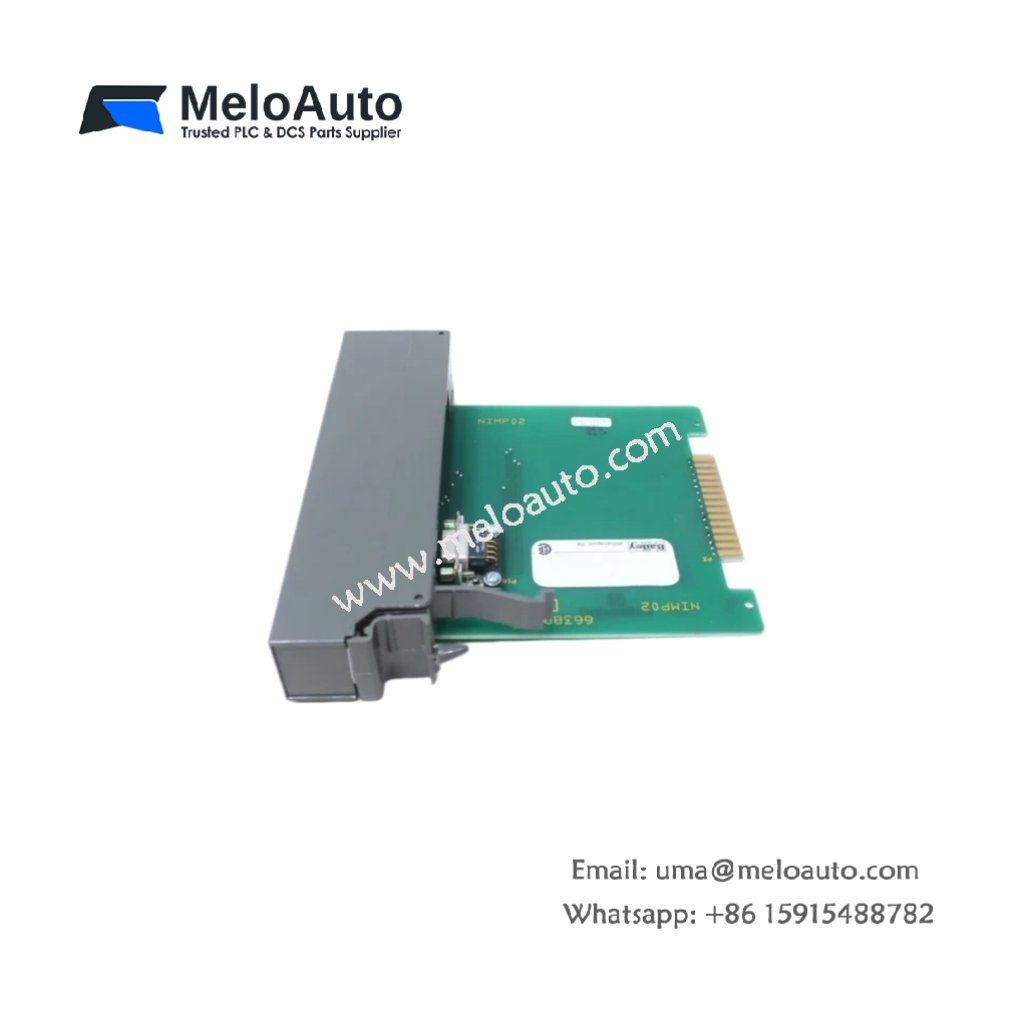

ABB Bailey NIMP02 Multi-Function Processor Termination Module

The NIMP02 functions as a multi-function termination module for ABB Bailey processor systems. This ABB unit provides signal conditioning and termination for field wiring connections. We engineered this module to simplify installation while maintaining signal integrity in industrial environments.

Technical Specifications and Design Features

This termination module weighs approximately 0.48 kilograms. Its dimensions measure 280 millimeters in height, 35 millimeters in width, and 280 millimeters in depth. The unit features a rugged metal housing with integrated terminal blocks for field wiring.

Engineers will appreciate the multi-signal capability of the NIMP02. This module accepts digital, analog, RTD, and thermocouple inputs. Consequently, users can terminate diverse field devices using a single termination assembly.

Furthermore, the integrated cold junction compensation ensures accurate thermocouple measurements. The NIMP02 automatically compensates for temperature variations at the terminal block. This feature eliminates the need for external reference junction devices.

Termination and Protection Features

The NIMP02 provides 32 screw terminals for field wiring connections. Each terminal accepts wires from 0.2 to 2.5 mm² for flexible installation. Individual channel fuses protect connected processors from wiring faults and short circuits.

The module delivers 1.5 kilovolts of isolation between adjacent channels. This isolation prevents signal interference between circuits. Engineers can rely on this feature for reliable operation in dense wiring configurations.

System Integration and Installation

You can mount this termination module adjacent to INFI 90 processor racks. The NIMP02 connects to processors through standard ribbon cables. This design keeps field wiring separate from processor electronics for easier maintenance.

The module requires 24V DC from an external power supply for active components. It consumes only 2.5 watts during normal operation. For reference, other Bailey INFI 90 termination products share this same form factor and mounting method.

Diagnostics and Operational Reliability

The NIMP02 includes visual indicators for power and fuse status. Blown fuse indicators alert operators to channel faults immediately. The module features a rugged design that withstands vibration and temperature variations. These characteristics ensure long-term reliability in demanding industrial applications.
