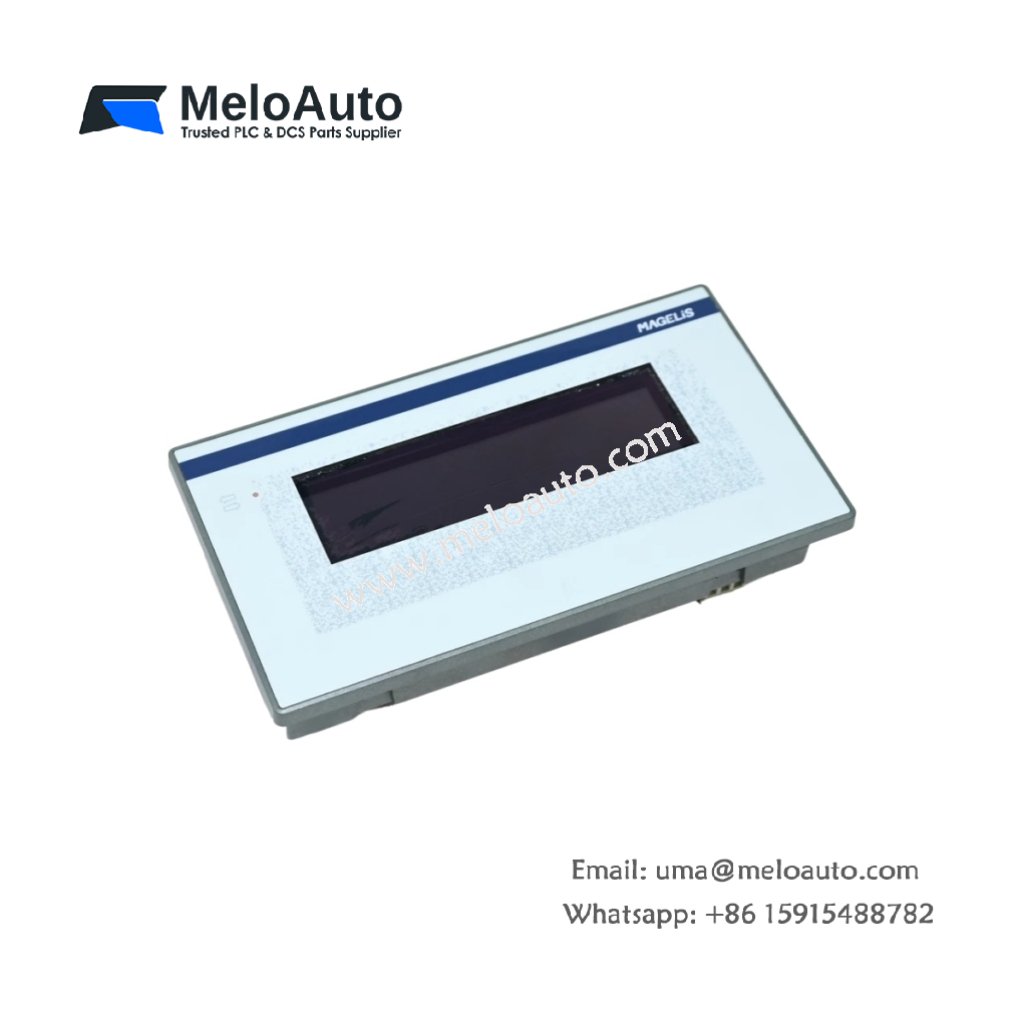

Schneider XBT HM007010 Operator Interface

Overview

The Schneider XBT HM007010 is a powerful Operator Interface designed to simplify interaction between operators and industrial automation systems. It offers seamless control and monitoring, making it ideal for a variety of industrial environments. Whether for manufacturing, process control, or robotic systems, the XBT HM007010 ensures smooth operation by delivering high-quality, real-time data to the operator.

This interface combines a 7-inch TFT color LCD display with a resistive touchscreen. As a result, it provides an intuitive and responsive user experience, enabling operators to make quick decisions and adjustments.

Key Technical Specifications

Below are the detailed specifications of the Schneider XBT HM007010 Operator Interface:

Specification	Details
Model Number	XBT HM007010
Product Type	Operator Interface
Display Type	TFT Color LCD Display
Display Size	7 inches
Resolution	800 x 480 pixels
Touchscreen Type	Resistive Touchscreen
Weight	1.2 kg (2.65 lbs)
Dimensions (W x H x D)	203 mm x 137 mm x 44 mm
Input Power	24 V DC
Communication Ports	Ethernet, Serial (RS232/RS485)
Mounting Type	Panel Mount
Operating Temperature Range	0°C to 50°C
Storage Temperature Range	-20°C to 60°C
Protection Class	IP65 (front)
RoHS Compliant	Yes

Features of the XBT HM007010 Operator Interface

Intuitive Display and Touchscreen: The 7-inch TFT color LCD display with 800 x 480 pixel resolution ensures clear and readable visuals. Furthermore, the resistive touchscreen responds quickly to operator inputs, even when using gloves.
Compact and Rugged Design: With dimensions of 203 mm x 137 mm x 44 mm and a weight of 1.2 kg, the XBT HM007010 is compact enough for easy integration into panels. It is also durable and able to withstand harsh industrial environments.
Wide Temperature Range: This interface operates smoothly within a temperature range of 0°C to 50°C and can be stored in temperatures from -20°C to 60°C, making it suitable for a wide range of industrial conditions.
Versatile Communication Options: The XBT HM007010 includes Ethernet and Serial (RS232/RS485) ports, ensuring compatibility with a variety of automation systems and allowing for reliable data transmission.
IP65 Protection: Rated IP65 on the front, the interface is dust-tight and resistant to water splashes, making it highly durable and reliable for industrial settings where environmental protection is essential.
Efficient Power Supply: It operates with a 24 V DC power supply, offering a consistent and reliable power source for continuous operation in demanding applications.

Applications of the XBT HM007010 Operator Interface

The Schneider XBT HM007010 is ideal for use in various industrial automation applications:

Manufacturing Systems: It simplifies monitoring and control in automated manufacturing processes, allowing operators to manage production lines and machinery effectively.
Process Control: Used extensively in industries like food processing, chemicals, and energy management, the XBT HM007010 enables operators to monitor and adjust key process parameters in real time.
Robotics Control: It is an excellent choice for controlling robotic systems, offering responsive and precise interaction for tasks such as assembly, welding, and packaging.
Machine Integration: The XBT HM007010 is easy to integrate into existing systems, thanks to its simple panel mounting design and versatile communication options.

Why Choose the XBT HM007010 Operator Interface?

Choose the Schneider XBT HM007010 for its combination of high-quality features and reliable performance. With its 7-inch display, resistive touchscreen, and IP65 protection, it guarantees smooth operation in tough industrial environments. The XBT HM007010 offers quick data interaction, real-time control, and easy integration into your automation system, making it a reliable choice for any industrial application.
