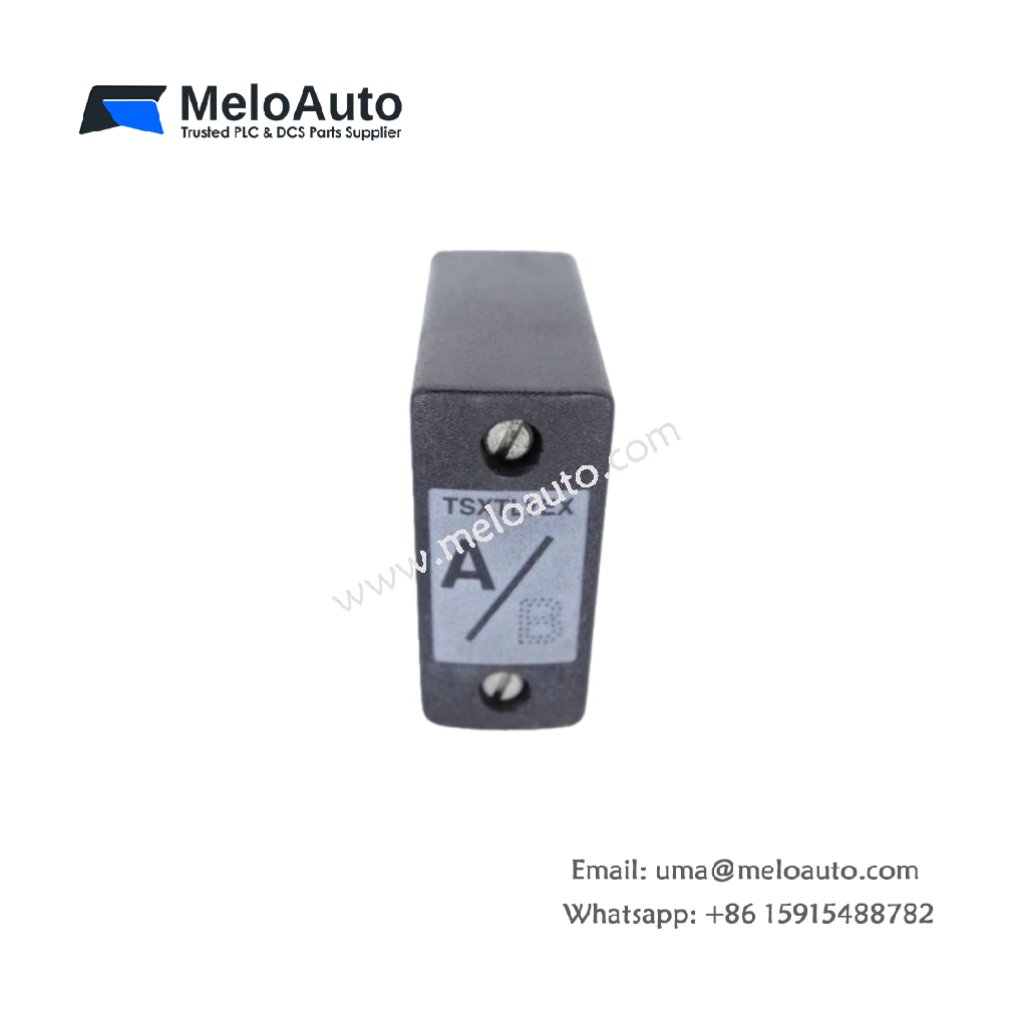

Schneider TSXTLYEX Line Terminator

Overview

The Schneider TSXTLYEX line terminator is a key accessory designed for use with the Modicon Premium Automation platform. It ensures reliable signal termination at the end of communication lines, preventing signal reflection and optimizing system performance. This set of two line terminators is easy to install, and it plays a crucial role in maintaining data transmission integrity.

Key Features

Signal Termination: The TSXTLYEX effectively terminates signals, improving the overall communication reliability within automation systems.
Tailored for Modicon Premium: Specifically designed for the Modicon Premium Automation platform, it integrates seamlessly with existing systems.
Two Pieces per Set: This set includes two line terminators, providing full signal integrity for systems that require multiple terminations.
Compact and Durable: Built to withstand demanding industrial environments, the TSXTLYEX offers both a compact form factor and robust construction.
Simple Installation: Its straightforward design enables easy and quick installation in compatible automation racks.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	TSXTLYEX
Product Type	Line Terminator
Category	Accessory / Separate Part
Product Range	Modicon Premium Automation Platform
Set Quantity	2 pieces per set
Accessory Type	Connection Accessory
Rack End	Yes
Compatibility	Modicon Premium Automation Platform
Dimensions	Compact, space-saving design
Weight	Lightweight for easy handling and installation
Power Consumption	Minimal, no external power required
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Material	Durable material for long-lasting use

Applications

The Schneider TSXTLYEX line terminator is suitable for various applications, including:

Industrial Automation Systems: It ensures optimal performance and reliable signal transmission within automation networks and control systems.
Communication Networks: Use it at the end of communication lines to maintain signal accuracy and prevent interference.
Rack-Based Systems: Ideal for rack-mounted systems, it ensures proper termination at the rack’s end.
Modicon Premium Platform: Designed for seamless integration with the Modicon Premium Automation platform, the TSXTLYEX guarantees compatibility and superior performance.
