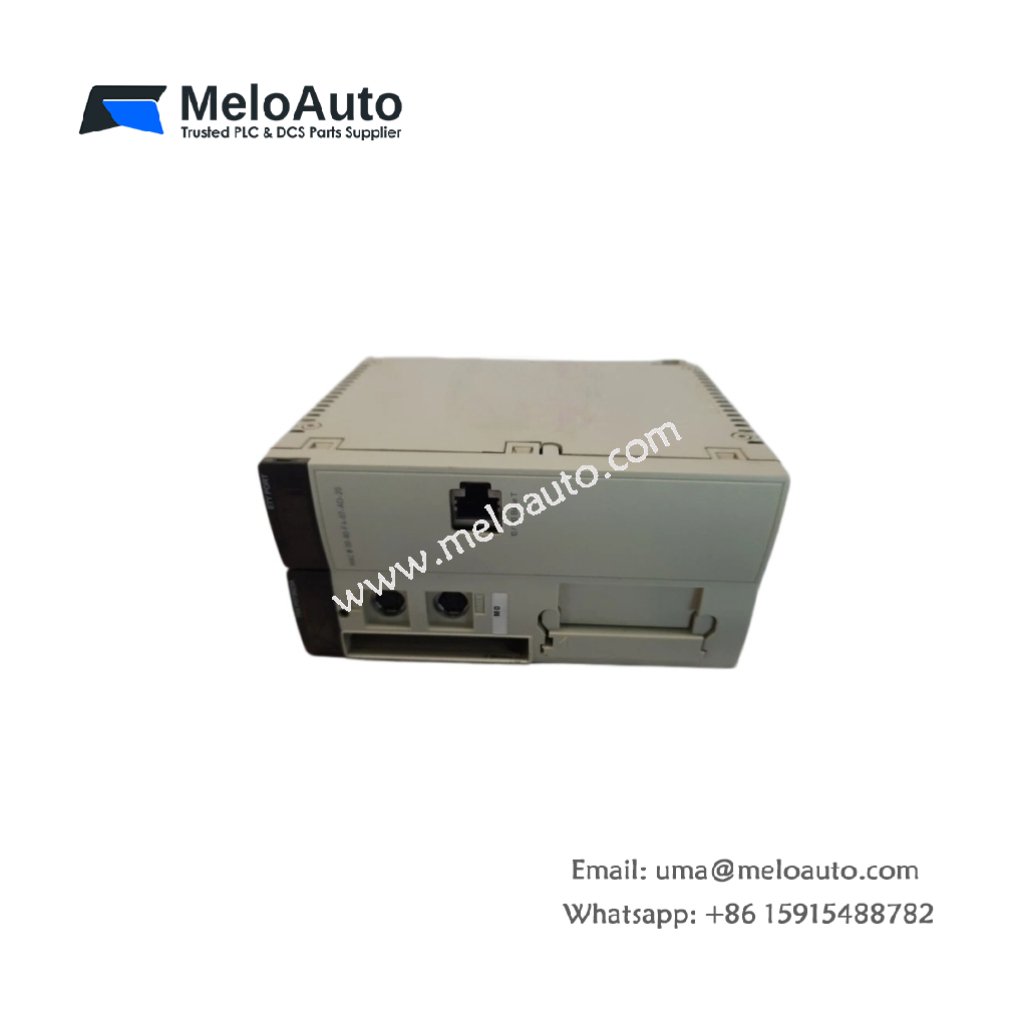

Schneider TSXP573623AM Double-Format PL7 Processor

The Schneider TSXP573623AM is a high-performance double-format PL7 processor designed for reliable and efficient industrial automation systems. It delivers powerful processing capabilities and a wide range of connectivity options, making it suitable for complex automation tasks.

Key Features of the TSXP573623AM Double-Format PL7 Processor

The TSXP573623AM processor is engineered to handle demanding control tasks. With a versatile design and robust specifications, it supports high I/O capacities and multiple communication options. This processor is ideal for systems that require fast processing and reliable data management.

Module Type: Double-format PL7 Processor
Manufacturer: Schneider Electric
Model: TSXP573623AM
Software Designation: PL7 Junior/Pro Concept
Product Line: PL7 Series

Technical Specifications

The TSXP573623AM processor is designed to offer exceptional performance, supporting various I/O configurations and communication protocols. Below are the key technical details:

Parameter	Details
Number of Racks	16 (4/6/8 slots), 8 (12 slots)
Number of Slots	128, 64, 96
Discrete I/O Processor Capacity	1024 I/O
Analogue I/O Processor Capacity	128 I/O
Number of Application Specific Channels	≤ 32
Number of Process Control Channels	≤ 15, up to 45 simple loops
Integrated Connection Types	Ethernet TCP/IP RJ45 (10/100 Mbit/s), Non-isolated Serial Link (2 female mini DIN, 19.2/115 kbit/s)
Communication Module Processor Capacity	2 fieldbus, 2 network modules, 1 fieldbus module (1 if CANopen used), 8 AS-Interface bus modules
Memory Description	Internal RAM (with PCMCIA card): 80 Kwords data, Internal RAM (without PCMCIA card): 64 Kwords program and data, PCMCIA card: 2688 Kwords additional data storage, PCMCIA card: 384 Kwords program
System Overhead	0.29 ms fast task, 1.15 ms master task
Current Consumption	1360 mA at 5V DC
Module Format	Double-format
Operating Temperature	0…60°C
Storage Temperature	-25…70°C
Relative Humidity	10…95% (operation), 5…95% (storage) without condensation
Operating Altitude	0…2000 m
Product Weight	0.80 kg (1.76 lbs)
Shipping Weight	2 kg

I/O and Memory Capacity

The TSXP573623AM processor supports up to 1024 discrete I/Os and 128 analog I/Os, making it ideal for handling large-scale industrial systems. It also supports up to 45 simple process control loops and 32 application-specific channels.

In terms of memory, the processor offers 80 Kwords of data memory with a PCMCIA card and 64 Kwords of program and data memory without the card. Additionally, the processor can handle up to 2688 Kwords of additional data storage through the PCMCIA card, allowing for extensive program and data management.

Connectivity and Communication

The TSXP573623AM offers several communication options to ensure smooth integration into your automation systems. It features Ethernet TCP/IP via RJ45 (10/100 Mbit/s) for high-speed network connections and a non-isolated serial link (2 female mini DIN, 19.2/115 kbit/s) for reliable data transfer.

This processor can support up to two fieldbus networks, two network modules, and eight AS-Interface bus modules. It is also compatible with CANopen, making it adaptable to various industrial automation protocols.

Energy Efficiency and Durability

The TSXP573623AM operates efficiently with a current consumption of 1360 mA at 5V DC. This energy-efficient design makes it suitable for continuous operation in industrial environments. The processor also operates within a wide temperature range (0…60°C for operation, -25…70°C for storage) and can withstand relative humidity levels of 10-95% (without condensation during operation).

Weighing just 0.80 kg (1.76 lbs), the processor is lightweight and easy to install. Its double-format design ensures durability while providing flexibility for integration into existing systems.

Applications

The TSXP573623AM processor is ideal for a variety of industrial applications, including:

Manufacturing automation
Process control systems
Machine monitoring and diagnostics
Control systems integration

Its high I/O capacity and memory management make it an excellent choice for large-scale automation projects, such as factory control systems, process monitoring, and machine automation.

Conclusion

The Schneider TSXP573623AM double-format PL7 processor combines high performance, robust memory, and versatile connectivity options in a compact design. It offers powerful processing capabilities for complex industrial applications, making it an excellent choice for manufacturers seeking efficiency, reliability, and scalability in their automation systems.
