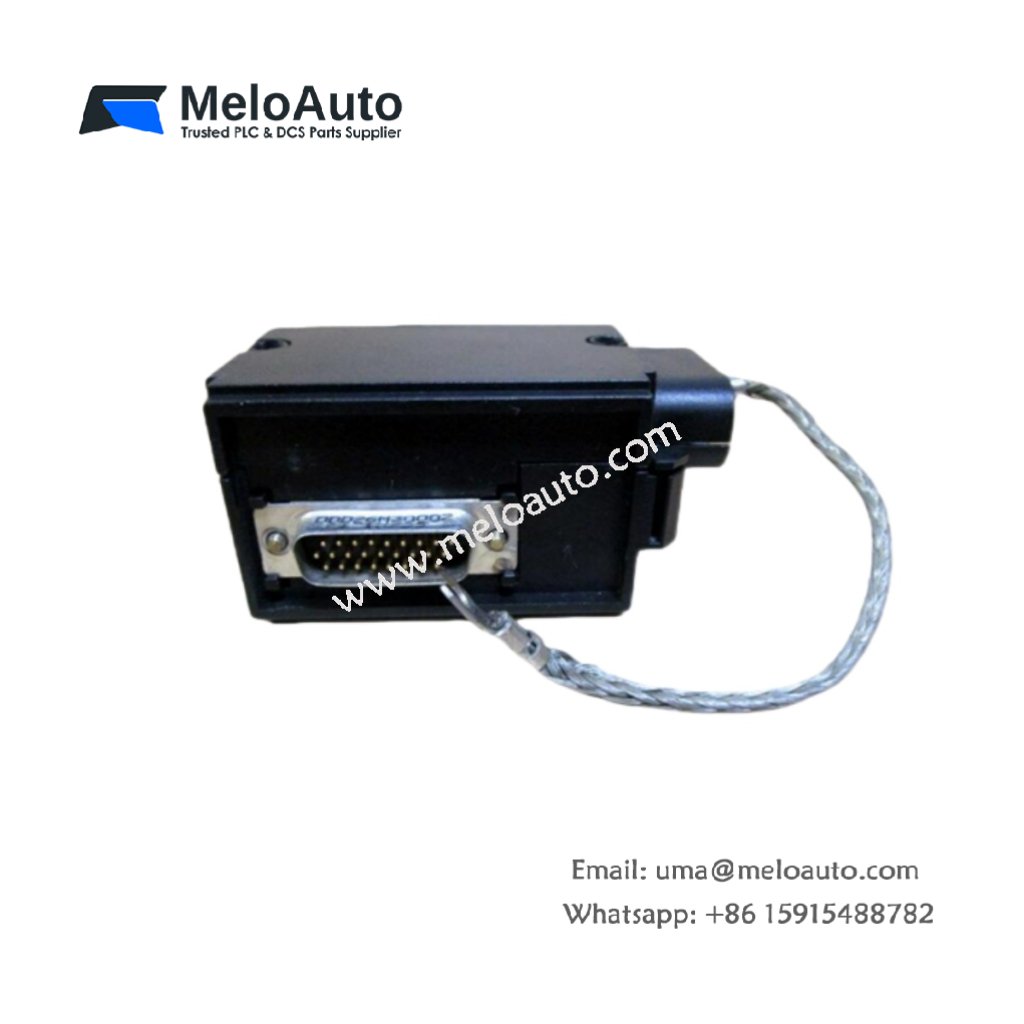

Schneider TSXLES65 Connection Block

Overview

The Schneider TSXLES65 is a connection block within the Modicon TSX 47 series, designed for efficient electrical connections in Schneider Electric’s automation systems. This unit, also known as Telemecanique TSXLES65, serves as a junction box that links various electrical components, such as sensors, actuators, and power supplies, in PLC systems.

Key Features and Benefits

Modular Design: The TSXLES65 features a compact, modular design that seamlessly integrates into the Modicon TSX 47 rack system, making it easy to organize and connect electrical components.
20 Terminals: This unit offers 20 terminals (10 pairs), each equipped with screw terminals for a secure connection.
Versatile Wiring: It supports wire sections ranging from 0.5 to 2.5 mm², providing flexibility for various wire gauges.
Reliable Power Handling: The connection block can handle a rated voltage of 250V AC/DC and a rated current of 12A per terminal, ensuring dependable power distribution in industrial settings.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric (formerly Telemecanique)
Product Type	Connection Block
Platform	Modicon TSX 47
Part Number	TSXLES65
Number of Terminals	20 (10 pairs)
Terminal Type	Screw Terminals
Wire Section	0.5 to 2.5 mm²
Rated Voltage	250V AC/DC
Rated Current	12A per terminal
Application	Junction Box for electrical connections

Practical Application

The Schneider TSXLES65 is perfect for creating organized, secure connections within Modicon TSX 47 PLC systems. It serves as a junction box for efficiently connecting components such as sensors, actuators, and power supplies. The screw terminal design ensures stable and reliable connections, even with varying wire sizes.

With a modular design, the TSXLES65 offers flexibility for system expansion or modification. Its installation and removal are quick and straightforward, ensuring minimal downtime during maintenance or system updates.

Installation and Maintenance

The TSXLES65 is easy to install and maintain, thanks to its user-friendly design. Whether for initial setup or modifications, the unit’s compact size allows for seamless integration into the Modicon TSX 47 automation platform.

Conclusion

For those looking for a reliable and efficient solution for electrical connections in PLC systems, the Schneider TSXLES65 is a key component. With its 20 terminals, 250V AC/DC rated voltage, and 12A rated current per terminal, this connection block ensures reliable power distribution and connectivity. Its modular design allows for easy integration and maintenance, making it a crucial element in industrial automation systems.
