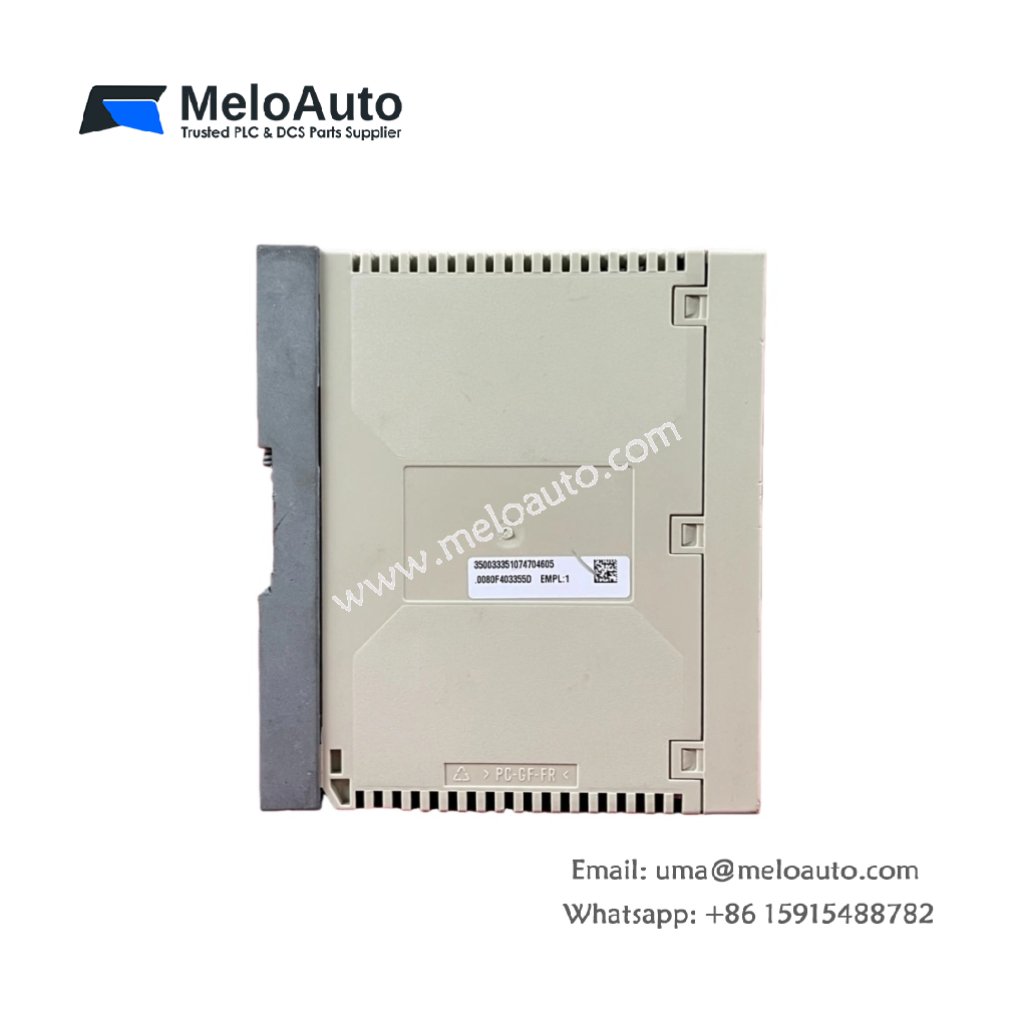

Schneider TSXETZ510 Ethernet Module for TSX Micro PLCs

The Schneider TSXETZ510 is a versatile Ethernet module designed for seamless communication within TSX Micro PLC systems. With support for Ethernet data rates of 10/100 Mbit/s, it allows smooth data transfer and easy integration into existing network infrastructures. Built with reliability and efficiency in mind, the TSXETZ510 ensures stable communication across a wide range of industrial applications.

Key Features of the Schneider TSXETZ510 Ethernet Module

Seamless Integration: The TSXETZ510 is transparent ready, ensuring smooth integration into existing Ethernet networks.
High-Speed Communication: It supports Ethernet data rates of 10/100 Mbit/s, optimizing communication speed within PLC systems.
Wide Compatibility: Designed to support up to 64 devices via Ethernet and 2 devices via modem serial link.
Robust Performance: With a low power dissipation range of 2.4 to 4 watts, this module ensures energy efficiency while maintaining performance.

Technical Specifications

Specification	Details
Product Type	Ethernet Module
Part Number	TSXETZ510
Product Line	TSX Micro PLCs
Manufacturer	Schneider Electric
EAN	3595862042901
Weight	0.94 lbs (0.43 kg)
Ethernet Data Rate	10/100 Mbit/s
Modem Serial Link Data Rate	56 kbit/s maximum
Rated Supply Voltage	24 VDC
Interface	RS-232
Max. Connected Devices (Ethernet)	64 star
Max. Connected Devices (Modem Serial Link)	2 star
Max. Cable Distance between Devices	100 meters
Input Over-voltage Protection	34V
Power Dissipation	2.4 to 4 Watts
Current Consumption	50 to 200 mA

Product Description

The Schneider TSXETZ510 Ethernet module provides a reliable communication interface for TSX Micro PLCs, ensuring smooth and transparent integration into existing Ethernet-based networks. Supporting data rates of up to 100 Mbit/s, it ensures high-speed communication between multiple devices.

Designed for energy efficiency, the TSXETZ510 offers low power dissipation (2.4 to 4 watts) while delivering optimal performance. This module connects up to 64 devices over Ethernet and 2 devices via the modem serial link interface, allowing for flexible network configurations.

With a rated supply voltage of 24 VDC and an input over-voltage protection of 34V, the TSXETZ510 guarantees both reliability and protection against electrical surges. The RS-232 interface further enhances its connectivity options.

Applications

The Schneider TSXETZ510 is ideal for the following applications:

Industrial automation systems requiring Ethernet connectivity for multiple devices.
PLC networks that demand fast and reliable communication.
Energy-efficient networking solutions in industrial environments with high communication needs.
