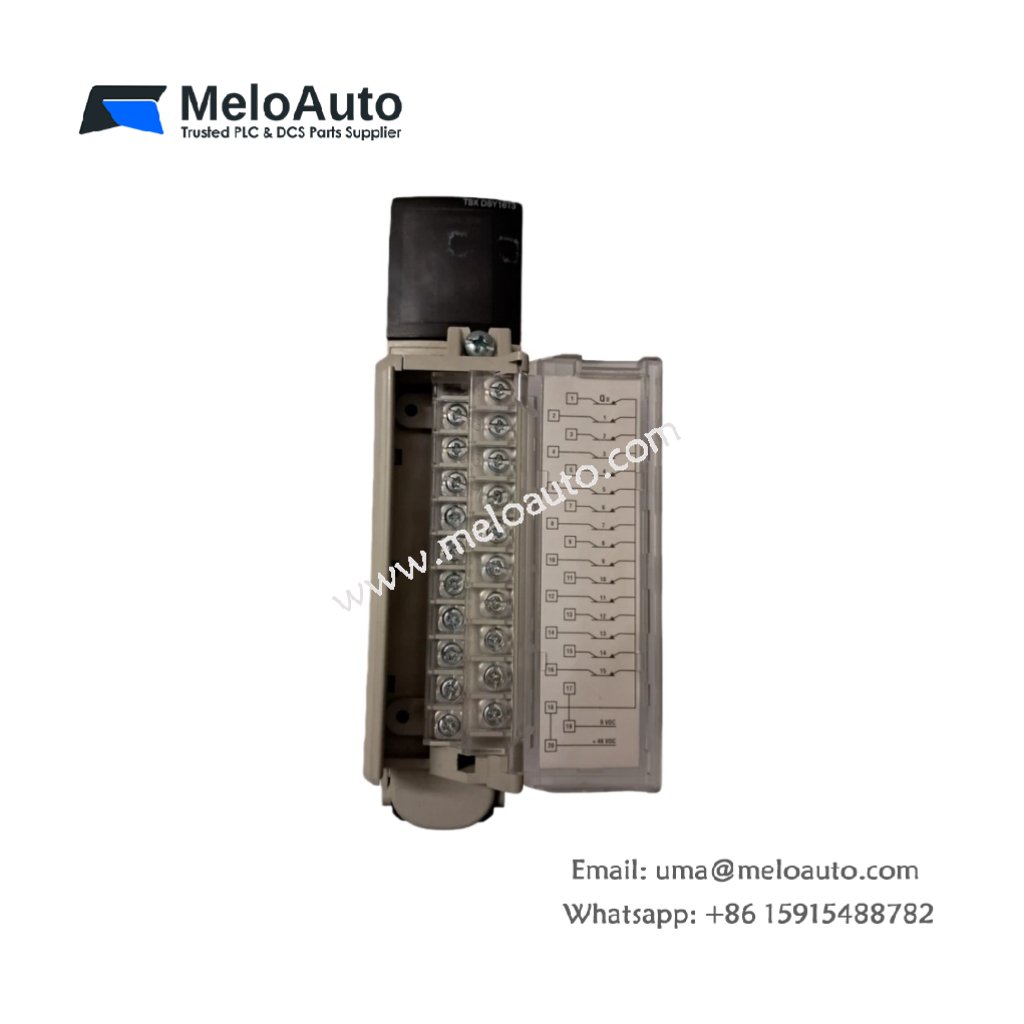

Schneider TSXDSY16T3 Discrete Output Module

The Schneider TSXDSY16T3 is a high-performance discrete output module designed for precise control and automation. With 16 solid-state outputs, this module operates at 48 VDC and offers reliable protection and fast response times, making it ideal for demanding industrial applications.

Key Features of the Schneider TSXDSY16T3 Discrete Output Module

16 Discrete Outputs: Supports 16 outputs, allowing for versatile control and data management.
Solid-State Design: Provides solid-state protection for secure operation and longevity.
48 VDC Operation: Designed for systems operating at 48 VDC for optimal performance.
Output Current: Each output supports up to 0.25 A, ensuring robust performance across all channels.
Fast Response Time: With a response time of just 1.2 milliseconds, it delivers quick and efficient control.
Screw Terminal Block: Simplifies installation and maintenance with easy-to-use screw terminal connections.

Technical Specifications for Schneider TSXDSY16T3

Feature	Specification
Manufacturer	Schneider Electric
Product Line	Modicon
Part Number	TSXDSY16T3
Input Type	Discrete Output Module
Number of Outputs	16 outputs
Operating Voltage	48 VDC
Output Current per Channel	0.25 A per output
Response Time	1.2 milliseconds
Protection	Solid State Protected
Terminal Type	Screw terminal block
Weight	0.35 kg
Dimensions	120 mm x 80 mm x 45 mm
IP Rating	IP20

Product Description

The Schneider TSXDSY16T3 is a discrete output module within the Modicon series, engineered for reliability and fast performance in industrial control systems. With 16 outputs, each supporting 0.25 A, this module offers excellent scalability for various applications. The 48 VDC operating voltage ensures compatibility with a wide range of systems.

Featuring a rapid response time of just 1.2 milliseconds, the TSXDSY16T3 ensures that your control signals reach their destination with minimal delay. This module also provides solid-state protection, which safeguards against electrical faults and prolongs its service life.

The module uses a screw terminal block for simple installation and maintenance. The robust construction ensures that it can withstand demanding industrial environments while maintaining reliable performance.

Applications

Industrial Automation: Ideal for controlling actuators, relays, and other industrial components in manufacturing systems.
Building Automation: Suitable for controlling HVAC systems, lighting, and other building management systems.
Energy Management: Perfect for use in energy monitoring and control systems.
