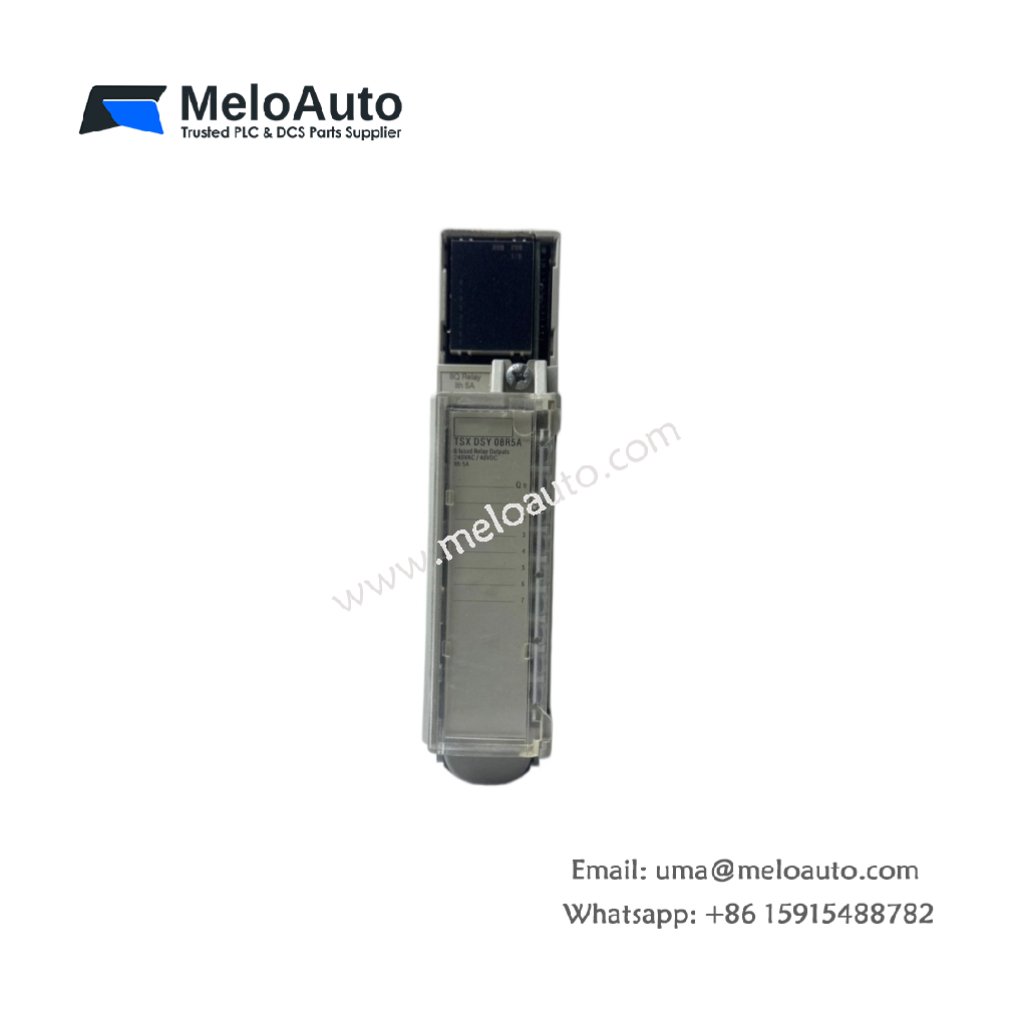

Schneider TSXDSY08R5 Discrete Output Module

The Schneider TSXDSY08R5 is a discrete output module designed for integration into Modicon automation systems. It handles both 12-24 VDC and 24-240 VAC inputs, ensuring versatile performance for different control applications. This module provides 8 outputs, including normally open (N/O) connections with screw terminal blocks, which simplifies the integration process.

Key Features and Specifications

Feature	Specification
Model	Schneider TSXDSY08R5
Product Type	Discrete Output Module
Product Line	Modicon
Part Number	TSXDSY08R5
Output Type	Discrete outputs (N/O)
Output Capacity	3 AMP
Voltage Range	12-24 VDC / 24-240 VAC
Number of Outputs	8 Outputs
Connections	Screw Terminal Block
Temperature Range	-25 to 70°C
Protection Rating	IP20
Replaced By	BXMDRA0805
Operating Humidity	5 to 95%, Non-condensing
Mounting Type	DIN Rail Mount

Designed for Versatile Applications

The Schneider TSXDSY08R5 offers flexibility, supporting both 12-24 VDC and 24-240 VAC inputs. This adaptability ensures seamless integration into various systems, from simple applications to complex industrial controls. With 8 outputs, it supports a wide range of external devices, such as valves, solenoids, and lights.

High Performance in Harsh Environments

The TSXDSY08R5 performs well within a temperature range of -25°C to 70°C. This feature allows it to operate reliably in challenging environments. With an IP20 protection rating, it resists dust and foreign objects, providing long-lasting reliability. The screw terminal block connection method makes installation straightforward, enabling easy integration into different control systems.

Efficient Integration and Easy Mounting

Thanks to its DIN rail mounting design, the Schneider TSXDSY08R5 integrates easily into your control panel. The module is perfect for applications that require a flexible, reliable, and cost-effective output solution. It can handle a variety of industrial tasks while ensuring efficient and safe operation.
