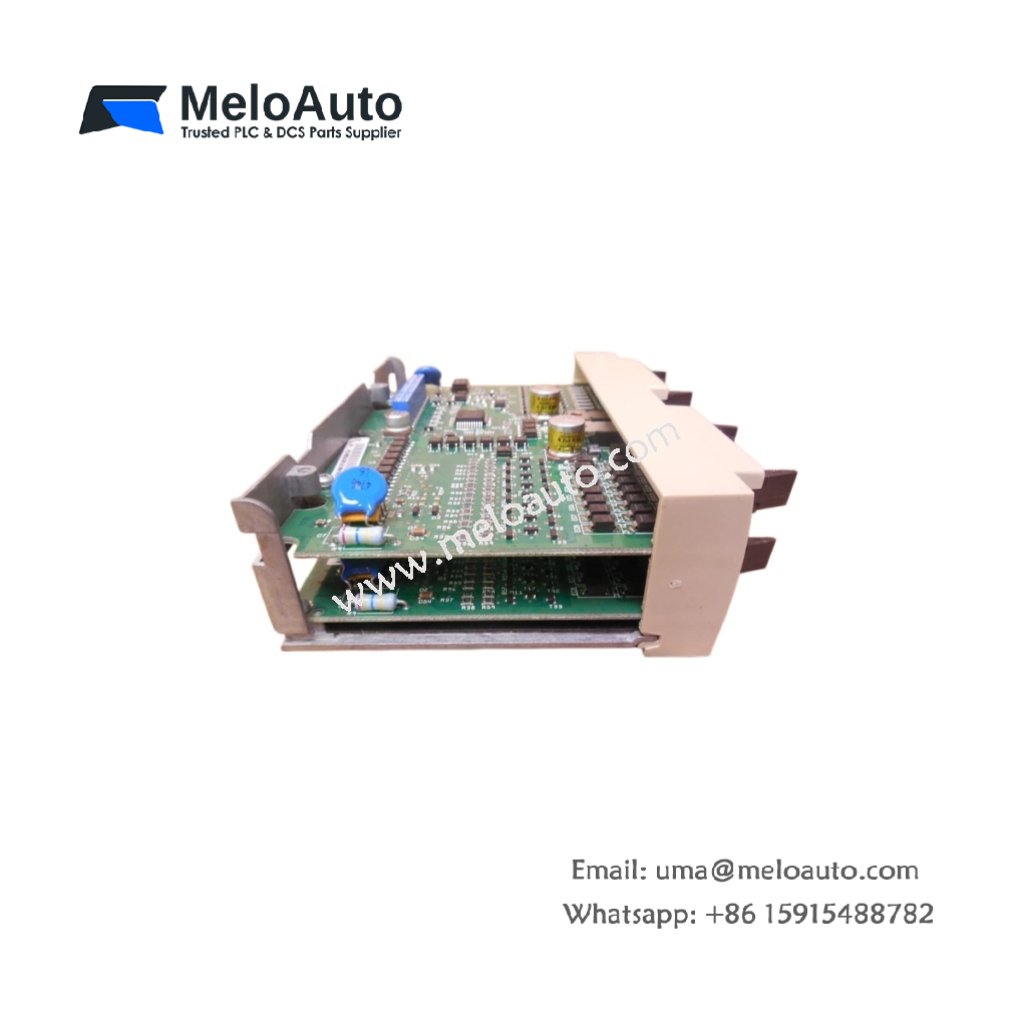

Schneider TSXDMZ64DTK Modicon TSX Micro PLC I/O Module

Overview

The Schneider TSXDMZ64DTK Modicon TSX Micro PLC I/O Module delivers high performance and reliable communication for industrial automation systems. Designed specifically for the Modicon TSX Micro PLC series, it offers robust specifications, flexibility, and efficient integration. This module is ideal for applications requiring fast data processing and dependable I/O management.

With its compact size and powerful capabilities, the TSXDMZ64DTK ensures seamless control of up to 64 digital I/O points. Whether you’re working in manufacturing, energy management, or infrastructure automation, this module can meet your needs.

Key Technical Specifications

Here’s a closer look at the Schneider TSXDMZ64DTK Modicon TSX Micro PLC I/O Module specifications:

Specification	Details
Model Number	TSXDMZ64DTK
Series	Modicon TSX Micro PLC
Dimensions (W x H x D)	90 mm x 110 mm x 65 mm
Weight	0.35 kg
I/O Points	64 Digital I/O (32 Inputs / 32 Outputs)
Operating Voltage	24 V DC ± 10%
Power Consumption	1.5 W
Communication Interface	Modbus RTU, Serial (RS232/RS485)
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 85°C
Mounting Type	DIN Rail Mount

Features of the TSXDMZ64DTK I/O Module

Large I/O Capacity: The TSXDMZ64DTK module supports up to 64 digital I/O points, including 32 inputs and 32 outputs. This large capacity ensures it can handle a wide variety of automation tasks.
Compact and Space-Saving: With dimensions of 90 mm x 110 mm x 65 mm, the TSXDMZ64DTK module is designed for installation in tight spaces without sacrificing performance.
Energy Efficiency: The TSXDMZ64DTK consumes only 1.5 W of power, making it highly energy-efficient while still delivering optimal performance.
Versatile Communication: Featuring Modbus RTU protocol, this module supports RS232 and RS485 serial communication, allowing for easy integration into existing industrial networks.
Wide Operating Temperature Range: The module operates efficiently between -20°C and 60°C, making it ideal for harsh industrial environments.
Easy Installation: Designed for DIN rail mounting, the module simplifies installation, ensuring a secure and stable setup in industrial control panels.

Applications of the TSXDMZ64DTK I/O Module

The Schneider TSXDMZ64DTK Modicon TSX Micro PLC I/O Module is well-suited for a wide range of industrial applications:

Manufacturing Automation: It ensures precise control and monitoring of production lines, helping to boost efficiency and reduce downtime.
Energy Management Systems: Use it for optimizing power distribution and monitoring energy usage across systems.
Infrastructure Automation: Control HVAC systems, lighting, and other critical infrastructure components with ease.

Why Choose the TSXDMZ64DTK Module?

The Schneider TSXDMZ64DTK Modicon TSX Micro PLC I/O Module provides a perfect blend of performance and versatility. It supports high-speed data processing and offers excellent communication options. Additionally, its energy efficiency and compact design make it ideal for various industrial automation applications. By choosing the TSXDMZ64DTK, you ensure a reliable and effective solution for your automation needs.
