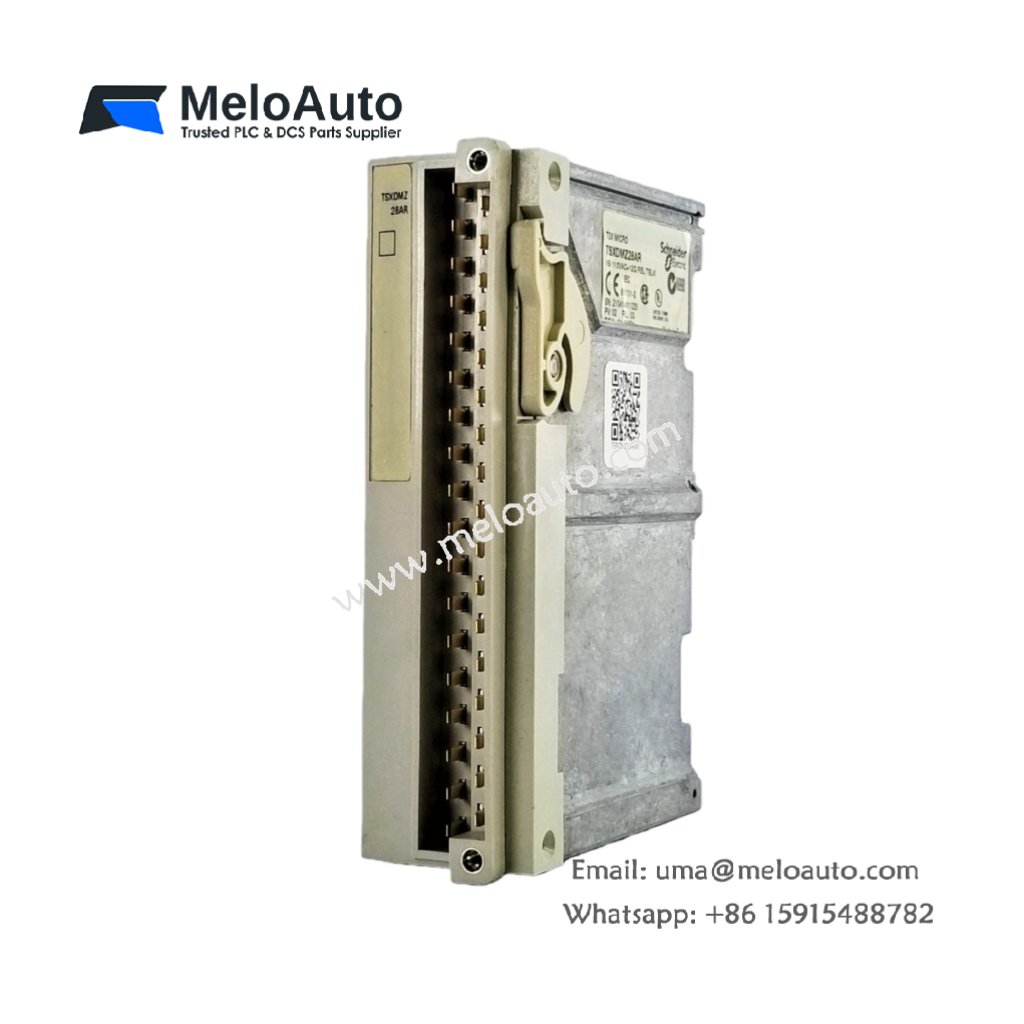

Schneider TSXDMZ28AR 28 I/O Relay Module

Overview of the TSXDMZ28AR Relay Module

The Schneider Electric TSXDMZ28AR is a 28 I/O 100-120V relay module designed for precise control in industrial automation systems. This module features 16 discrete input channels, offering superior flexibility and reliability for various applications. It handles input voltages from 100V to 120V AC, ensuring compatibility with a wide range of devices and systems.

Key Features of the TSXDMZ28AR

Manufacturer: Schneider Electric
Product Type: 28 I/O Relay Module
Part Number: TSXDMZ28AR
Discrete Input Channels: 16
Input Voltage: 100-120V AC
Discrete Input Frequency: 47-63 Hz
Current Consumption: 125 mA
Output Voltage: 19-264 V AC, 10-34 V DC
Rated Supply Voltage: 50 VA (24 V AC-12 resistive), 110 VA (48 V AC-12 resistive)
Contact Type: Normally Open (NO)
Response Time:
- Output: < 10 ms
- Input (state 0 to state 1 at 50 Hz): 11…18 ms
- Input (state 0 to state 1 at 60 Hz): 9…16 ms
- Input (state 1 to state 0 at 50 Hz): 11…24 ms
- Input (state 1 to state 0 at 60 Hz): 10…22 ms

The TSXDMZ28AR module offers high flexibility, with an input compatibility for 2-wire proximity sensors. It supports a capacitive load type, making it suitable for various sensor types in industrial applications. Its input voltage limits range from 74V (state 1) to <20V (state 0), offering wide input tolerance for enhanced operational stability.

Technical Specifications

Parameter	Value
Manufacturer	Schneider Electric
Product Type	28 I/O Relay Module
Part Number	TSXDMZ28AR
Discrete Input Channels	16
Input Voltage	100-120V AC
Discrete Input Frequency	47-63 Hz
Input Current	11 mA (state 0), 13 mA (state 1)
Input Voltage Limits	>= 74V (state 1), < 20V (state 0)
Input Impedance	State 0: <= 4 mA, State 1: >= 6 mA
Response Time (Output)	< 10 ms
Response Time (Input)	11…18 ms (state 0 to state 1 at 50 Hz)
	9…16 ms (state 0 to state 1 at 60 Hz)
	11…24 ms (state 1 to state 0 at 50 Hz)
	10…22 ms (state 1 to state 0 at 60 Hz)
Input Compatibility	2-wire proximity sensor
Load Type	Capacitive
Current Consumption	125 mA
Output Voltage Limits	19…264 V AC, 10…34 V DC
Contact Type	Normally Open (NO)
Rated Supply Voltage	50 VA (24 V AC-12 resistive), 110 VA (48 V AC-12 resistive)
Insulation Resistance	>= 10 MOhm
Duration	1500 V for 1 second

Performance and Precision

The TSXDMZ28AR module ensures high-speed response with an output time of less than 10 ms and fast input transitions. It efficiently manages a wide input voltage range and operates reliably within the specified frequency range of 47-63 Hz. With capacitive load support, it ensures the proper functioning of various devices, including sensors, across industrial environments.

Robust Industrial Use

The Schneider Electric TSXDMZ28AR is engineered to withstand the demanding conditions typical of industrial environments. With insulation resistance of >= 10 MOhm and a voltage withstand rating of 1500 V for 1 second, it provides reliable protection against electrical surges. This module is perfect for systems that require high voltage tolerance and precise control of discrete inputs and outputs.

Ideal Applications

The TSXDMZ28AR relay module is ideal for applications in automation systems where precise control and high reliability are essential. Common uses include machine control, material handling, and other industrial systems requiring high-speed input and output operations. It is particularly suited for applications requiring capacitive load management and fast-response relay modules.
