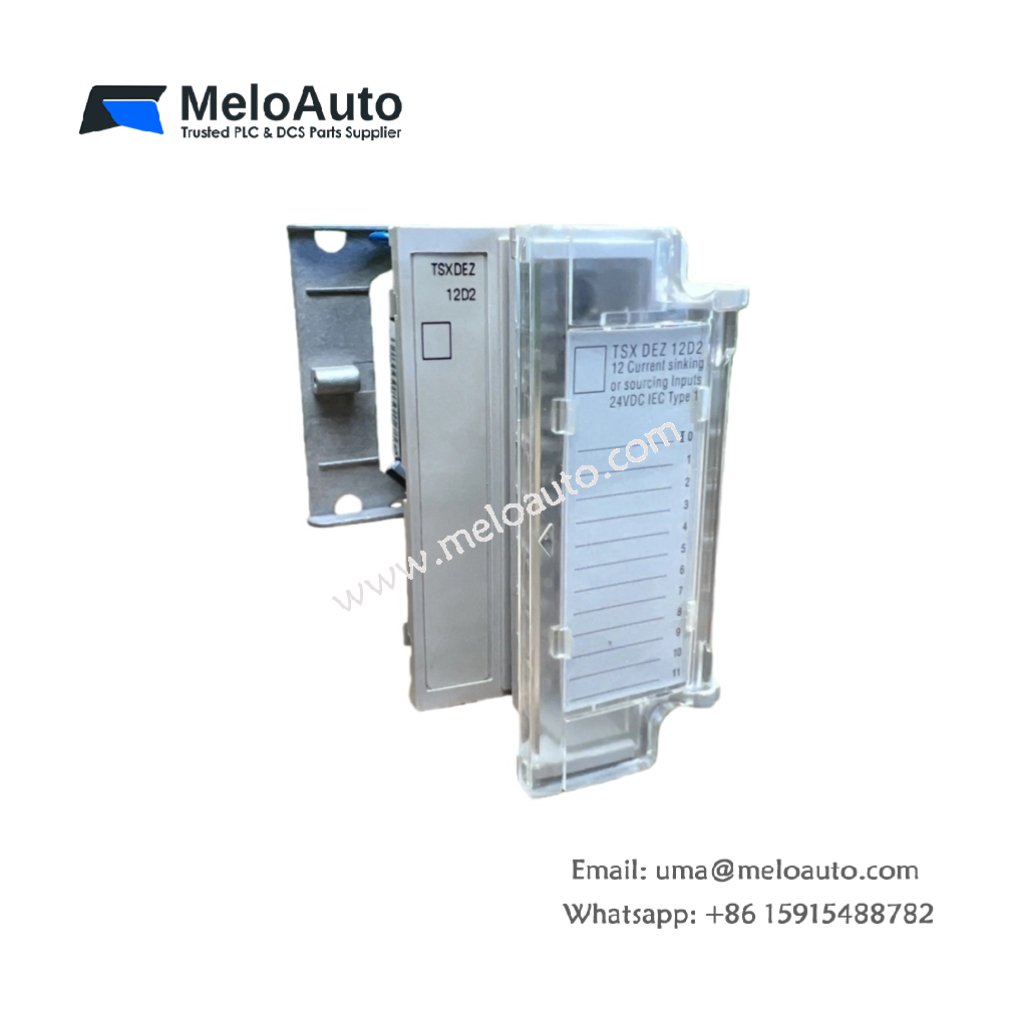

Schneider TSXDEZ12D2 Discrete Input Module

Overview

The Schneider TSXDEZ12D2 is a highly efficient discrete input module designed for the Modicon TSX Micro automation platform. This model is specifically engineered to support 12 resistive inputs compatible with 2/3-wire proximity sensors (PNP/NPN). It is an ideal choice for industrial control environments that require reliable discrete input signals.

Featuring a robust design, the TSXDEZ12D2 offers exceptional performance with 24V DC input voltage and supports both positive and negative logic. Its fast response time, along with high isolation voltage, ensures superior performance in a wide range of applications.

Key Features

Manufacturer: Schneider Electric
Product Type: Discrete Input Module
Product Line: Modicon TSX Micro
Part Number: TSXDEZ12D2
Number of Inputs: 12
Input Voltage: 24V DC (supports positive or negative logic)
Voltage Range: 19V to 30V DC
Input Current: 9 mA
Input Impedance: 2.4 kΩ
Response Time: 0.1 to 7.5 ms (both 0->1 and 1->0 transitions)
Input Voltage Limits:
- State 1: ≥11V
- State 0: <5V
Current State Guarantees:
- State 0: <1.5 mA
- State 1: >2.5 mA
Isolation Voltage: 1500V AC for 1 second
Input Compatibility: Supports 2/3-wire PNP and NPN proximity sensors
Discrete Input Type: Resistive
Compliance: Conforms to IEC 1131-2 Type 1 standards

Technical Specifications

Specification	Details
Model Number	TSXDEZ12D2
Manufacturer	Schneider Electric
Product Type	Discrete Input Module
Product Line	Modicon TSX Micro
Number of Inputs	12
Input Voltage	24V DC
Voltage Range	19V to 30V DC
Input Current	9 mA
Input Impedance	2.4 kΩ
Response Time (0->1)	0.1 ms
Response Time (1->0)	7.5 ms
Input Voltage (State 1)	≥11V
Input Voltage (State 0)	<5V
Current State (State 0)	<1.5 mA
Current State (State 1)	>2.5 mA
Isolation Voltage	1500V AC for 1 second
Input Compatibility	2/3-wire PNP/NPN Proximity Sensors
Discrete Input Type	Resistive
Standards Compliance	IEC 1131-2 Type 1

Description

The Schneider TSXDEZ12D2 is a versatile discrete input module tailored for the Modicon TSX Micro automation platform. It delivers reliable, high-performance input handling for up to 12 discrete inputs. With an operating voltage of 24V DC, it is compatible with 2/3-wire PNP and NPN proximity sensors, offering excellent flexibility for industrial control systems.

This module features a wide voltage range of 19V to 30V DC, making it suitable for various voltage levels commonly found in industrial environments. The module ensures precise input states with clear guarantees for both State 1 (≥11V) and State 0 (<5V). The input current for each channel is 9 mA, providing efficient power usage.

The response time of the TSXDEZ12D2 is highly responsive, with 0.1 ms for transitions from 0->1 and 7.5 ms for transitions from 1->0. This feature is particularly beneficial for high-speed industrial applications. Additionally, the module features 1500V AC isolation voltage, which protects against electrical surges, making it ideal for sensitive equipment.

The TSXDEZ12D2 module conforms to IEC 1131-2 Type 1 standards, ensuring industry-grade reliability and compliance. Its resistive discrete input type guarantees accurate signal processing, contributing to the system’s overall performance and stability.

Why Choose the Schneider TSXDEZ12D2?

Reliable Performance: Handles up to 12 discrete inputs with 24V DC voltage for accurate control.
Fast Response: With 0.1 ms (0->1) and 7.5 ms (1->0) response times, it meets real-time demands.
High Protection: The 1500V AC isolation voltage ensures protection from electrical surges.
Flexible Compatibility: Works seamlessly with 2/3-wire PNP/NPN proximity sensors.
Industry Compliance: Meets IEC 1131-2 Type 1 standards for reliability.
