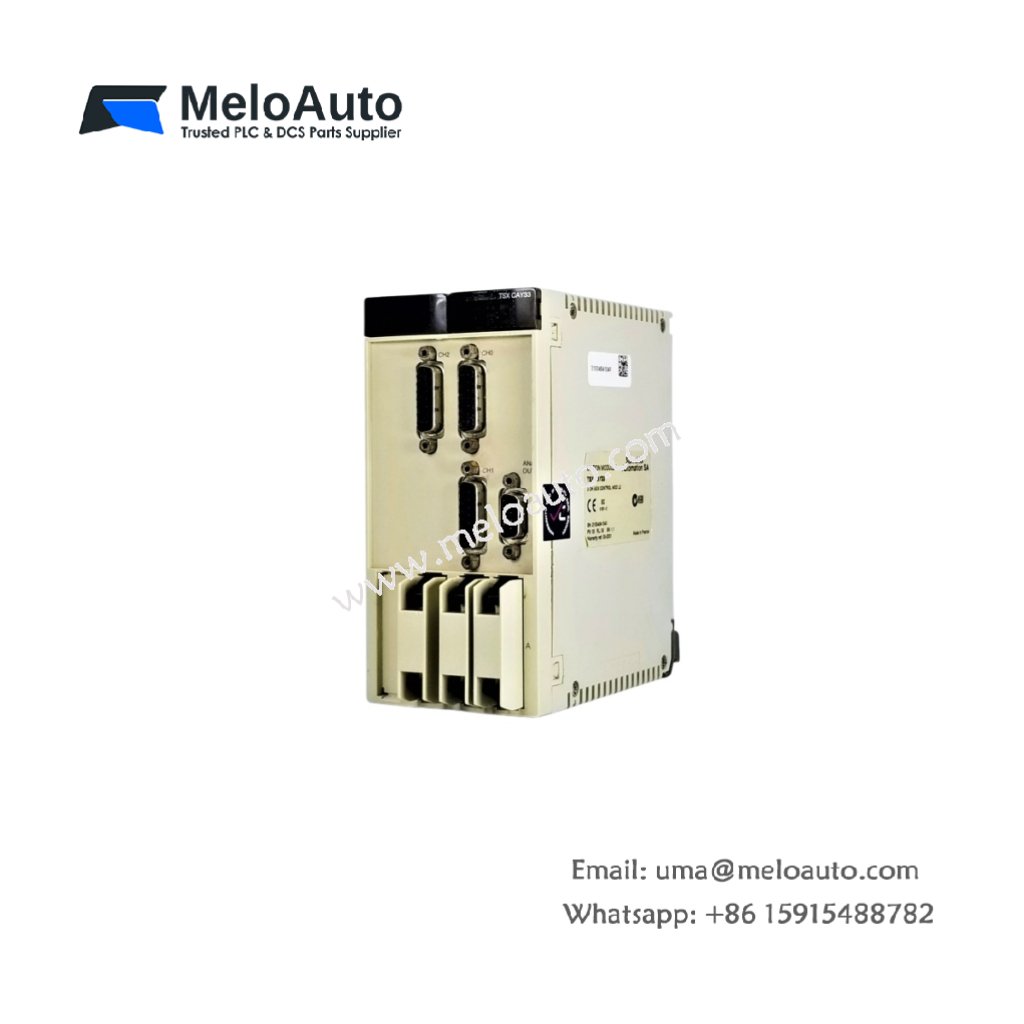

Schneider TSXCAY33 Axis Control Module

Overview of the Schneider TSXCAY33 Axis Control Module

The Schneider TSXCAY33 Axis Control Module is specifically designed to deliver precise and reliable motion control in industrial automation systems. By providing seamless integration with Schneider Electric’s automation solutions, it ensures high-performance control of multi-axis systems, making it an ideal choice for demanding applications.

This module is capable of controlling up to 3 axes with high precision. It uses EtherCAT communication for real-time, high-speed data transfer. As a result, the TSXCAY33 is perfect for use in robotics, CNC machines, and automated manufacturing systems, offering flexibility and efficiency.

Key Technical Specifications

Here is a detailed look at the technical specifications of the Schneider TSXCAY33 Axis Control Module:

Specification	Details
Model Number	TSXCAY33
Product Type	Axis Control Module
Weight	0.5 kg (1.1 lbs)
Module Type	Motion Control
Number of Axes	3 Axes (expandable)
Control Interface	EtherCAT
Mounting Type	DIN Rail Mount
Operating Voltage	24 V DC
Current Consumption	0.8 A
Temperature Range	-10°C to 60°C
Protection Class	IP20
Dimensions (W x H x D)	120 mm x 100 mm x 70 mm
RoHS Compliant	Yes

Features of the TSXCAY33 Axis Control Module

Reliable Multi-Axis Control: The TSXCAY33 can control up to 3 axes, making it perfect for multi-axis operations. It provides precise control for applications like robotics, CNC machines, and material handling systems.
Real-Time Communication: Equipped with EtherCAT communication, the module ensures high-speed, real-time data exchange. Consequently, it enables fast and accurate motion control, which is critical in industrial applications.
Energy Efficient: With a 0.8 A current consumption, the TSXCAY33 offers efficient power usage. This reduces energy consumption without compromising performance.
Compact and Durable: Measuring 120 mm x 100 mm x 70 mm and weighing just 0.5 kg, the module is compact and easy to integrate into control panels. It also features IP20 protection, ensuring durability in controlled industrial environments.
Wide Operating Temperature Range: The module operates effectively within a temperature range of -10°C to 60°C, allowing it to perform in both indoor and outdoor industrial settings.
Easy Integration: Designed for DIN rail mounting, the TSXCAY33 is simple to install and compatible with Schneider Electric’s other automation components, ensuring fast deployment.

Applications of the TSXCAY33 Axis Control Module

The Schneider TSXCAY33 Axis Control Module is ideal for several industrial applications, including:

Robotics: The module ensures precise control for robotic arms and other automation equipment, allowing for smooth and accurate operations.
CNC Machines: It supports high-precision motion control in CNC machines, ensuring accurate machining and fabrication.
Manufacturing Automation: The TSXCAY33 plays a key role in automated production lines, coordinating multi-axis systems for tasks such as assembly, sorting, and packaging.
Material Handling: It is perfect for controlling multi-axis conveyors and robotic sorters, improving system efficiency and reducing downtime.

Why Choose the TSXCAY33 Axis Control Module?

The Schneider TSXCAY33 Axis Control Module offers precise motion control, flexible connectivity, and low power consumption. Thanks to its EtherCAT communication, it enables fast and accurate data exchange, improving system performance. Additionally, its energy-efficient design and wide temperature range make it ideal for a variety of industrial applications. Whether for robotics, CNC machines, or manufacturing automation, the TSXCAY33 provides optimal control and performance
