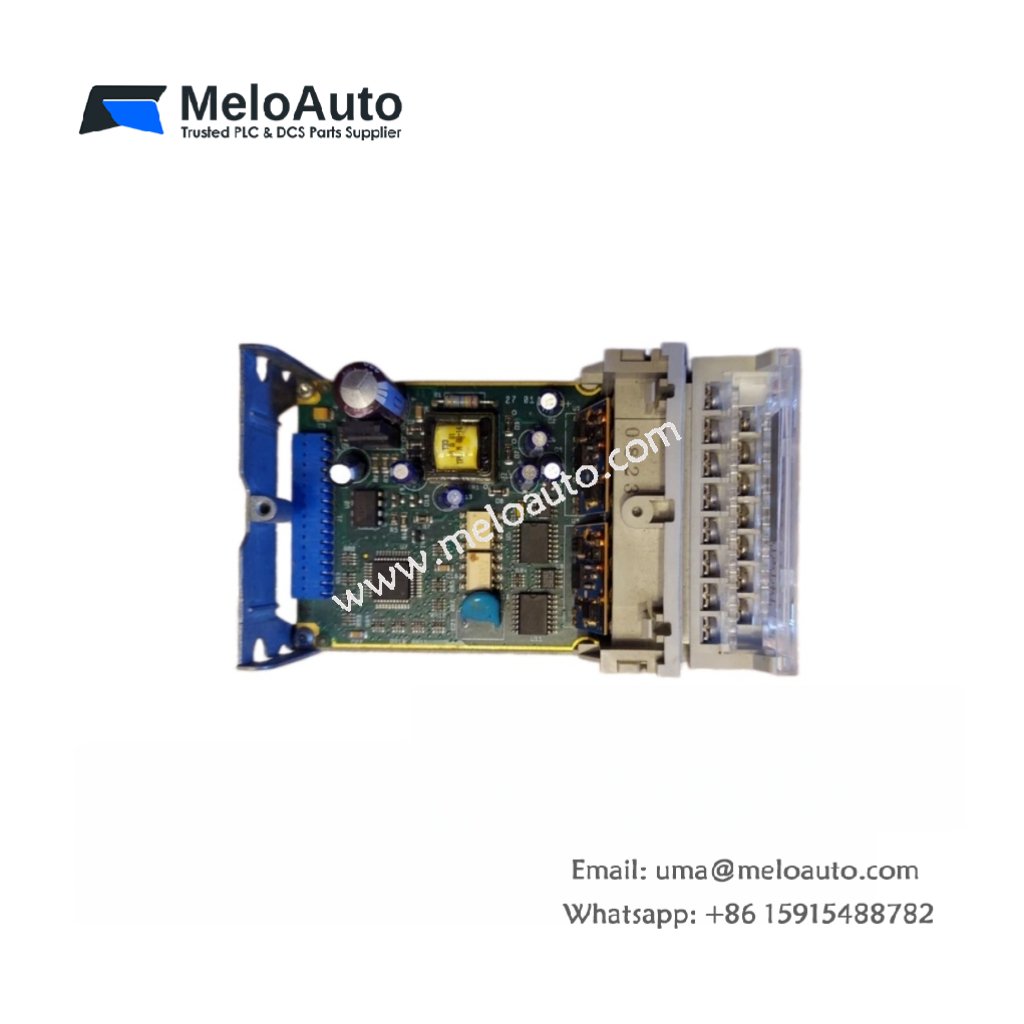

Schneider TSXASZ200 Analog Output Module

Overview

The Schneider TSXASZ200 Analog Output Module delivers precise signal control for industrial automation systems. It supports RMS-TSG-TZ-C series PLCs, enabling reliable process management and modular integration.

Key Features

Provides 2 analogue output channels for voltage or current signal control.
Supports 0–10 V and 4–20 mA outputs for versatile industrial applications.
Compact brick-style design ensures easy installation in PLC racks or control panels.
Compatible with RMS-TSG-TZ-C series PLC modules for scalable automation systems.
Maintains high accuracy and stability across wide industrial operating conditions.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model	TSXASZ200
Series	RMS-TSG-TZ-C
Category	Analog Output Module
Number of Channels	2
Output Type	Voltage / Current
Voltage Range	0–10 V
Current Range	4–20 mA
Resolution	12-bit
Accuracy	±0.5%
Response Time	10 ms typical
Dimensions (HxWxD)	6.0 x 3.2 x 1.8 in (152 x 82 x 46 mm)
Weight	0.55 lb (0.25 kg)
Mounting Type	DIN rail / PLC slot
Operating Temperature	0°C to 60°C
Protection Class	IP20

Applications

Schneider TSXASZ200 is suitable for precise industrial process control:

Driving actuators, valves, and motors with 0–10 V or 4–20 mA signals.
Integrating with RMS-TSG-TZ-C series PLC systems for modular automation.
Supporting industrial measurement, process monitoring, and signal conversion tasks.

Advantages

Ensures accurate analog output with 12-bit resolution and ±0.5% precision.
Simplifies installation with compact form factor compatible with DIN rail mounting.
Maintains reliable operation under standard industrial temperatures and IP20 protection.
