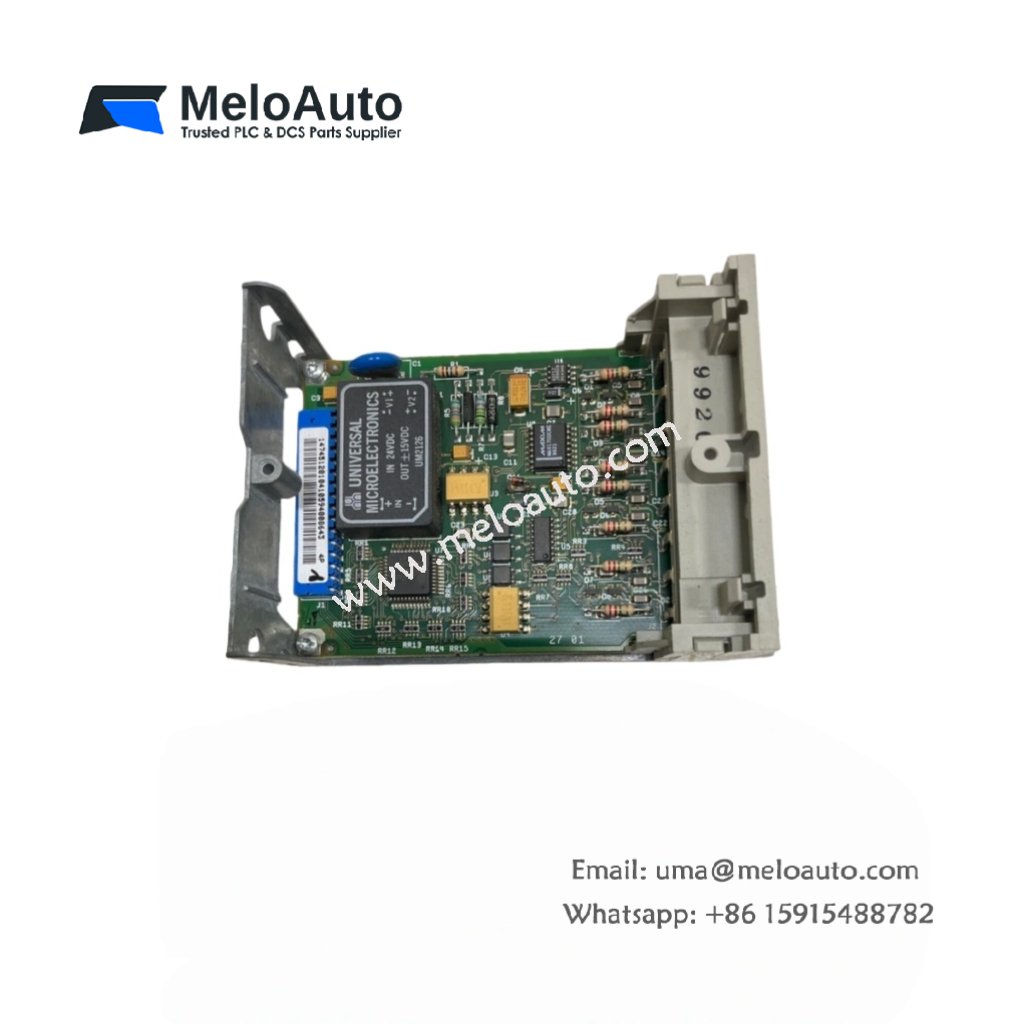

Schneider TSXAEZ801 TSX Micro Analog Input Module

The Schneider TSXAEZ801 is an analog input module from the TSX Micro series, designed for reliable and high-precision data acquisition. This module provides 8 analog input channels that measure within the range of 0 to 10 V. With 11-bit resolution and a fast acquisition period of 32 ms, the TSXAEZ801 delivers excellent performance for various industrial automation applications.

Key Features

Manufacturer: Schneider Electric
Model: TSXAEZ801
Category: TSX Micro Analog Input Module
Number of Channels: 8 analog input channels
Analog Input Type: 0 to 10 V
Conversion Accuracy: 11 bits + sign
Acquisition Period: 32 ms for fast data collection
Temperature Drift: 0.068% per 10°C
Input Impedance: 2.2 Ohms for precise signal measurement
Current Consumption: 60 mA for low power consumption
Isolation Voltage: 1000 V AC for enhanced protection

Technical Specifications

Parameter	Details
Model Number	TSXAEZ801
Product Type	TSX Micro Analog Input Module
Number of Channels	8
Input Voltage Range	0 to 10 V
Analog/Digital Conversion	11 bits + sign
Acquisition Period	32 ms
Temperature Drift	0.068 %/10°C
Input Impedance	2.2 Ohms
Current Consumption	60 mA
Isolation Voltage	1000 V AC

Key Benefits of the Schneider TSXAEZ801

The TSXAEZ801 module is engineered to provide high accuracy and reliability in industrial automation systems. It is ideal for applications that require fast and precise analog input readings, such as process control and data monitoring.

Fast Data Acquisition: With a 32 ms acquisition period, the module ensures quick response times in dynamic systems.
Accurate Conversion: The TSXAEZ801 features an 11-bit resolution, offering high precision for accurate signal measurement.
Enhanced Isolation: With an isolation voltage of 1000 V AC, this module protects against electrical surges and enhances system safety.
Low Power Consumption: The 60 mA current consumption allows for efficient operation, reducing the overall power usage in the system.

Applications of the Schneider TSXAEZ801

The TSXAEZ801 is perfect for applications that require precise analog measurements and rapid data acquisition. It is widely used in:

Process Control: To monitor and control various process variables such as temperature, pressure, and flow.
Machine Automation: Used in manufacturing environments to provide accurate readings from sensors and transmit them to the central controller.
Energy Management: Monitors voltage and current levels in energy systems for efficiency and safety.
Testing and Measurement: Used in testing setups to record real-time data from various devices.

Why Choose the Schneider TSXAEZ801?

High Precision: With 11-bit resolution and a 0.068% temperature drift, it ensures accurate data measurement even in challenging environments.
Fast and Efficient: The 32 ms acquisition period makes it ideal for real-time control and fast decision-making.
Enhanced Durability: Its isolation voltage of 1000 V AC provides extra protection in harsh electrical environments, improving the longevity of the system.

The Schneider TSXAEZ801 is a reliable and accurate module designed to meet the needs of modern industrial systems. It ensures fast, precise analog measurements, making it an essential component for applications that require high performance.
