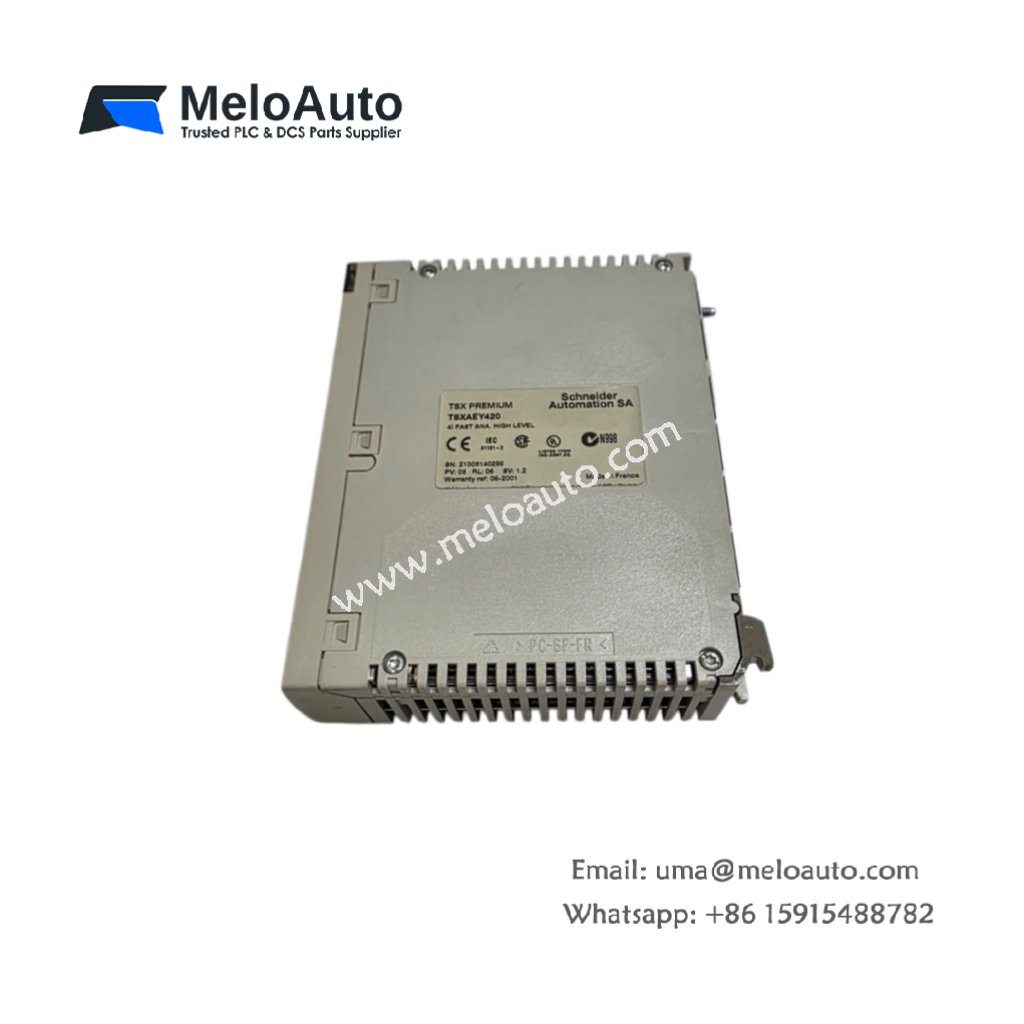

Schneider TSXAEY420 - 4-Channel Analog Input Module

The Schneider TSXAEY420 is a high-performance 4-channel analog input module specifically designed for the Modicon TSX automation platform. This module allows seamless integration with Modicon TSX systems, offering fast analog signal processing for industrial control and automation tasks. It is engineered to handle a variety of input signals, making it highly versatile for a range of applications.

Key Features of the Schneider TSXAEY420 Analog Input Module

Manufacturer: Schneider Electric
Part Number: TSXAEY420
Product Type: Analog Input Module
Compatibility: Modicon TSX Series
Channels: 4 channels
Signal Range: 4-20 mA, 0-10 V, 0-5 V, 1-5 V, +/-10 V
Resolution: 16-bit
Current Range: 0.20 mA
Performance: Fast analog signal processing
Installation: DIN rail mountable

The Schneider TSXAEY420 module supports a wide range of analog input signals, offering flexibility and reliability in controlling industrial processes. It provides 16-bit resolution for accurate readings, ensuring high precision in applications that demand fast analog signal processing.

Technical Specifications

Specification	Details
Part Number	TSXAEY420
Manufacturer	Schneider Electric
Product Type	Analog Input Module
Series	Modicon TSX
Channels	4 Channels
Signal Range	4-20 mA, 0-10 V, 0-5 V, 1-5 V, +/-10 V
Resolution	16-bit
Current Range	0.20 mA
Mounting Type	DIN Rail Mount
Input Signal Type	Analog Input
Processing Speed	Fast Analog Processing
Operating Temperature	0°C to 60°C
Weight	Approx. 0.3 kg
Dimensions	95mm x 72mm x 58mm
Power Supply	24V DC

Why Choose the Schneider TSXAEY420 Analog Input Module?

The Schneider TSXAEY420 is an essential component for industrial automation systems that require precise analog signal processing. With its 16-bit resolution and multiple input signal options, it ensures accurate and reliable performance. Its versatility in supporting various input ranges, such as 4-20 mA, 0-10 V, 1-5 V, and +/-10 V, makes it suitable for various automation tasks.

Moreover, its fast analog processing speed enables real-time signal conversion, improving system performance. The module is also easy to install on DIN rails, making it a convenient solution for a variety of industrial control systems.

Applications

Industrial Automation: Ideal for use in automated control systems that require precise analog input signal processing.
Process Control: Perfect for applications where real-time monitoring and control of analog variables are essential.
Building Automation: Can be used for HVAC systems, energy management, and other building automation tasks.
Measurement Systems: Suitable for high-precision measurement and data acquisition systems.

Conclusion

The Schneider TSXAEY420 is a robust and reliable 4-channel analog input module designed for the Modicon TSX automation platform. With its high resolution, flexible input signal ranges, and fast processing capabilities, it offers a powerful solution for a wide range of industrial automation and control applications. Its ease of installation and compatibility with Modicon TSX systems make it an ideal choice for both new installations and upgrades to existing automation systems.
