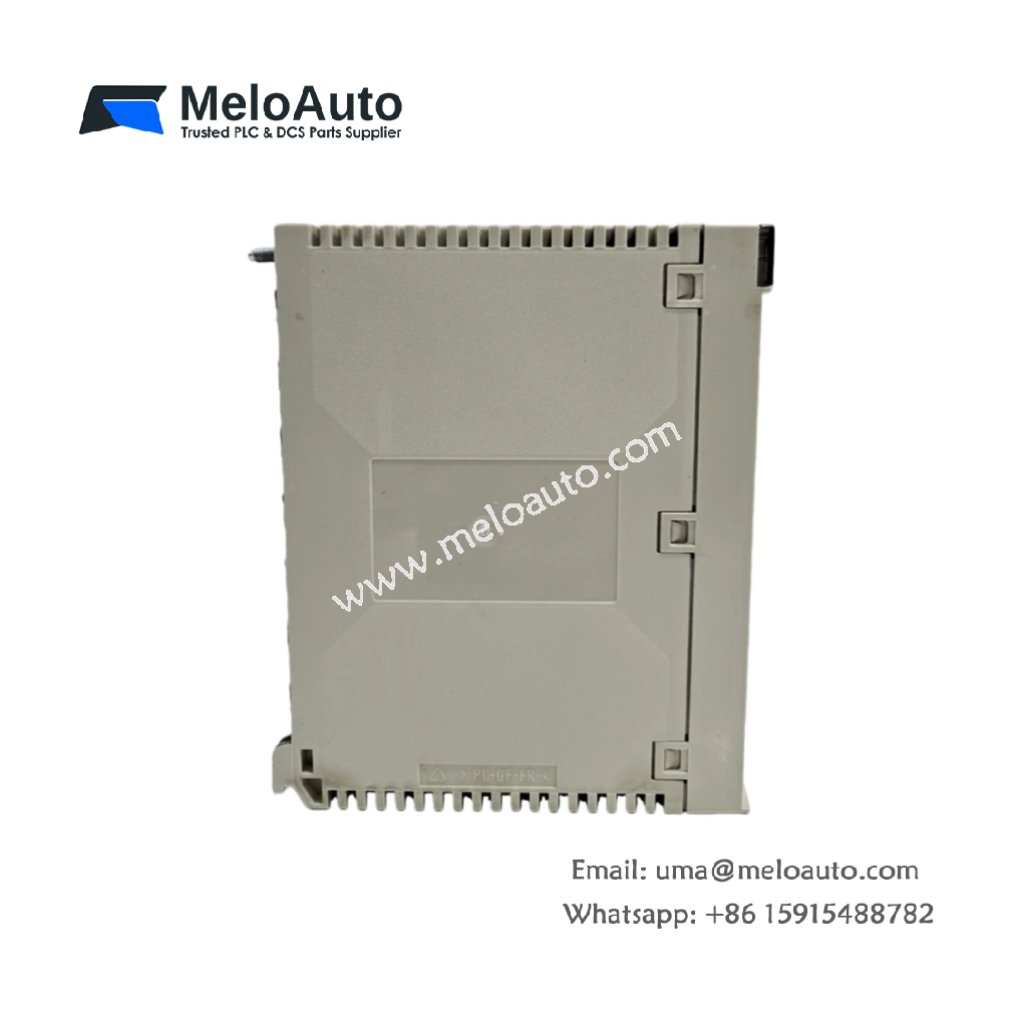

Schneider TSXAEY1614 16-Channel Thermocouple Input Module

Overview of the Schneider TSXAEY1614 Analog Input Module

The Schneider TSXAEY1614 is a high-density analog input module designed for precise temperature measurement in industrial control systems. Part of the Modicon Premium automation platform, it offers 16 thermocouple input channels, making it ideal for applications that require accurate, real-time temperature data. Whether you’re measuring temperatures across various processes or managing environmental conditions, this module provides the reliability and performance your system demands.

Key Features of the Schneider TSXAEY1614

16 Thermocouple Input Channels: The module supports up to 16 input channels, enabling the measurement of multiple temperature points simultaneously.
Wide Thermocouple Compatibility: It supports various thermocouple types including B, E, J, K, L, N, R, S, T, and U, ensuring compatibility with different temperature sensors.
High Conversion Resolution: With 16-bit resolution, the module ensures precise conversion of temperature data for accurate measurements.
Fast Read Cycle: Each channel has a 70 ms read cycle time, ensuring quick and efficient data acquisition.
Low Measurement Error: Typical errors range from +0.8°C to +2.5°C depending on the thermocouple type, providing reliable temperature measurement in industrial environments.
Excellent Isolation: The TSXAEY1614 features 1000 Vrms isolation both between channels and to the ground, enhancing system reliability and reducing interference.

Technical Specifications

Feature	Specification
Model	Schneider TSXAEY1614
Input Channels	16 Thermocouple Inputs
Input Types	Thermocouples (Types B, E, J, K, L, N, R, S, T, U)
Voltage Range	+80 mV
Conversion Resolution	16-bit
Read Cycle Time	70 ms per channel
Measurement Error (at 25 °C)	E: +0.8°C, J/L: +0.9°C, K/T/U: +1.0°C, N: +1.1°C, R: +2.1°C, S: +2.2°C, B: +2.5°C
Isolation	Channel-to-bus: 1000 Vrms, Channel-to-ground: 1000 Vrms
Common Mode Limits	Between channels: 250-280 V AC, To earth: 250 V DC
Overvoltage Protection	+15 V at state 0, +30 V at state 1
Electrical Connection	2 x SUB-D 25-pin connectors
Current Consumption	300 mA @ 5 V DC
Module Format	Standard rack-mount
Weight	0.35 kg
Certifications	CE, ABS, BV, DNV, GL, LR, RINA, RMRSE
Operating Temp	0 to 60 °C
Storage Temp	-25 to 70 °C
Humidity	10-95% (non-condensing)
Altitude	0-2000 m
Protection	IP20, Pollution Degree 2
Standards	IEC 1131, IEC 584, IEC 751, DIN 43710/43760, NFC 42-330

Application and Compatibility

The Schneider TSXAEY1614 is specifically designed for use within the Modicon Premium automation platform. It integrates seamlessly into industrial control systems that require high-precision temperature measurements. Its 16-channel configuration and broad thermocouple support make it ideal for applications ranging from process control to environmental monitoring. Additionally, the high isolation and fast read cycle ensure reliable, interference-free performance even in demanding industrial environments.

Why Choose the Schneider TSXAEY1614 Analog Input Module?

The Schneider TSXAEY1614 is an essential component for any industrial control system that requires accurate, real-time temperature monitoring. Its wide thermocouple compatibility, high resolution, and low measurement error ensure precise data collection. Additionally, its standard rack-mount format and robust environmental ratings make it suitable for various industrial conditions. Whether you need to monitor temperature for a process, machinery, or environment, the TSXAEY1614 provides the accuracy and reliability you need.
